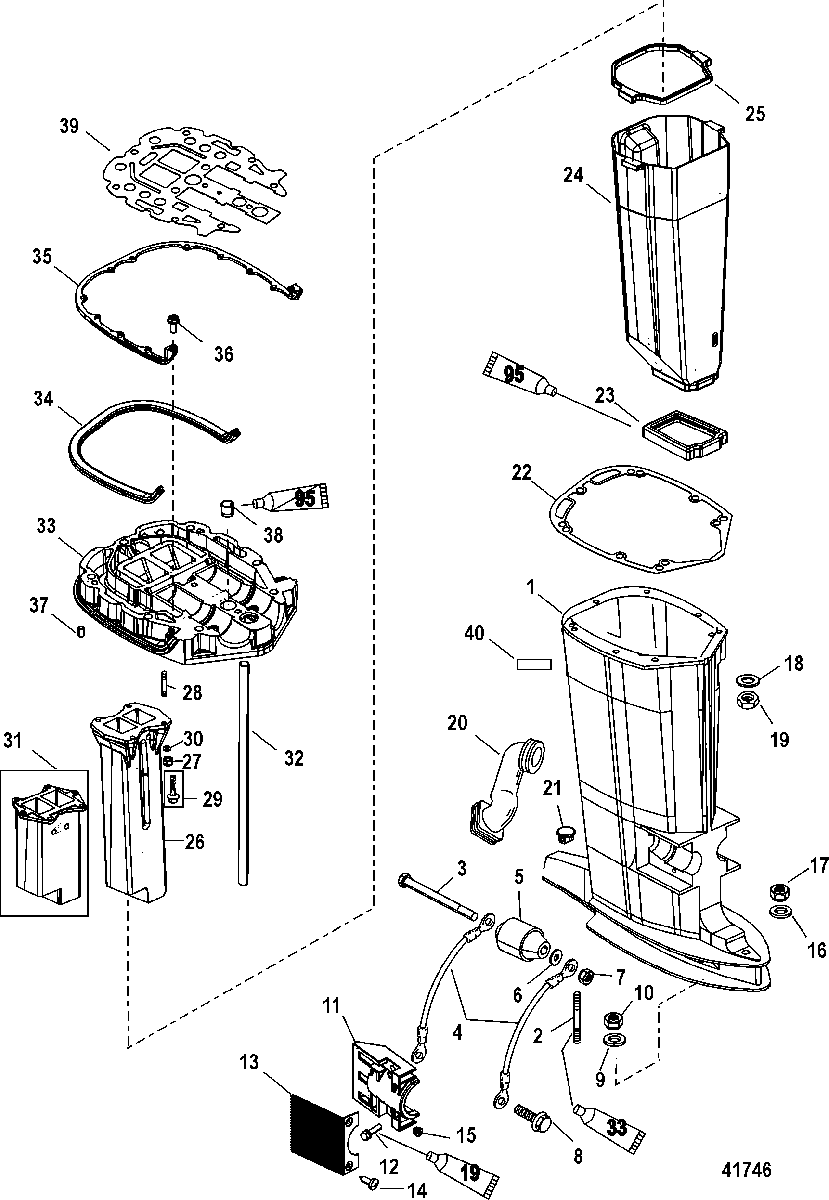

Driveshaft Housing and Exhaust Tube для Mariner - V-175 DFI (2.5L) 1B417702 & Up
-
№АртикулНазвание
-
11590-8343T10 HOUSING ASSEMBLY, Driveshaft - Black - LongHOUSING ASSEMBLY, Driveshaft - Black - Long
-
13503-813563T1 HOUSING, Driveshaft - Black - X-LongHOUSING, Driveshaft - Black - X-Long
-
216-56295 STUD, (.437 x 2.69)STUD, (.437 x 2.69)
-
310-898831 SCREW, (.500-20 x 6.220)SCREW, (.500-20 x 6.220)
-
488238A10 CABLE ASSEMBLY, GroundCABLE ASSEMBLY, Ground
-
577327 MOUNT, LowerMOUNT, Lower
-
612-49339 WASHER, (.8125)WASHER, (.8125)
-
711-898832 NUT, (.500-20)NUT, (.500-20)
-
810-41508 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
912-45176 WASHER, (.453 x .812 x .105) Stainless SteelWASHER, (.453 x .812 x .105) Stainless Steel
-
1011-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
1154-8M0036782 CLAMPCLAMP
-
1210-66727 SCREW, (.312-18 x 1.250)SCREW, (.312-18 x 1.250)
-
13100-8M4500752 COVERCOVER
-
1410-88417 SCREW, (#12-24 x .620)SCREW, (#12-24 x .620)
-
1511-35521 NUTNUT
-
1612-48926 WASHERWASHER
-
1711-34933 NUT, (.437-20) Stainless SteelNUT, (.437-20) Stainless Steel
-
1812-20553 WASHER, (.406 x .734 x .063)WASHER, (.406 x .734 x .063)
-
1911-69254 NUTNUT
-
208M0039081 BOOT, Idle ExhaustBOOT, Idle Exhaust
-
2119-64649 PLUGPLUG
-
2227-991734 GASKETGASKET
-
2366350001 SEAL, LowerSEAL, Lower
-
2418276T TUBE, ExhaustTUBE, Exhaust
-
258M0039076 SEAL, UpperSEAL, Upper
-
26812834A2 EXTENSION ASSEMBLY, Exhaust
150 HorsepowerEXTENSION ASSEMBLY, Exhaust
150 Horsepower -
26812834A2 EXTENSION ASSEMBLY, Exhaust
175 HorsepowerEXTENSION ASSEMBLY, Exhaust
175 Horsepower -
2711-888500 NUT
SN# 1B776450 & BelowNUT
SN# 1B776450 & Below -
2816-56766 STUD, (.250 x 1.38)
Design-I SN# 1B776450 & BelowSTUD, (.250 x 1.38)
Design-I SN# 1B776450 & Below -
2910-8M0030694 SCREW, (0.25-20 x 1.00)
Design-II SN# 1B776451 & UpSCREW, (0.25-20 x 1.00)
Design-II SN# 1B776451 & Up -
2910-8M0047146 SCREW, (0.25-20 x 1.50)
Design-IIISCREW, (0.25-20 x 1.50)
Design-III -
3012-35044 WASHER, (.281 x .625 x .065) Stainless Steel
Design-I and Design-IIIWASHER, (.281 x .625 x .065) Stainless Steel
Design-I and Design-III -
31879288T71 EXTENSION, Exhaust
135 HorsepowerEXTENSION, Exhaust
135 Horsepower -
3232-8M0042788 TUBE, Water
LongTUBE, Water
Long -
3232-8M0042790 TUBE, Water
X-LongTUBE, Water
X-Long -
3318233A20 PLATE ASSEMBLY, Driveshaft HousingPLATE ASSEMBLY, Driveshaft Housing
-
348M0043165 SEALSEAL
-
3568011 BRACKETBRACKET
-
3610-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
3717-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
3826-38970 SEALSEAL
-
3927-183076 GASKETGASKET
-
40NSS NOT SOLD SEPARATE, Decal-Counter RotationNOT SOLD SEPARATE, Decal-Counter Rotation
-
-27-8M0046714 GASKET SET, EngineGASKET SET, Engine
