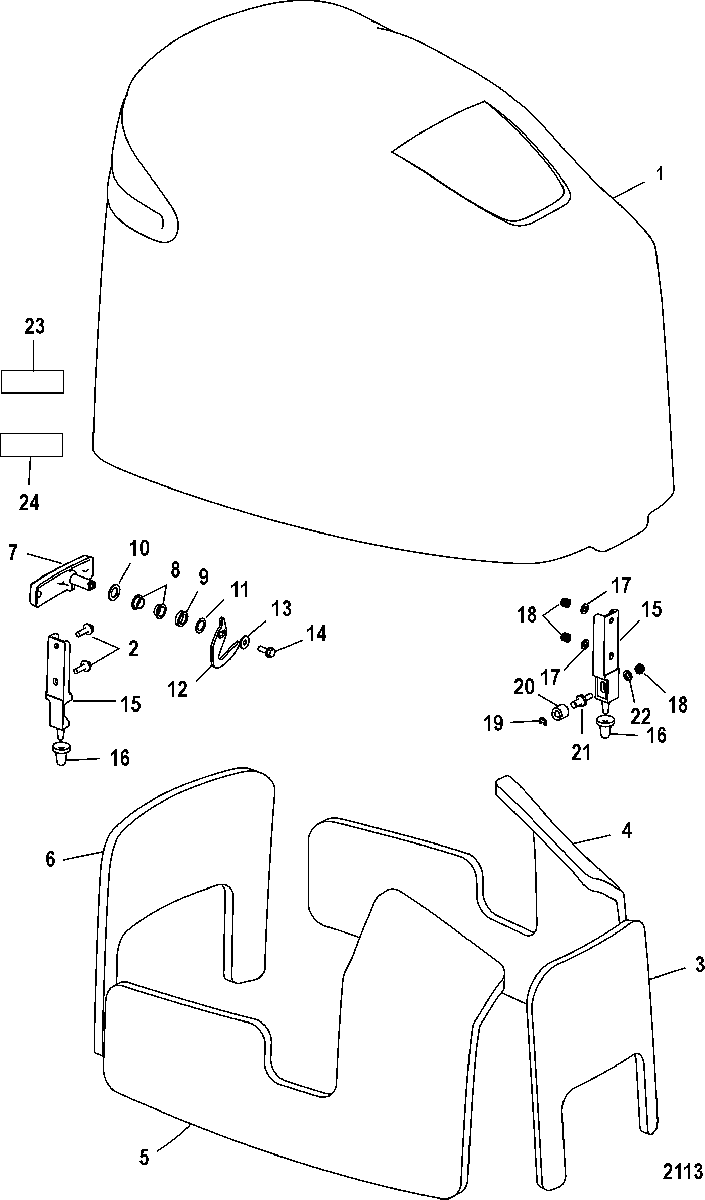

Top Cowl для Mariner - V-175 DFI (2.5L) 1B417702 & Up
-
№АртикулНазвание
-
1100-8M0063397 TOP COWL ASSEMBLY, Black, Includes all Decals except HorsepowerTOP COWL ASSEMBLY, Black, Includes all Decals except Horsepower
-
1100-883058T02 TOP COWL ASSEMBLY, SilverTOP COWL ASSEMBLY, Silver
-
1100-8M0075376 TOP COWL ASSEMBLY, Mercury, Without decalsTOP COWL ASSEMBLY, Mercury, Without decals
-
18M0075378 TOP COWL ASSEMBLY, Mariner, Without decalsTOP COWL ASSEMBLY, Mariner, Without decals
-
-888167 BLOCK, FillerBLOCK, Filler
-
210-82130020 SCREW, (M6 x 20)SCREW, (M6 x 20)
-
3883019A02 SOUND BLANKET KITSOUND BLANKET KIT
-
4NSS NOT SOLD SEPARATE, Sound Blanket-PortNOT SOLD SEPARATE, Sound Blanket-Port
-
5NSS NOT SOLD SEPARATE, Sound Blanket-StarboardNOT SOLD SEPARATE, Sound Blanket-Starboard
-
6NSS NOT SOLD SEPARATE, Sound Blanket-RearNOT SOLD SEPARATE, Sound Blanket-Rear
-
7831207A16 HANDLE KIT, Cowl LatchHANDLE KIT, Cowl Latch
-
823-812707 BUSHINGBUSHING
-
923-8312141 SPACERSPACER
-
1012-8M0042643 WASHER, (.520 x .850 x .060) Nylon - BlackWASHER, (.520 x .850 x .060) Nylon - Black
-
1113-12134 WASHER, WaveWASHER, Wave
-
128M0001081 CAMCAM
-
1312-4002316 WASHERWASHER
-
1410-8M0009253 SCREW, (M6 x 16), Included with Handle KitSCREW, (M6 x 16), Included with Handle Kit
-
158M0036792 BRACKET, FrontBRACKET, Front
-
16815477 BUMPER, LatchBUMPER, Latch
-
1712-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1811-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1953-8237951 RING, RetainingRING, Retaining
-
20815263 ROLLERROLLER
-
218155381 PIN, RollPIN, Roll
-
2212-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
23NSS NOT SOLD SEPARATE, Decal-Counter RotationNOT SOLD SEPARATE, Decal-Counter Rotation
-
24NSS NOT SOLD SEPARATE, Decal-Break-InNOT SOLD SEPARATE, Decal-Break-In
-
-37-854292A07 DECAL SET
Black 135DECAL SET
Black 135 -
-37-8M0061182 DECAL, Horsepower (135)DECAL, Horsepower (135)
-
-37-854294A07 DECAL SET
Black 150DECAL SET
Black 150 -
-37-8M0115001 DECAL, Horsepower (150)DECAL, Horsepower (150)
-
-37-879756A07 DECAL SET
Black 175DECAL SET
Black 175 -
-37-8M0115001 DECAL, Horsepower (175)DECAL, Horsepower (175)
-
-37-854295A03 DECAL SET
Gray 135DECAL SET
Gray 135 -
-37-854297A03 DECAL SET
Gray 150DECAL SET
Gray 150 -
-37-879757A03 DECAL SET
Gray 175DECAL SET
Gray 175 -
-37-826331A08 DECAL SET, Jet Drive 110 (2.5L)DECAL SET, Jet Drive 110 (2.5L)
