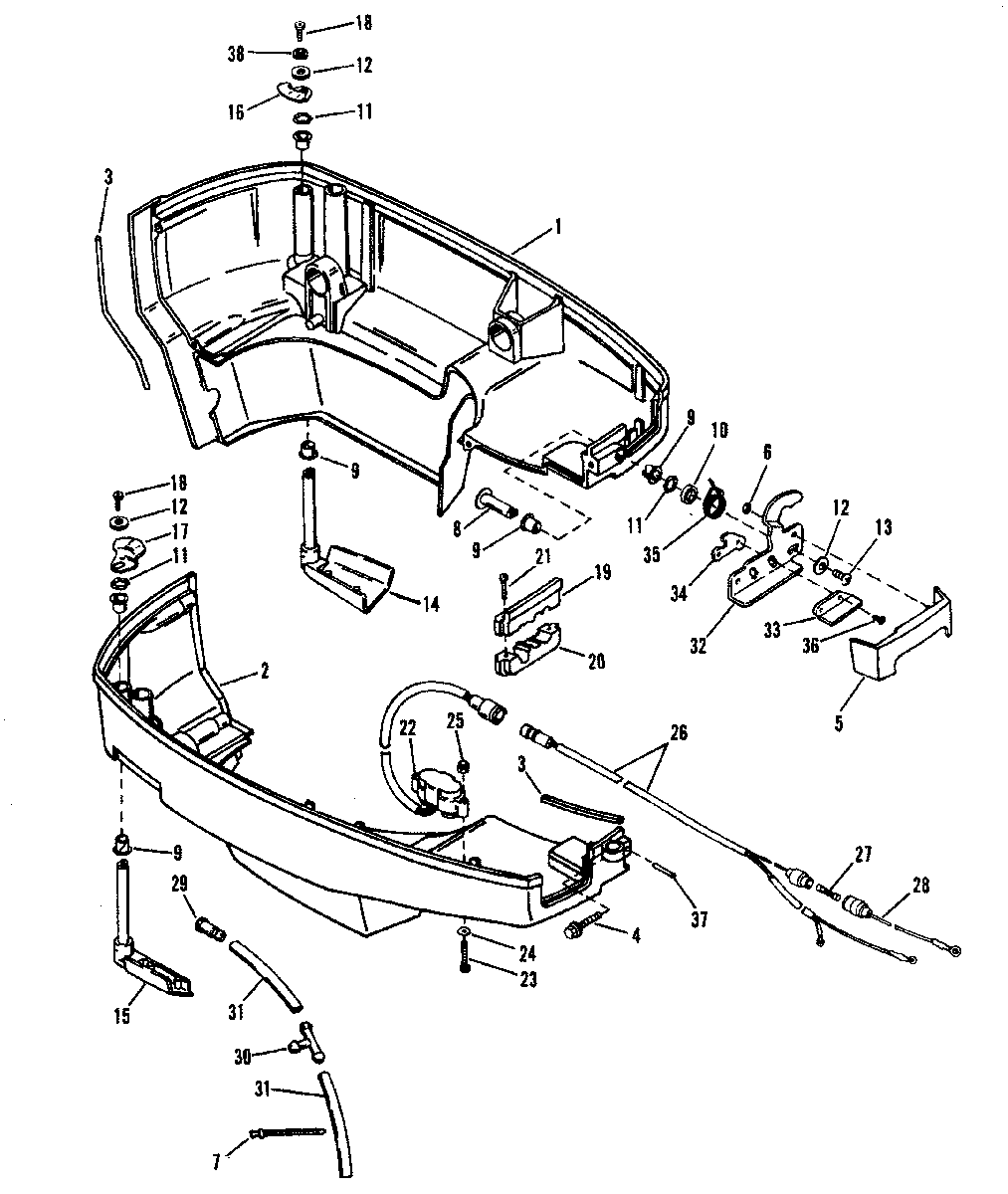

BOTTOM COWL для Mariner - V-175 (SKI) 0C100861 THRU 0C239552
-
№АртикулНазвание
-
12197-9744A16 BOTTOM COWL ASSEMBLY (PORT)BOTTOM COWL ASSEMBLY (PORT)
-
22197-9745A2 BOTTOM COWL ASSEMBLY (STARBOARD)BOTTOM COWL ASSEMBLY (STARBOARD)
-
318701A1 SEAL KIT, BOTTOM COWLSSEAL KIT, BOTTOM COWLS
-
410-18699 SCREW, COWL (STARBOARD)SCREW, COWL (STARBOARD)
-
518872A1 COVER ASSEMBLYCOVER ASSEMBLY
-
611-8136921 LOCKNUTLOCKNUT
-
754-816311T STA-STRAPSTA-STRAP
-
818727 RODROD
-
923-65830 BUSHING, NYLINERBUSHING, NYLINER
-
1023-19666 BUSINGBUSING
-
1113-99611 WAVE WASHERWAVE WASHER
-
1212-69057 WASHERWASHER
-
1310-18192 SCREWSCREW
-
1419648A2 HANDLE ASSEMBLY (PORT)HANDLE ASSEMBLY (PORT)
-
1519647A3 HANDLE ASSEMBLY (STARBOARD)HANDLE ASSEMBLY (STARBOARD)
-
1619370 PAWL (PORT)PAWL (PORT)
-
1719369 PAWL (STARBOARD)PAWL (STARBOARD)
-
1810-90047 SCREWSCREW
-
1954-19749 CLAMP (UPPER)CLAMP (UPPER)
-
2054-197481 CLAMP (LOWER)CLAMP (LOWER)
-
2110-92799 SCREWSCREW
-
2284-16636A1 HARNESS ASSEMBLY, TRIMHARNESS ASSEMBLY, TRIM
-
2310-72202 SCREWSCREW
-
2412-56681 WASHERWASHER
-
2511-826709106 NUTNUT
-
2684-16639A1 TRIM HARNESS ASSEMBLYTRIM HARNESS ASSEMBLY
-
2788-79091 FUSEFUSE
-
2884-95084A2 WIRE, FUSEWIRE, FUSE
-
2922-813613 FITTING, TELLTALEFITTING, TELLTALE
-
3022-90824001 TEE, TELLTALETEE, TELLTALE
-
3132-8M0108355 HOSE, TELLTALEHOSE, TELLTALE
-
32813076A2 FRONT HANDLE ASSEMBLYFRONT HANDLE ASSEMBLY
-
33813076A2 HANDLE LOCKHANDLE LOCK
-
34813076A2 HANDLEHANDLE
-
35813076A2 SPRINGSPRING
-
3610-69079 SCREWSCREW
-
3717-815296 LOCK PINLOCK PIN
-
3813-26992 LOCKWASHERLOCKWASHER
