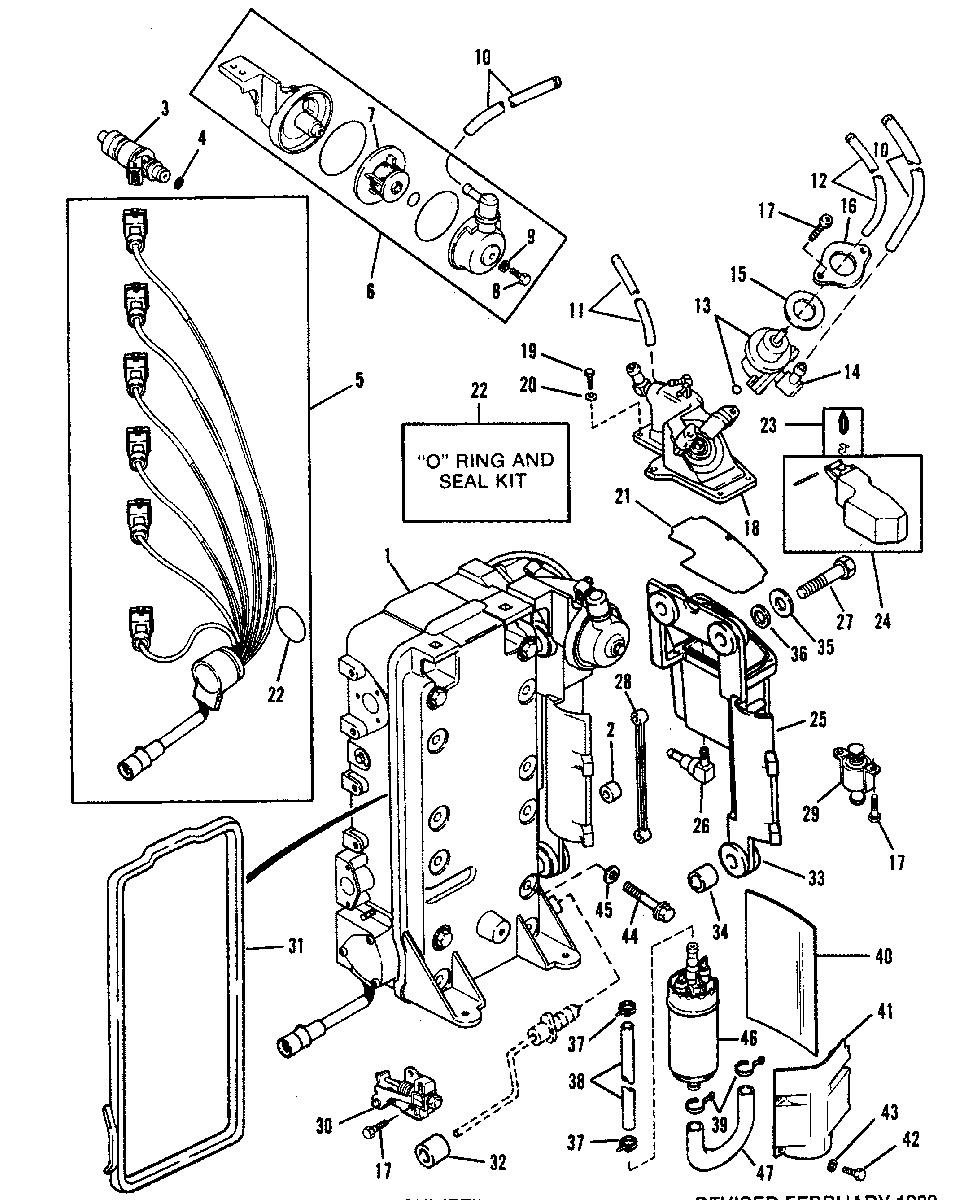

FUEL MANAGEMENT SYSTEM для Mariner - V-175 (SKI) 0C100861 THRU 0C239552
-
№АртикулНазвание
-
114817A19 FUEL MANAGEMENT ASSEMBLYFUEL MANAGEMENT ASSEMBLY
-
267748 ROLLER, CAMROLLER, CAM
-
318715T FUEL INJECTORFUEL INJECTOR
-
435-17422 FILTER, INJECTORFILTER, INJECTOR
-
584-15443 HARNESS KITHARNESS KIT
-
635-15442 FUEL FILTER KITFUEL FILTER KIT
-
735-150282 FUEL FILTERFUEL FILTER
-
810-400034 SCREW, FILTER COVERSCREW, FILTER COVER
-
913-400255 LOCKWASHER, COVER SCREWLOCKWASHER, COVER SCREW
-
1032-1350385 HOSE (1/2" O.D.)HOSE (1/2" O.D.)
-
1132-9912688 HOSE (1/8" I.D.)HOSE (1/8" I.D.)
-
1232-892024122 HOSE (3/32" I.D.)HOSE (3/32" I.D.)
-
1315027 REGULATOR, PRESSUREREGULATOR, PRESSURE
-
14814233 ELBOW KITELBOW KIT
-
1527-18791 GASKET, PRESSURE REGULATORGASKET, PRESSURE REGULATOR
-
16814012 PLATE, PRESSURE REGULATORPLATE, PRESSURE REGULATOR
-
1710-814076 SCREWSCREW
-
18814010 COVER KITCOVER KIT
-
1910-4001987 SCREW, COVER TO SEPARATORSCREW, COVER TO SEPARATOR
-
2013-26995 LOCKWASHER, COVER SCREWLOCKWASHER, COVER SCREW
-
2126-18790 SEAL, VAPOR SEPARATORSEAL, VAPOR SEPARATOR
-
2215029 "O" RING AND SEAL KIT"O" RING AND SEAL KIT
-
2315446 FLOAT VALVE KITFLOAT VALVE KIT
-
2415445 FLOAT KITFLOAT KIT
-
25814011 BODY KITBODY KIT
-
2621-424811 CHECK VALVECHECK VALVE
-
2710-4000332 SCREW, SEPARATOR TO FUEL MANAGEMENTSCREW, SEPARATOR TO FUEL MANAGEMENT
-
2815444 LINKLINK
-
2921-18241 CHECK VALVECHECK VALVE
-
30814077 SHUT-OFF VALVESHUT-OFF VALVE
-
3126-18792 SEAL, INJECTOR MANIFOLDSEAL, INJECTOR MANIFOLD
-
3223-19275 SPACERSPACER
-
3325-88033 GROMMETGROMMET
-
3423-814913 SPACERSPACER
-
3512-35280 WASHER (LARGE)WASHER (LARGE)
-
3612-69057 WASHER (SMALL)WASHER (SMALL)
-
3754-13791 CLAMP, HOSECLAMP, HOSE
-
3832-1350385 TUBING (1-3/4")TUBING (1-3/4")
-
3954-816311T STA-STRAPSTA-STRAP
-
4014639 BLANKET, FUEL PUMPBLANKET, FUEL PUMP
-
4114640T COVER, FUEL PUMPCOVER, FUEL PUMP
-
4210-32228 SCREWSCREW
-
4313-26996 LOCKWASHERLOCKWASHER
-
4410-845674 SCREWSCREW
-
4512-29245 WASHERWASHER
-
4614307T01 FUEL PUMPFUEL PUMP
-
4732-146332 HOSEHOSE
