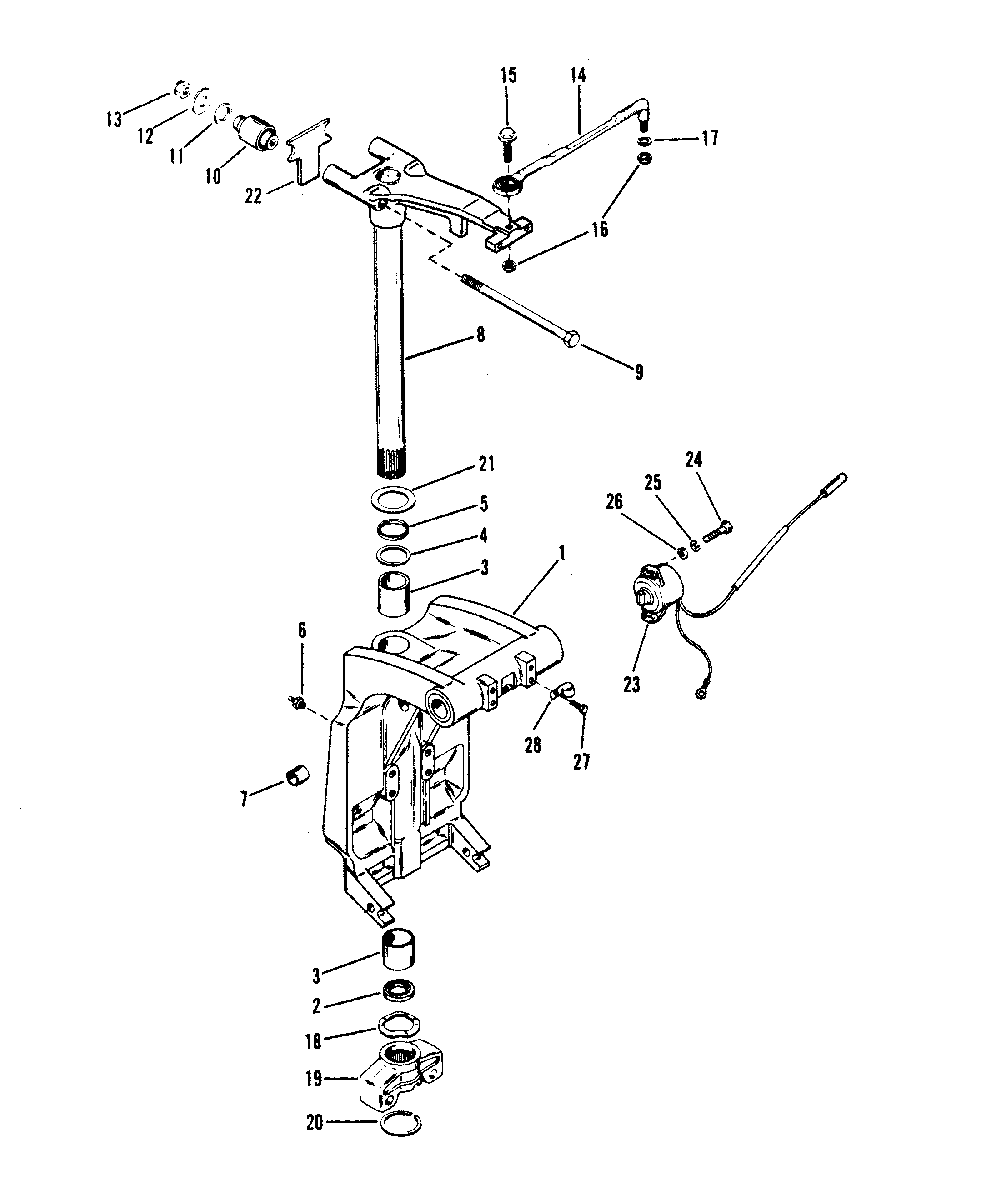

SWIVEL BRACKET AND STEERING ARM для Mariner - V-175 (SKI) 0C100861 THRU 0C239552
-
№АртикулНазвание
-
11499-8M0102865 SWIVEL BRACKET ASSEMBLYSWIVEL BRACKET ASSEMBLY
-
226-87735 OIL SEAL, SWIVEL BRACKET (LOWER)OIL SEAL, SWIVEL BRACKET (LOWER)
-
323-818764 BUSHING, SWIVEL BRACKET (LOWER AND UPPER)BUSHING, SWIVEL BRACKET (LOWER AND UPPER)
-
425-33466 O" RING, SWIVEL BRACKET (UPPER)O" RING, SWIVEL BRACKET (UPPER)
-
523-67668 SPACER, SWIVEL BRACKET (UPPER)SPACER, SWIVEL BRACKET (UPPER)
-
622-74036 FITTING, GREASEFITTING, GREASE
-
723-821207 BUSHING, SWIVEL BRACKETBUSHING, SWIVEL BRACKET
-
817-8M0132731 SWIVEL PIN AND STEERING ARMSWIVEL PIN AND STEERING ARM
-
910-8M0000491 SCREW, STEERING ARM TO UPPER MOUNTSCREW, STEERING ARM TO UPPER MOUNT
-
1077326 MOUNT, RUBBER (UPPER)MOUNT, RUBBER (UPPER)
-
1112-66921 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
1212-78688 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
1311-34933 NUT, UPPER MOUNT BOLTNUT, UPPER MOUNT BOLT
-
1492876A12 STEERING LINK ASSEMBLYSTEERING LINK ASSEMBLY
-
1510-849838 SCREW, STEERING LINK TO STEERING ARMSCREW, STEERING LINK TO STEERING ARM
-
1611-8M0042636 NUT, STEERING LINK SCREWNUT, STEERING LINK SCREW
-
1712-34931 WASHER, STEERING LINK TO STEERING ARMWASHER, STEERING LINK TO STEERING ARM
-
1813-78854 WAVE WASHER, BOTTOM YOKEWAVE WASHER, BOTTOM YOKE
-
19878182T01 BOTTOM YOKEBOTTOM YOKE
-
2053-67684 RETAINING RING, BOTTOM YOKERETAINING RING, BOTTOM YOKE
-
2112-67670 WASHER, THRUST-SWIVEL BRACKETWASHER, THRUST-SWIVEL BRACKET
-
2288882 BUMPER, TOP YOKEBUMPER, TOP YOKE
-
238M0098273 TRIM SENDER ASSEMBLYTRIM SENDER ASSEMBLY
-
2410-852368 SCREW, TRIM SENDERSCREW, TRIM SENDER
-
2513-26996 LOCKWASHER, TRIM SENDER SCREWLOCKWASHER, TRIM SENDER SCREW
-
2612-89302 WASHER, TRIM SENDER SCREWWASHER, TRIM SENDER SCREW
-
2710-64014 SCREW, SWIVEL BRACKETSCREW, SWIVEL BRACKET
-
2854-54457 "J" CLAMP"J" CLAMP
