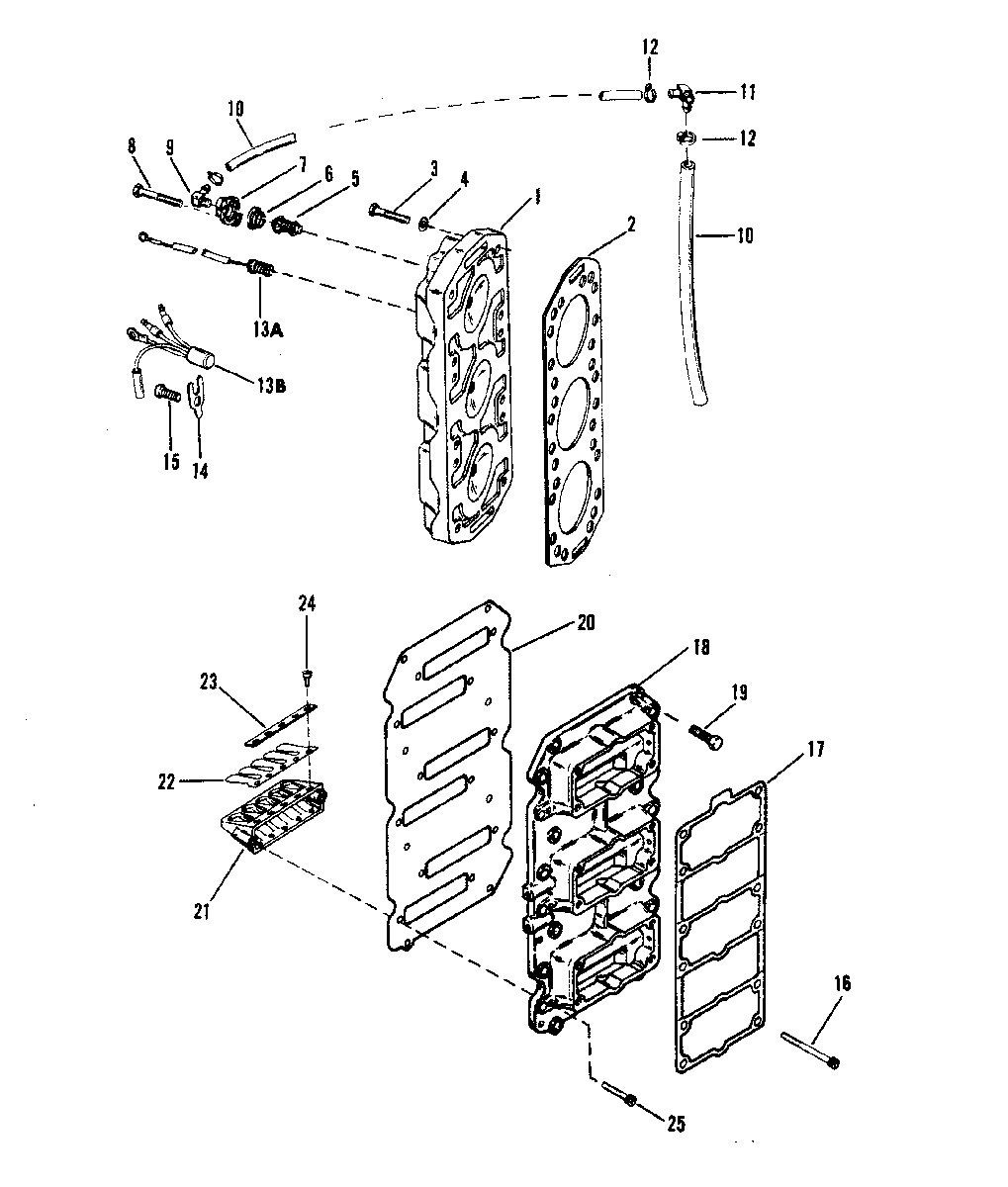

REED BLOCK AND CYLINDER HEAD для Mariner - V-175 (SKI) 0C100861 THRU 0C239552
-
№АртикулНазвание
-
115221A5 CYLINDER HEADCYLINDER HEAD
-
227-41247T01 GASKET, CYLINDER HEADGASKET, CYLINDER HEAD
-
310-98534 SCREW, CYLINDER HEAD (2")SCREW, CYLINDER HEAD (2")
-
412-25909 WASHER, CYLINDER HEAD SCREWWASHER, CYLINDER HEAD SCREW
-
575692 THERMOSTATTHERMOSTAT
-
627-62386001 GASKET, THERMOSTATGASKET, THERMOSTAT
-
790390A1 COVER, THERMOSTATCOVER, THERMOSTAT
-
810-35386 SCREW, THERMOSTAT COVER (1")SCREW, THERMOSTAT COVER (1")
-
922-687271 FITTING, ELBOW - WATER HOSESFITTING, ELBOW - WATER HOSES
-
1032-77653101 HOSE, WATER DISTRIBUTIONHOSE, WATER DISTRIBUTION
-
1122-68728 FITTING, THERMOSTAT COVER TO WATER HOSESFITTING, THERMOSTAT COVER TO WATER HOSES
-
1254-816311T STA-STRAP, WATER HOSESSTA-STRAP, WATER HOSES
-
13A97465 TEMPERATURE SENDER (STARBOARD)TEMPERATURE SENDER (STARBOARD)
-
13B13536A6 TEMPERATURE SENSOR (PORT)TEMPERATURE SENSOR (PORT)
-
14137151 RETAINER, SENSOR AND SENDERRETAINER, SENSOR AND SENDER
-
1510-98257 SCREW, RETAINERSCREW, RETAINER
-
1610-90197 SCREW, REED BLOCK ATTACHING (2")SCREW, REED BLOCK ATTACHING (2")
-
1727-167371 GASKET, ADAPTOR PLATEGASKET, ADAPTOR PLATE
-
1814593A4 ADAPTOR PLATEADAPTOR PLATE
-
1910-28668 SCREW, ADAPTOR PLATESCREW, ADAPTOR PLATE
-
2027-146971 GASKET, ADAPTOR PLATEGASKET, ADAPTOR PLATE
-
2175953 REED BLOCKREED BLOCK
-
2234-75362A1 REED ASSEMBLYREED ASSEMBLY
-
23961832 REED CLAMPREED CLAMP
-
2410-823588 SCREW, REEDS TO REED BLOCKSCREW, REEDS TO REED BLOCK
-
2510-92160 SCREW, REED BLOCK ATTACHING (3/4")SCREW, REED BLOCK ATTACHING (3/4")
