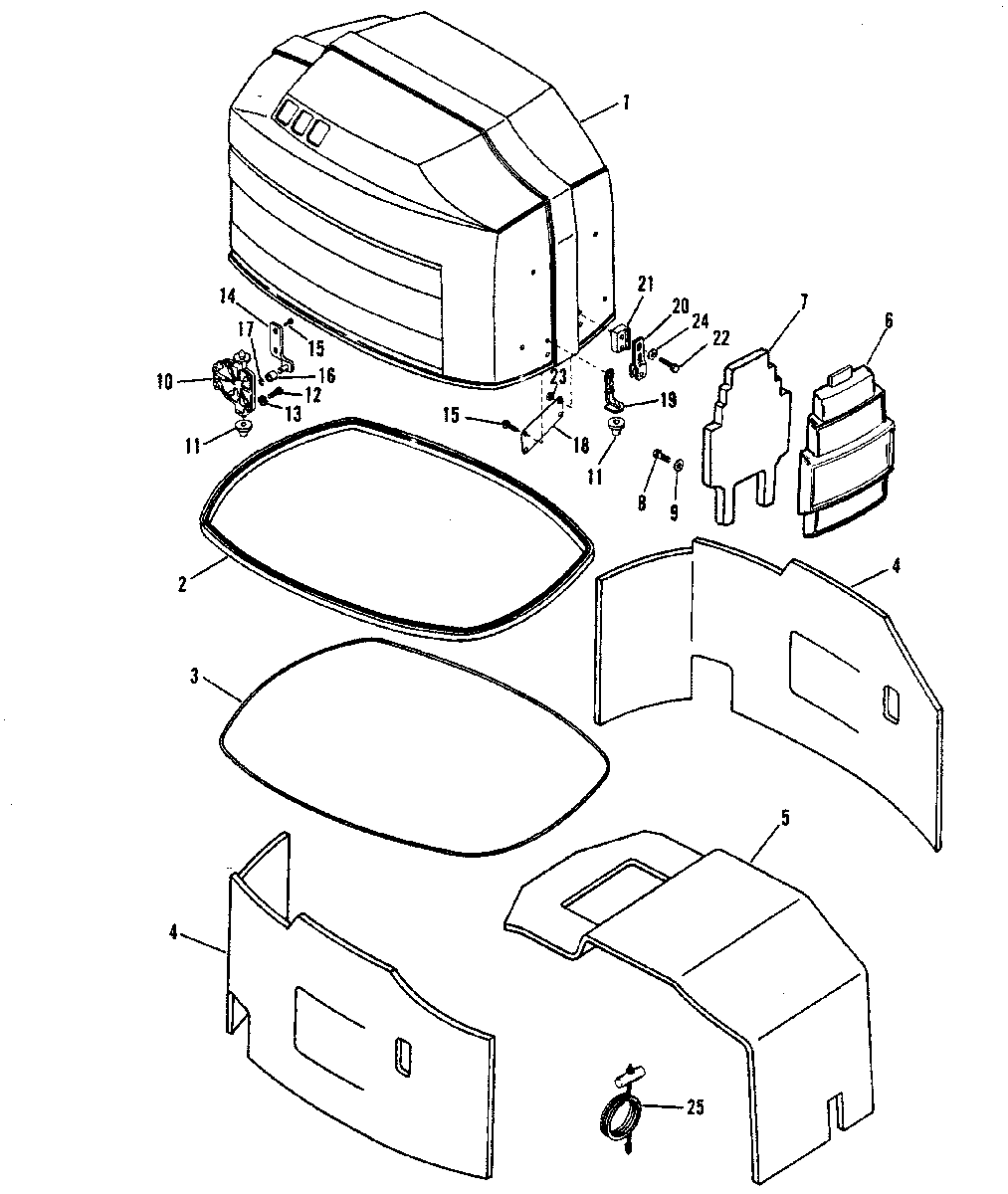

TOP COWL AND FRONT SHIELD для Mariner - V-175 (SKI) 0C100861 THRU 0C239552
-
№АртикулНазвание
-
12196-9743T11 TOP COWL ASSEMBLYTOP COWL ASSEMBLY
-
2812784 SEALSEAL
-
3815478 SEALSEAL
-
4814823 SOUND BLANKET (SIDE)SOUND BLANKET (SIDE)
-
5814837 SOUND BLANKET (TOP)SOUND BLANKET (TOP)
-
618755A2 FRONT SHIELD ASSEMBLYFRONT SHIELD ASSEMBLY
-
7813562 SEALSEAL
-
810-48409 SCREWSCREW
-
912-42118 WASHERWASHER
-
10184741 BRACKET, REARBRACKET, REAR
-
1125-18506001 GROMMETGROMMET
-
1210-28636 SCREW, REAR BRACKETSCREW, REAR BRACKET
-
1313-26992 LOCKWASHER, REAR BRACKET SCREWLOCKWASHER, REAR BRACKET SCREW
-
14813096A2 HOOKHOOK
-
1510-73286 SCREWSCREW
-
16815263 ROLLERROLLER
-
1753-13194 SNAP RINGSNAP RING
-
1812-56720 PLATEPLATE
-
19187021 LOCATORLOCATOR
-
20893763 BRACKETBRACKET
-
21813076A2 SPACERSPACER
-
2210-31984 SCREWSCREW
-
2311-82670910 NUTNUT
-
2412-8M0042642 WASHERWASHER
-
2547341A11 STARTER ROP (FOR MANUAL STARTING)STARTER ROP (FOR MANUAL STARTING)
