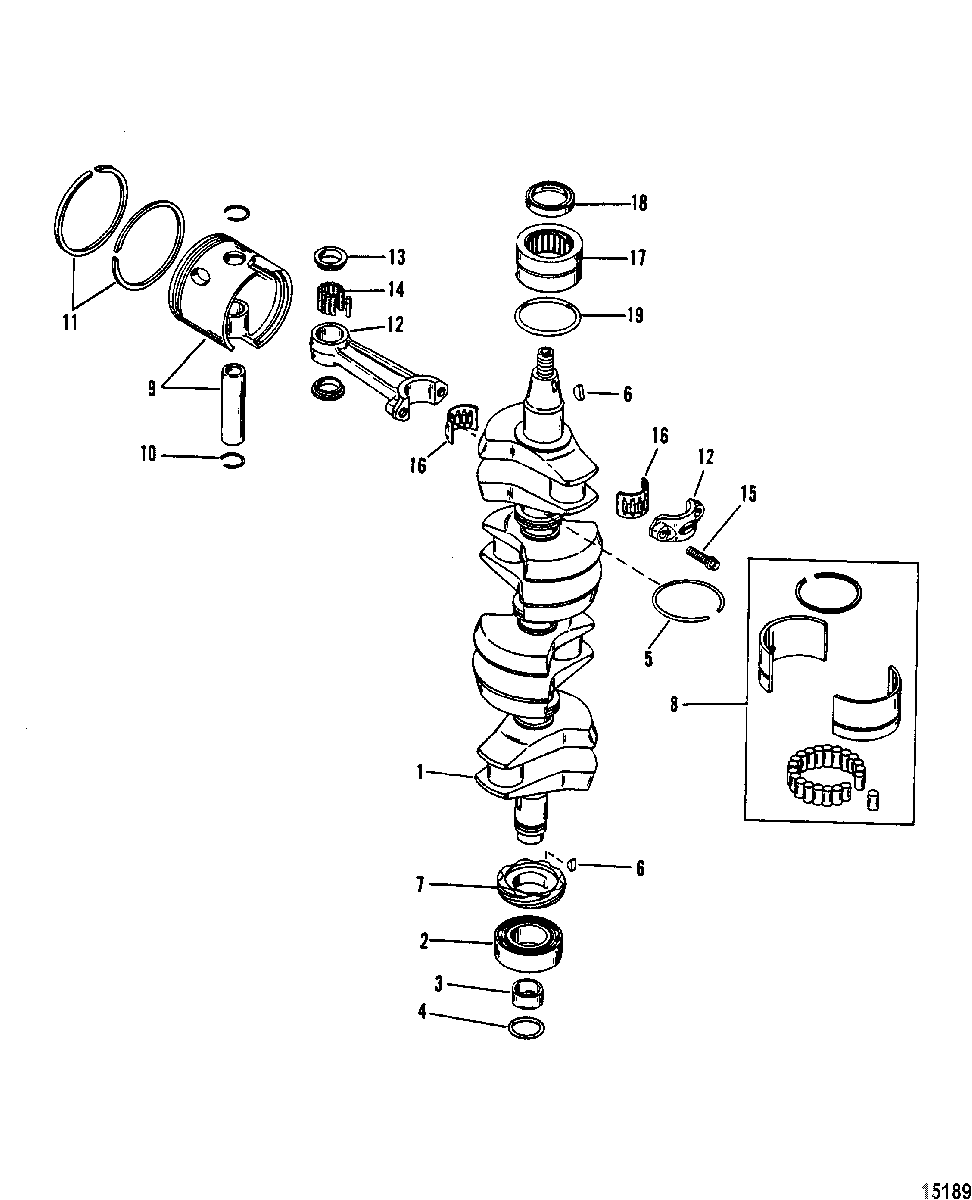

Crankshaft, Pistons And Connecting Rods (646-818846) для Mercury - 115 (4 CYL.) 9559771 THRU 9793576
-
№АртикулНазвание
-
1473-9193T3 CRANKSHAFT ASSEMBLYCRANKSHAFT ASSEMBLY
-
230-43011T BEARING, Ball, LowerBEARING, Ball, Lower
-
3786611 WEAR SLEEVEWEAR SLEEVE
-
425-35126 O-RING, (.859 x .139)O-RING, (.859 x .139)
-
539-818412A4 RING ASSEMBLYRING ASSEMBLY
-
628-91800 KEY, WoodruffKEY, Woodruff
-
743-43019A1 GEAR ASSEMBLYGEAR ASSEMBLY
-
842943A1 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
9777-815965T4 PISTON ASSEMBLY
(Standard)PISTON ASSEMBLY
(Standard) -
9777-815965A5 PISTON ASSEMBLY
(.015 Oversize)PISTON ASSEMBLY
(.015 Oversize) -
9777-815965A6 PISTON ASSEMBLY
(.030 Oversize)PISTON ASSEMBLY
(.030 Oversize) -
1053-857196 RING, LockRING, Lock
-
1139-96170A12 RING SET, PistonRING SET, Piston
-
1139-96170A3 RING SET, Piston
(.015 Oversize)RING SET, Piston
(.015 Oversize) -
1139-96170A4 RING SET, Piston
(.030 Oversize)RING SET, Piston
(.030 Oversize) -
12646-818846T6 CONNECTING ROD ASSEMBLYCONNECTING ROD ASSEMBLY
-
1312-8M0012298 WASHERWASHER
-
1429-818391001 BEARING, NeedleBEARING, Needle
-
1510-94320 SCREW, (.375-24 x 1.250)SCREW, (.375-24 x 1.250)
-
1631-844338A01 BEARING ASSEMBLY, RollerBEARING ASSEMBLY, Roller
-
1731-43013T3 BEARING ASSEMBLY, Roller, UpperBEARING ASSEMBLY, Roller, Upper
-
1826-43993 SEAL, OilSEAL, Oil
-
1925-823683 O-RINGO-RING
-
-17791T92 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
