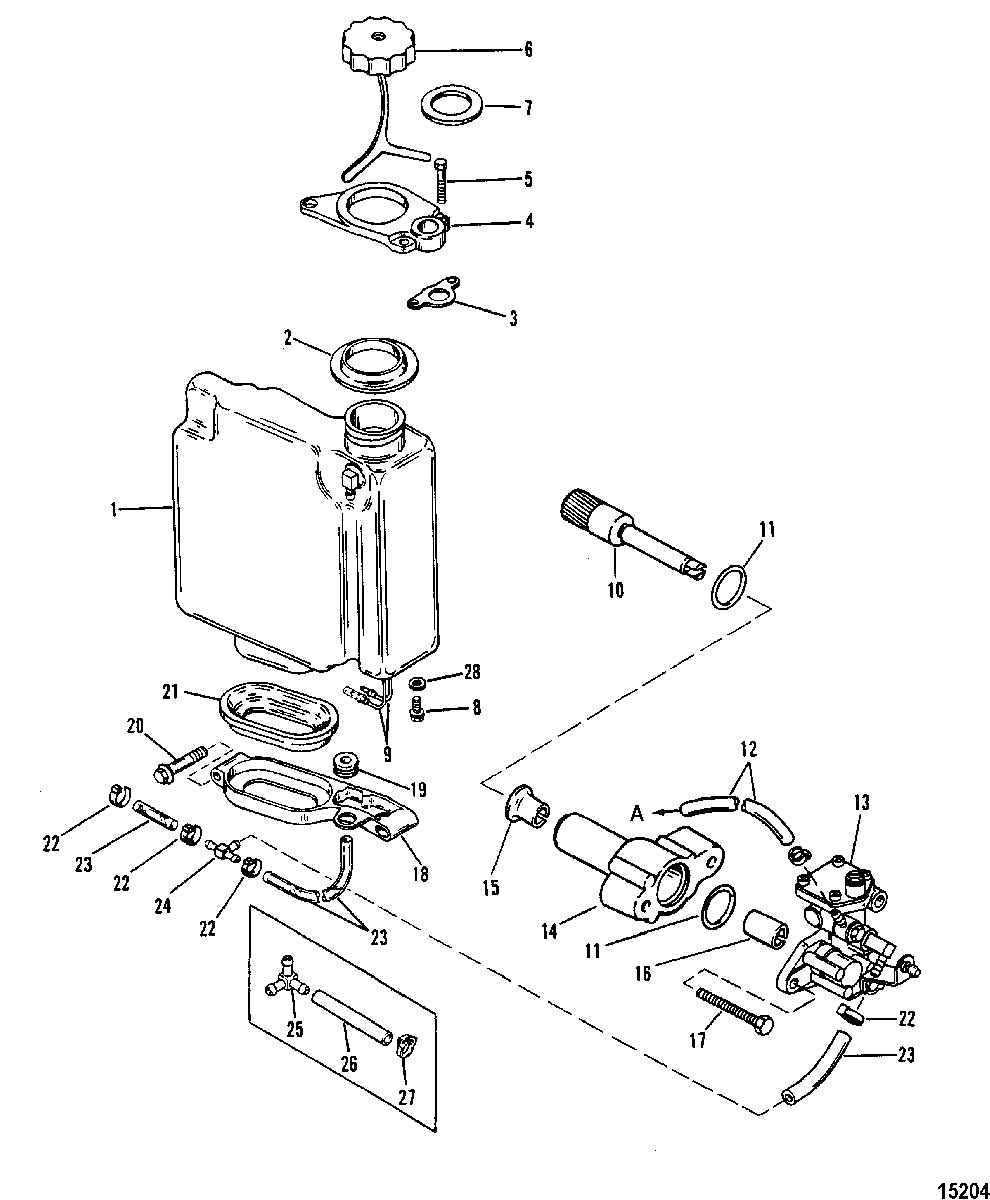

Oil Injection Components для Mercury - 115 (4 CYL.) 9559771 THRU 9793576
-
№АртикулНазвание
-
11256-8628A7 TANK ASSEMBLY, OilTANK ASSEMBLY, Oil
-
299160001 BOOT, UpperBOOT, Upper
-
3NLA No Longer Available, Cover, Old DesignNo Longer Available, Cover, Old Design
-
4988952 BRACKET, UpperBRACKET, Upper
-
510-4010630 SCREW, (M6 x 30) Stainless SteelSCREW, (M6 x 30) Stainless Steel
-
636-42653A3 CAP ASSEMBLYCAP ASSEMBLY
-
727-42999T GASKETGASKET
-
810-12896 SCREW, (#8-18 x .310)SCREW, (#8-18 x .310)
-
987-12886A6 SWITCH ASSEMBLYSWITCH ASSEMBLY
-
1043-430204 GEAR, DrivenGEAR, Driven
-
1125-62705 O-RINGO-RING
-
1232-82381335 TUBING, (8.00 Inches)
(A = To Fuel Pump)TUBING, (8.00 Inches)
(A = To Fuel Pump) -
1344345T3 PUMP, OilPUMP, Oil
-
1417335A3 ADAPTOR ASSEMBLYADAPTOR ASSEMBLY
-
1523-17597 BUSHINGBUSHING
-
1623-17596 BUSHINGBUSHING
-
1710-82104540 SCREWSCREW
-
1842888 BRACKET, Oil Tank BaseBRACKET, Oil Tank Base
-
1925-56291 GROMMETGROMMET
-
2010-82155050 SCREW, (M8 x 50) Stainless SteelSCREW, (M8 x 50) Stainless Steel
-
2199161 BOOTBOOT
-
2254-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2269355 TIE STRAP, (5.50 Inches)TIE STRAP, (5.50 Inches)
-
2332-82381455 TUBING, Use With Reference Number 24TUBING, Use With Reference Number 24
-
2422-73318 TEE, PlasticTEE, Plastic
-
2332-82381455 TUBING, Use With Reference Number 25TUBING, Use With Reference Number 25
-
2522-44456 FITTING, Three HoleFITTING, Three Hole
-
2632-82381455 TUBING, (14.50 Inches Bulk), Use With Reference Number 25TUBING, (14.50 Inches Bulk), Use With Reference Number 25
-
2754-814200 CLAMP, Use With Reference Number 25CLAMP, Use With Reference Number 25
-
2812-56681 WASHER, (.203 x .500 x .032)WASHER, (.203 x .500 x .032)
