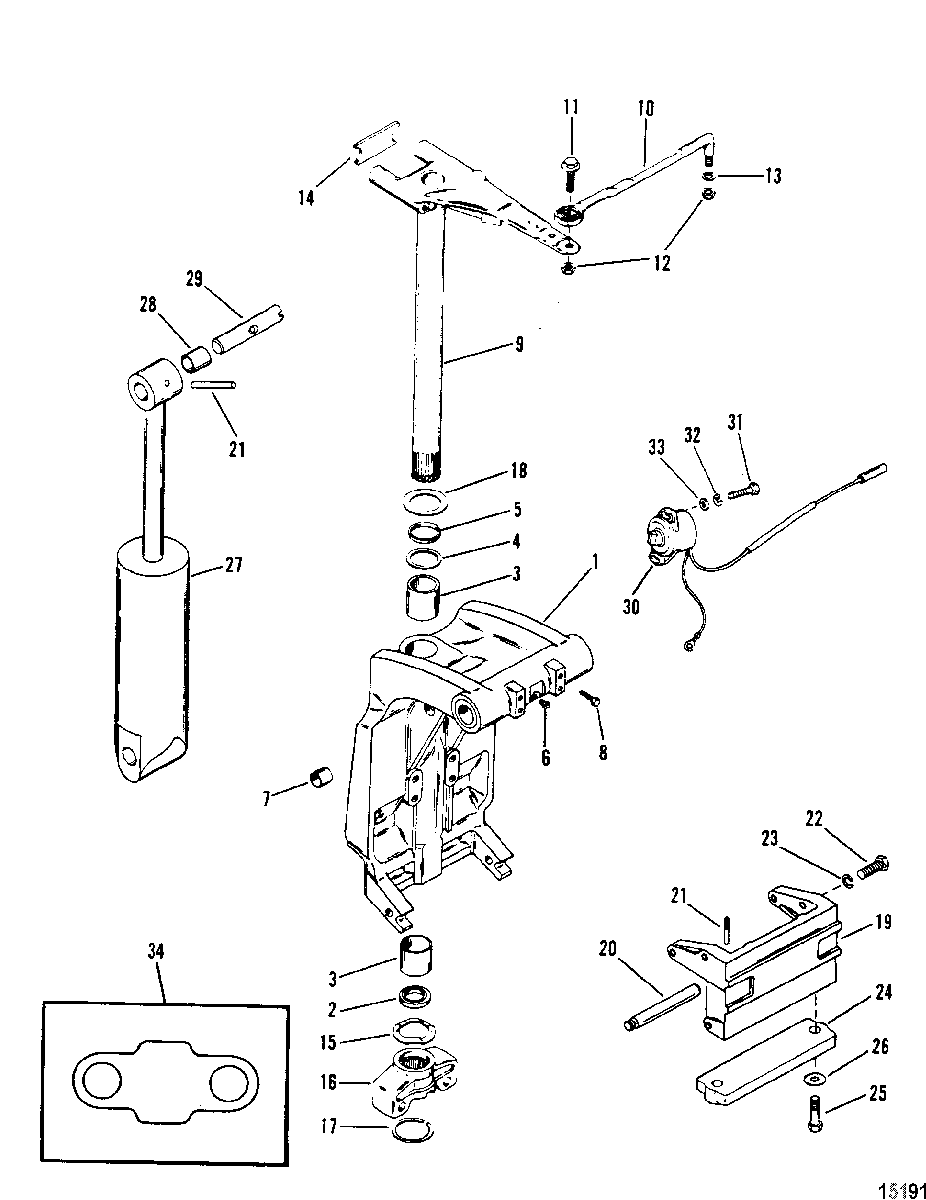

Swivel Bracket and Steering Arm для Mercury - 115 (4 CYL.) 9559771 THRU 9793576
-
№АртикулНазвание
-
11499-8M0102865 SWIVEL BRACKET ASSEMBLY, BlackSWIVEL BRACKET ASSEMBLY, Black
-
11499-8M0102865 SWIVEL BRACKET ASSEMBLY, GraySWIVEL BRACKET ASSEMBLY, Gray
-
226-87735 SEAL, Oil, LowerSEAL, Oil, Lower
-
323-818764 BUSHINGBUSHING
-
425-33466 O-RINGO-RING
-
523-67668 SPACERSPACER
-
622-74036 FITTING, GreaseFITTING, Grease
-
723-821207 BUSHINGBUSHING
-
810-64014 SCREW, (.250-28 x .500)SCREW, (.250-28 x .500)
-
999661A2 SWIVEL PIN ASSEMBLY, Round End, BlackSWIVEL PIN ASSEMBLY, Round End, Black
-
999661A4 SWIVEL PIN ASSEMBLY, Mariner, Round End, GraySWIVEL PIN ASSEMBLY, Mariner, Round End, Gray
-
999661A18 SWIVEL PIN ASSEMBLY, Oyster
(Sea Ray Round End)SWIVEL PIN ASSEMBLY, Oyster
(Sea Ray Round End) -
999661A18 SWIVEL PIN ASSEMBLY, Gray
(Sea Ray Round End)SWIVEL PIN ASSEMBLY, Gray
(Sea Ray Round End) -
999661A35 SWIVEL PIN ASSEMBLY, Stub End, BlackSWIVEL PIN ASSEMBLY, Stub End, Black
-
999661A35 SWIVEL PIN ASSEMBLY, Stub End, GraySWIVEL PIN ASSEMBLY, Stub End, Gray
-
1092876A12 LINK ASSEMBLY, Steering
(Mercury And Mariner)LINK ASSEMBLY, Steering
(Mercury And Mariner) -
1110-849838 SCREW, (.375-24 x 1.25)
(Mercury And Mariner)SCREW, (.375-24 x 1.25)
(Mercury And Mariner) -
1211-8M0042636 NUT, (.375-24)
(Mercury And Mariner)NUT, (.375-24)
(Mercury And Mariner) -
1312-34931 WASHER, (.406 x .734 x .063) Stainless Steel
(Mercury And Mariner)WASHER, (.406 x .734 x .063) Stainless Steel
(Mercury And Mariner) -
148M0000516 BUMPER, X-LongBUMPER, X-Long
-
1513-78854 WAVE WASHERWAVE WASHER
-
1642961A06 YOKE ASSEMBLY, BottomYOKE ASSEMBLY, Bottom
-
1642961A06 YOKE ASSEMBLY, BottomYOKE ASSEMBLY, Bottom
-
1642961A06 YOKE ASSEMBLY, BottomYOKE ASSEMBLY, Bottom
-
1753-67684 RING, RetainingRING, Retaining
-
1812-67670 WASHERWASHER
-
1999653 BRACKET
(Not Used With Power Trim)BRACKET
(Not Used With Power Trim) -
2099619 SHAFT, Lower
(Not Used With Power Trim)SHAFT, Lower
(Not Used With Power Trim) -
2117-821539 PIN, Trilobe
(Not Used With Power Trim)PIN, Trilobe
(Not Used With Power Trim) -
2210-4000377 SCREW, (M10 x 30)
(Not Used With Power Trim)SCREW, (M10 x 30)
(Not Used With Power Trim) -
2313-400258 LOCKWASHER, (M10) Stainless Steel
(Not Used With Power Trim)LOCKWASHER, (M10) Stainless Steel
(Not Used With Power Trim) -
2497-818298Q1 ANODE KIT
(Not Used With Power Trim)ANODE KIT
(Not Used With Power Trim) -
2510-4000332 SCREW, (M6 x 35)
(Not Used With Power Trim)SCREW, (M6 x 35)
(Not Used With Power Trim) -
2612-29245 WASHER, (.281 x .500 x .060) Stainless Steel
(Not Used With Power Trim)WASHER, (.281 x .500 x .060) Stainless Steel
(Not Used With Power Trim) -
2755-99724T15 SHOCK ABSORBER, Black
(Not Used With Power Trim)SHOCK ABSORBER, Black
(Not Used With Power Trim) -
2755-99724T15 SHOCK ABSORBER, Gray
(Not Used With Power Trim)SHOCK ABSORBER, Gray
(Not Used With Power Trim) -
2755-99724T15 SHOCK ABSORBER, Oyster
(Not Used With Power Trim)SHOCK ABSORBER, Oyster
(Not Used With Power Trim) -
2823-821207 BUSHING
(Not Used With Power Trim)BUSHING
(Not Used With Power Trim) -
2999625002 SHAFT, Upper
(Not Used With Power Trim)SHAFT, Upper
(Not Used With Power Trim) -
308M0098273 SENDER ASSEMBLY, Trim, Sea RaySENDER ASSEMBLY, Trim, Sea Ray
-
3110-852368 SCREW, (#10-24 x .750), Sea RaySCREW, (#10-24 x .750), Sea Ray
-
3213-26996 LOCKWASHER, (#10) Stainless Steel, Sea RayLOCKWASHER, (#10) Stainless Steel, Sea Ray
-
3312-89302 WASHER, (.203 x .406 x .040), Sea RayWASHER, (.203 x .406 x .040), Sea Ray
-
3411288001 BUMPER, Bottom Yoke, X-LongBUMPER, Bottom Yoke, X-Long
