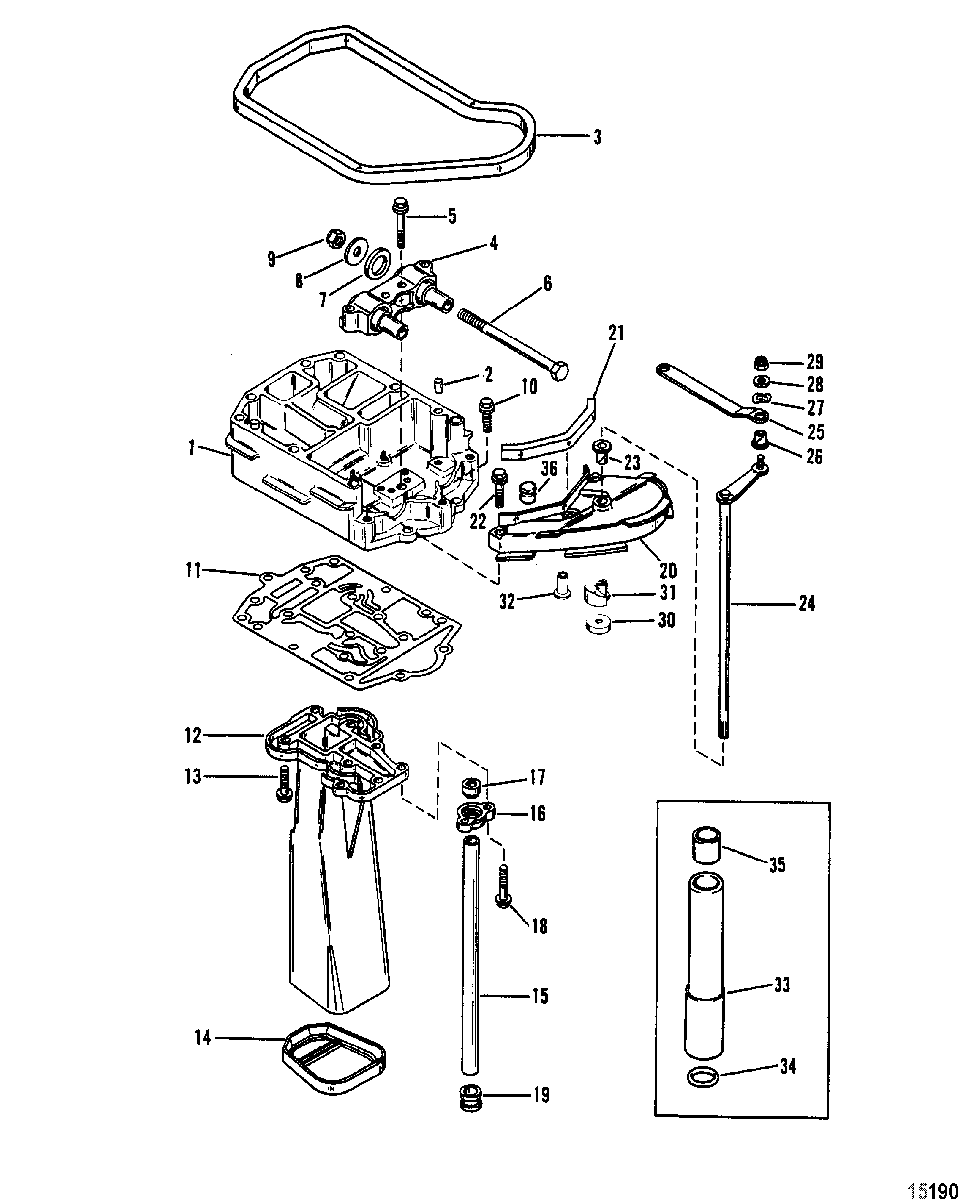

Exhaust Plate для Mercury - 115 (4 CYL.) 9559771 THRU 9793576
-
№АртикулНазвание
-
142954A2 PLATE ASSEMBLY, Exhaust
(100)PLATE ASSEMBLY, Exhaust
(100) -
142954A4 PLATE ASSEMBLY, Exhaust
(115)PLATE ASSEMBLY, Exhaust
(115) -
217-23784 PIN, DowelPIN, Dowel
-
342939 SEALSEAL
-
4443441 MOUNT, (3.25 Inch)MOUNT, (3.25 Inch)
-
4881900T03 MOUNT, (2.375 Inch)MOUNT, (2.375 Inch)
-
510-4010750 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
610-898487 BOLT, (M12 x 175)BOLT, (M12 x 175)
-
712-32834 WASHERWASHER
-
812-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless SteelWASHER, (1.5 x 3.05 x 0.13) Stainless Steel
-
911-896963 NUT, (M12)NUT, (M12)
-
1010-40011151 SCREW, (M8 x 35) Stainless SteelSCREW, (M8 x 35) Stainless Steel
-
1010-40011158 SCREW, (M8 x 70) Stainless SteelSCREW, (M8 x 70) Stainless Steel
-
1127-430086 GASKETGASKET
-
12429662 TUBE, Exhaust
(100)TUBE, Exhaust
(100) -
1287917216T TUBE, Exhaust
(115)TUBE, Exhaust
(115) -
1310-40011151 SCREW, (M8 x 35) Stainless SteelSCREW, (M8 x 35) Stainless Steel
-
148M0039075 SEALSEAL
-
1532-430141 TUBE, Water, LongTUBE, Water, Long
-
1532-430142 TUBE, Water, X-LongTUBE, Water, X-Long
-
1699019 CLAMPCLAMP
-
1742941001 SEAL, Water Tube, UpperSEAL, Water Tube, Upper
-
1810-4010750 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
1925-93221002 GROMMETGROMMET
-
2042953A2 BRACKET ASSEMBLY, Lower, BlackBRACKET ASSEMBLY, Lower, Black
-
2042953A3 BRACKET ASSEMBLY, Lower, GrayBRACKET ASSEMBLY, Lower, Gray
-
2042953A3 BRACKET ASSEMBLY, Lower, OysterBRACKET ASSEMBLY, Lower, Oyster
-
2143405 SEALSEAL
-
2210-81742750 SCREW, (M8 x 50)SCREW, (M8 x 50)
-
2323-48237 BUSHINGBUSHING
-
2479932A9 SHIFT SHAFT ASSEMBLY, UpperSHIFT SHAFT ASSEMBLY, Upper
-
2542912A1 SHIFT LINKSHIFT LINK
-
2623-48475 BUSHING, Double FlangeBUSHING, Double Flange
-
2623-42994 BUSHING, Single FlangeBUSHING, Single Flange
-
2713-29720 WAVE WASHER, Old DesignWAVE WASHER, Old Design
-
2812-24664 WASHER, (M4 x 20), Old DesignWASHER, (M4 x 20), Old Design
-
2911-401386 NUT, (M6)NUT, (M6)
-
3023-813745 SPACER, LongSPACER, Long
-
3023-11289 SPACER, X-LongSPACER, X-Long
-
3143053 COUPLING, Non Power TrimCOUPLING, Non Power Trim
-
3243585 COUPLING, Power TrimCOUPLING, Power Trim
-
3317243A1 TUBE ASSEMBLY, Water - Extension, X-LongTUBE ASSEMBLY, Water - Extension, X-Long
-
3425-21836 O-RING, (.796 x .139), X-LongO-RING, (.796 x .139), X-Long
-
3526-38970 SEAL, X-LongSEAL, X-Long
-
3625-19564001 GROMMET, Old DesignGROMMET, Old Design
