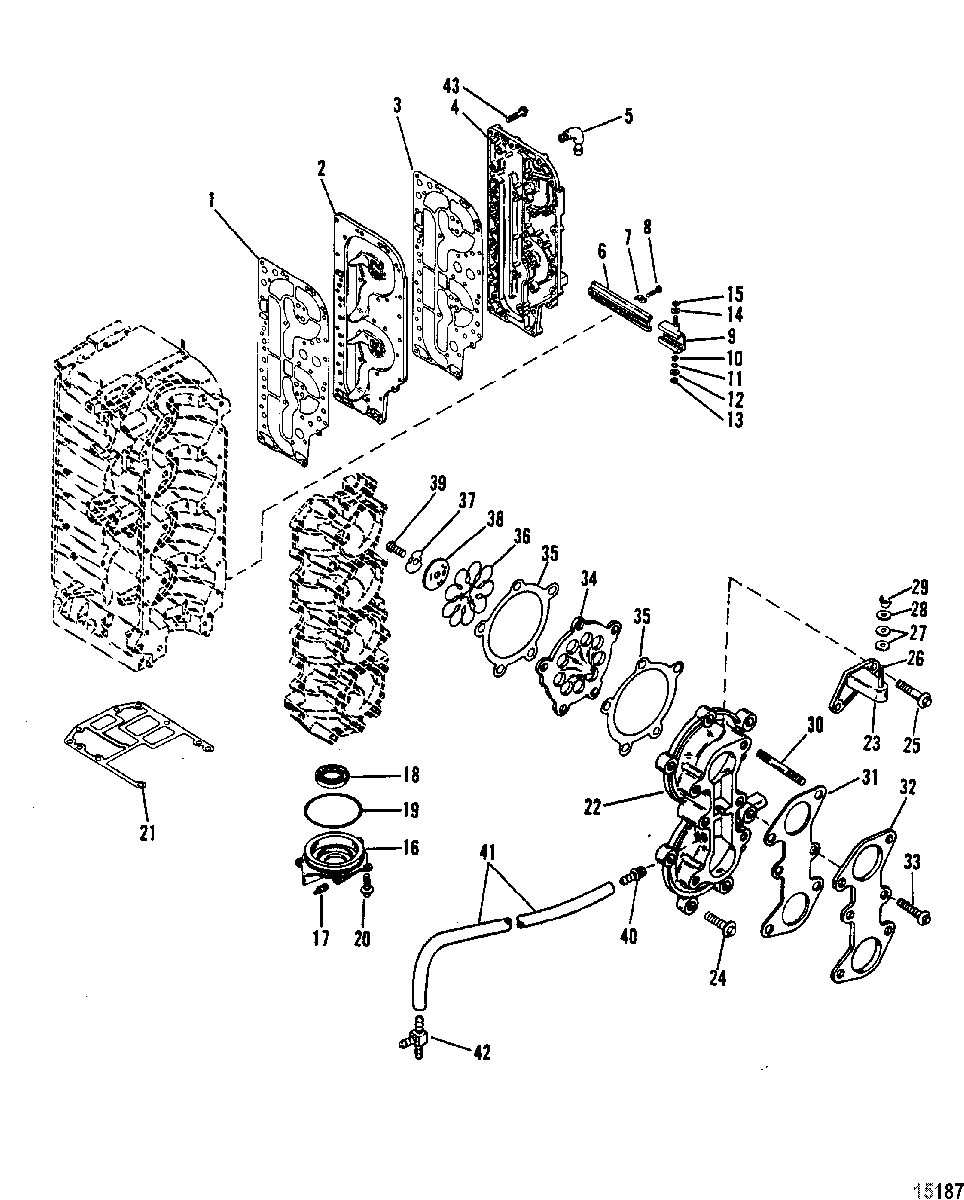

Induction Manifold And Reed Block для Mercury - 115 (4 CYL.) 9559771 THRU 9793576
-
№АртикулНазвание
-
127-139581 GASKET, Use With 44324C1 And 44325C1GASKET, Use With 44324C1 And 44325C1
-
244324T PLATE, Baffle, Casting Number 44324C1
(Use With 44324C1 And 44325C1)PLATE, Baffle, Casting Number 44324C1
(Use With 44324C1 And 44325C1) -
327-139581 GASKET, Use With 44324C1 And 44325C1GASKET, Use With 44324C1 And 44325C1
-
444325A1 COVER, Casting Number 44325C1
(Use With 44324C1 And 44325C1)COVER, Casting Number 44325C1
(Use With 44324C1 And 44325C1) -
127-812775A01 GASKET, Use With 44324C2 And 44325C2GASKET, Use With 44324C2 And 44325C2
-
244325A1 PLATE, Baffle, Casting Number 44324C2
Use With 44324C2 And 44325C2PLATE, Baffle, Casting Number 44324C2
Use With 44324C2 And 44325C2 -
327-812775A01 GASKET, Use With 44324C2 And 44325C2GASKET, Use With 44324C2 And 44325C2
-
444325A1 COVER, Casting Number 44325C2
(Use With 44324C2 And 44325C2)COVER, Casting Number 44325C2
(Use With 44324C2 And 44325C2) -
522-996642 ELBOWELBOW
-
642881A1 SHIFT RAIL ASSEMBLYSHIFT RAIL ASSEMBLY
-
714-42981 TAB WASHERTAB WASHER
-
810-40001134 SCREW, (M8 x 25)SCREW, (M8 x 25)
-
9988851 SLIDESLIDE
-
1023-42994 BUSHINGBUSHING
-
1113-29720 WAVE WASHERWAVE WASHER
-
1212-35462 WASHER, (.2656 x .625 x .0625) Stainless SteelWASHER, (.2656 x .625 x .0625) Stainless Steel
-
1311-401386 NUT, (M6)NUT, (M6)
-
1412-35459 WASHERWASHER
-
1511-401386 NUT, (M6)NUT, (M6)
-
161169-858552T2 END CAP ASSEMBLY, LowerEND CAP ASSEMBLY, Lower
-
1721-426585 CHECK VALVECHECK VALVE
-
1826-41953 SEALSEAL
-
1925-89224 O-RINGO-RING
-
2010-4010825 SCREW, (M10 x 25) Hex Flange - Stainless SteelSCREW, (M10 x 25) Hex Flange - Stainless Steel
-
2127-430075 GASKETGASKET
-
2213545A1 MANIFOLD ASSEMBLY, InductionMANIFOLD ASSEMBLY, Induction
-
2342923 BRACKETBRACKET
-
2410-82127335 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
-
2510-81742740 SCREW, (M8 x 40)SCREW, (M8 x 40)
-
2616-8M0045410 STUDSTUD
-
2712-49221 WASHERWASHER
-
2812-56681 WASHER, (.203 x .500 x .032)WASHER, (.203 x .500 x .032)
-
2911-816874 WING NUTWING NUT
-
3016-824470 STUDSTUD
-
3127-134612 GASKETGASKET
-
3213460 COVERCOVER
-
3310-81742755 SCREW, (M8 x 55)SCREW, (M8 x 55)
-
3442963A11 REED BLOCK ASSEMBLYREED BLOCK ASSEMBLY
-
3527-139376 GASKETGASKET
-
3634-43018A1 REED SETREED SET
-
3714-429821 TAB WASHERTAB WASHER
-
3842924 RETAINERRETAINER
-
3910-4000171 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
4022-130351 FITTING, StraightFITTING, Straight
-
4132-1430165 TUBING, (38.00 Inches Bulk)TUBING, (38.00 Inches Bulk)
-
4222-13033 TEE FITTINGTEE FITTING
-
4310-82127335 SCREW, (M8 x 35 MM)SCREW, (M8 x 35 MM)
