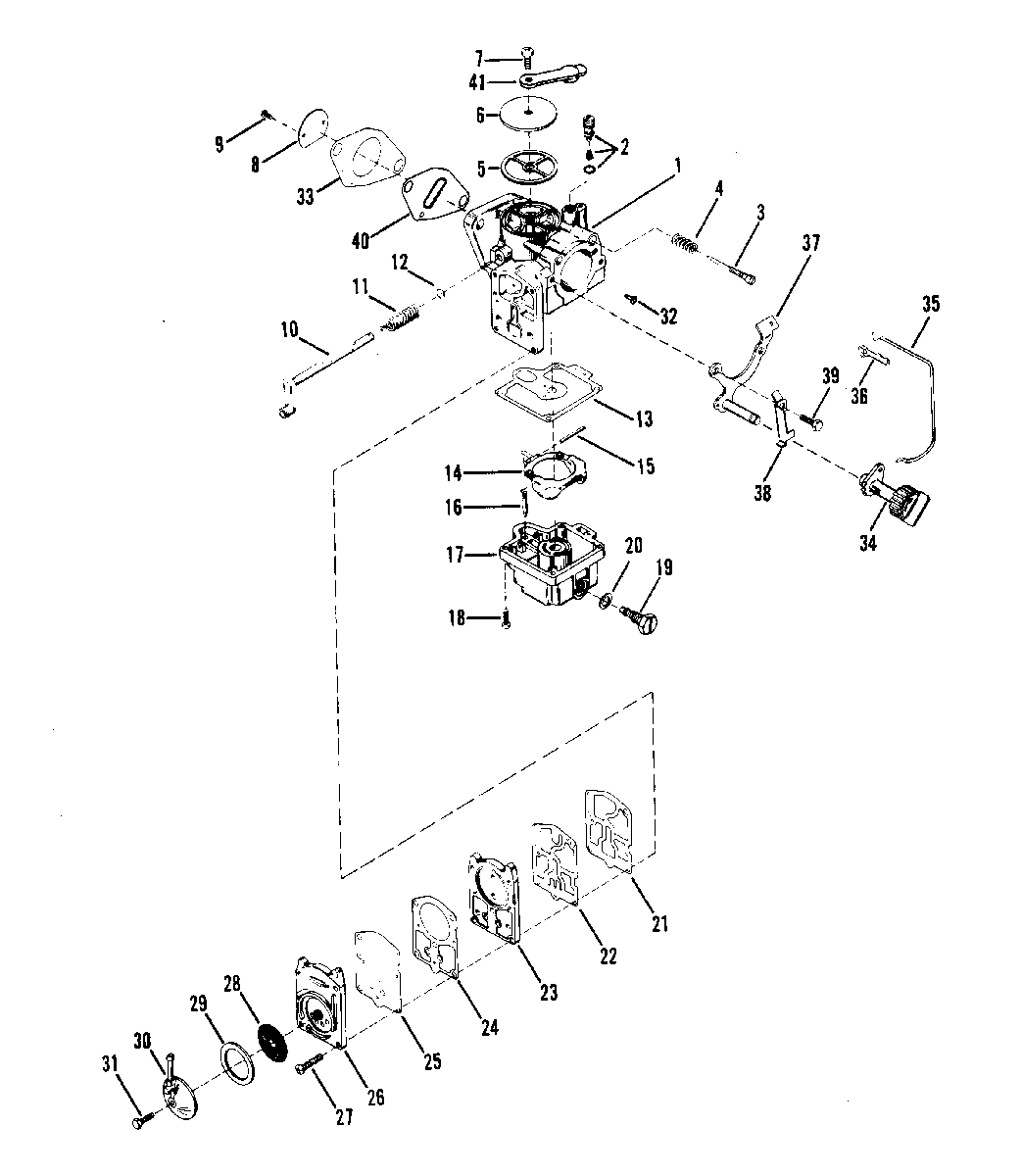

CARBURETOR ASSEMBLY - MERC 25 для Mercury - 18 6416713 THRU 6443972
-
№АртикулНазвание
-
11390-8677A5 CARBURETOR ASSEMBLY, TILLOTSON #BC1CCARBURETOR ASSEMBLY, TILLOTSON #BC1C
-
21399-8138 ENRICHMENT VALVEENRICHMENT VALVE
-
31399-1713 SCREW, IDLESCREW, IDLE
-
490-8M0143356 SPRING, IDLE SCREWSPRING, IDLE SCREW
-
590-8M0143356 GASKET, METERING COVERGASKET, METERING COVER
-
61399-8145 COVER, METERINGCOVER, METERING
-
71399-8146 SCREW, METERING COVERSCREW, METERING COVER
-
81399-8152 THROTTLE SHUTTERTHROTTLE SHUTTER
-
990-8M0143356 SCREW, THROTTLE SHUTTERSCREW, THROTTLE SHUTTER
-
101399-8151 THROTTLE SHAFTTHROTTLE SHAFT
-
1190-8M0143356 SPRING, RETURN - THROTTLE SHAFTSPRING, RETURN - THROTTLE SHAFT
-
1290-8M0143356 "E" RING, THROTTLE SHAFT"E" RING, THROTTLE SHAFT
-
1390-8M0143356 GASKET, FUEL BOWLGASKET, FUEL BOWL
-
141390-8676A13 FLOAT (BC1A AND BC1B)FLOAT (BC1A AND BC1B)
-
141399-8655 FLOAT (BC1C)FLOAT (BC1C)
-
1590-8M0143356 PIN, FLOATPIN, FLOAT
-
161399-8143 INLET NEEDLE AND SEATINLET NEEDLE AND SEAT
-
171399-8140 FUEL BOWL (BC1A AND BC1B)FUEL BOWL (BC1A AND BC1B)
-
171399-8656 FUEL BOWL (BC1C)FUEL BOWL (BC1C)
-
181399-8141 SCREW, FUEL BOWLSCREW, FUEL BOWL
-
191399-8178 MAIN JET AND "O" RING (.067)MAIN JET AND "O" RING (.067)
-
1916608063 MAIN JET AND "O" RING (.063)MAIN JET AND "O" RING (.063)
-
1916608065 MAIN JET AND "O" RING (.065)MAIN JET AND "O" RING (.065)
-
1916608070 MAIN JET AND "O" RING (.070)MAIN JET AND "O" RING (.070)
-
2090-8M0143356 GASKET, MAIN JETGASKET, MAIN JET
-
2190-8M0143356 GASKET, FUEL PUMP DIAPHRAGMGASKET, FUEL PUMP DIAPHRAGM
-
2290-8M0143356 DIAPHRAGM, FUEL PUMPDIAPHRAGM, FUEL PUMP
-
231399-8142 BODY, FUEL PUMPBODY, FUEL PUMP
-
2490-8M0143356 GASKET, FUEL PUMP DIAPHRAGMGASKET, FUEL PUMP DIAPHRAGM
-
2590-8M0143356 DIAPHRAGM, FUEL PUMPDIAPHRAGM, FUEL PUMP
-
261399-8147 BODY, STRAINERBODY, STRAINER
-
271399-8148 SCREW, STRAINER BODYSCREW, STRAINER BODY
-
281399-5758 SCREEN, STRAINERSCREEN, STRAINER
-
291399-5207 GASKET, STRAINER COVERGASKET, STRAINER COVER
-
3099941 COVER, STRAINERCOVER, STRAINER
-
311399-8150 SCREW, STRAINER COVERSCREW, STRAINER COVER
-
321395-6247 JET, BACK-DRAG (.090)JET, BACK-DRAG (.090)
-
321395-6202 JET, BACK-DRAG (.088)JET, BACK-DRAG (.088)
-
321395-5733 JET, BACK-DRAG (.092)JET, BACK-DRAG (.092)
-
3327-88004 GASKET, CARBURETORGASKET, CARBURETOR
-
3498183A1 CHOKE KNOB ASSEMBLYCHOKE KNOB ASSEMBLY
-
3589762 CHOKE RODCHOKE ROD
-
3654-89668 CLEVIS CLIP, CHOKE RODCLEVIS CLIP, CHOKE ROD
-
3789402A1 PLATE ASSEMBLY, CHOKE KNOB (MANUAL)PLATE ASSEMBLY, CHOKE KNOB (MANUAL)
-
3794301A1 PLATE ASSEMBLY, CHOKE KNOB (ELECTRIC)PLATE ASSEMBLY, CHOKE KNOB (ELECTRIC)
-
3892333 LINK, CHOKE DETENTLINK, CHOKE DETENT
-
3910-400018 SCREW, LINK AND PLATE TO CARBURETOR (12MM)SCREW, LINK AND PLATE TO CARBURETOR (12MM)
-
4096046 PLATE, CARBURETOR (ITALY ENGINES ONLY)PLATE, CARBURETOR (ITALY ENGINES ONLY)
-
4141434A1 COVER ASSEMBLY, ENRICHER VALVECOVER ASSEMBLY, ENRICHER VALVE
-
--1399-8153 REPAIR PARTS KIT
CONTENTS INDICATED BY FOOTNOTE 13.REPAIR PARTS KIT
CONTENTS INDICATED BY FOOTNOTE 13. -
--1399-8154 DIAPHRAGM AND GASKET KIT
CONTENTS INDICATED BY FOOTNOTE 14.DIAPHRAGM AND GASKET KIT
CONTENTS INDICATED BY FOOTNOTE 14. -
--27-41499A88 GASKET SET
CONTENTS INDICATED BY FOOTNOTE 15.GASKET SET
CONTENTS INDICATED BY FOOTNOTE 15.
