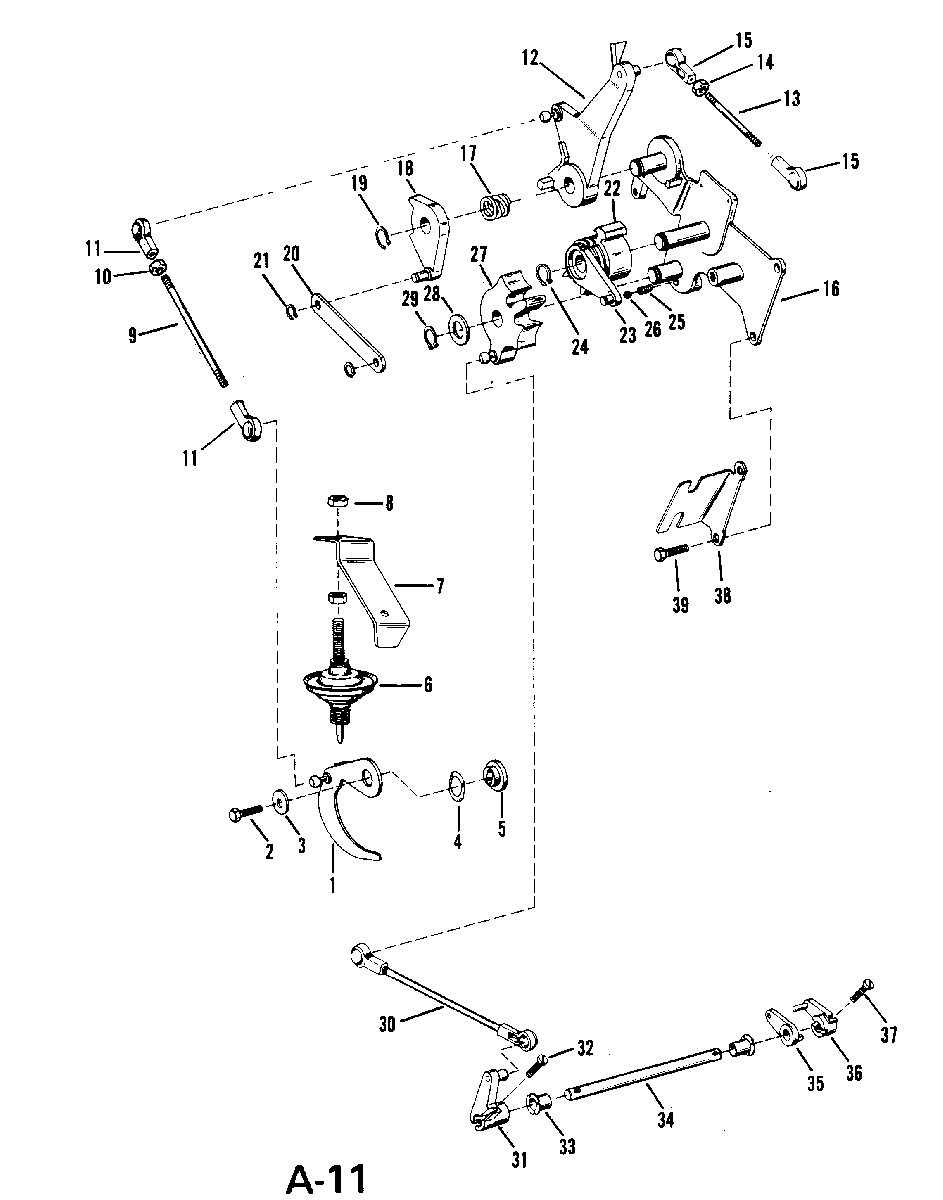

THROTTLE AND SHIFT LINKAGE (MANUAL) для Mercury - 18 6416713 THRU 6443972
-
№АртикулНазвание
-
196096 THROTTLE CAMTHROTTLE CAM
-
210-400035 SCREW, THROTTLE CAM TO CRANKCASE (16MM)SCREW, THROTTLE CAM TO CRANKCASE (16MM)
-
312-87791 WASHER, THROTTLE CAM SCREWWASHER, THROTTLE CAM SCREW
-
413-69150 WAVE WASHER, THROTTLE CAM SCREWWAVE WASHER, THROTTLE CAM SCREW
-
517764A2 BUSHING, THROTTLE CAM SCREWBUSHING, THROTTLE CAM SCREW
-
692425 DASHPOTDASHPOT
-
793001 BRACKET, DASHPOTBRACKET, DASHPOT
-
811-22053 NUT, DASHPOT TERMINALNUT, DASHPOT TERMINAL
-
998463A2 THROTTLE RODTHROTTLE ROD
-
1011-68219 NUT, LOCK - THROTTLE RODNUT, LOCK - THROTTLE ROD
-
118M0084742 SOCKET, THROTTLE RODSOCKET, THROTTLE ROD
-
1292730 LEVER, CONTROLLEVER, CONTROL
-
13817429 TIMING RODTIMING ROD
-
1411-68219 NUT, LOCK - TIMING RODNUT, LOCK - TIMING ROD
-
158M0084742 SOCKET, TIMING RODSOCKET, TIMING ROD
-
1612863A1 PLATFORM, CONTROLPLATFORM, CONTROL
-
1724-89540 SPRING, SPARK ADVANCESPRING, SPARK ADVANCE
-
1892362A1 LEVER, ACTUATINGLEVER, ACTUATING
-
1953-46250 RETAINING RING, ACTUATING AND CONTROL LEVERRETAINING RING, ACTUATING AND CONTROL LEVER
-
2092362A1 LINK, THROTTLE/ADVANCELINK, THROTTLE/ADVANCE
-
2153-86731 RETAINING RING, THROTTLE/ADVANCE LINKRETAINING RING, THROTTLE/ADVANCE LINK
-
2294085A1 GEARGEAR
-
2356849 LEVER, PRIMARYLEVER, PRIMARY
-
2453-46250 RETAINING RING, PRIMARY LEVER AND GEARRETAINING RING, PRIMARY LEVER AND GEAR
-
2524-930061 SPRING, DETENT BALLSPRING, DETENT BALL
-
2630-93008 BALL, DETENTBALL, DETENT
-
2794085A1 GEAR, SHIFTGEAR, SHIFT
-
2812-49339 WASHER, SHIFT GEARWASHER, SHIFT GEAR
-
2953-46250 RETAINING RING, SHIFT GEARRETAINING RING, SHIFT GEAR
-
30193852 SHIFT RODSHIFT ROD
-
3194084 LEVER, SHIFT RODLEVER, SHIFT ROD
-
3210-4001589 SCREW, SHIFT ROD LEVERSCREW, SHIFT ROD LEVER
-
3323-60762 BUSHING, SHIFT SHAFTBUSHING, SHIFT SHAFT
-
3487794 SHIFT SHAFT, HORIZONTALSHIFT SHAFT, HORIZONTAL
-
3593744 LEVER, SHIFT SHAFTLEVER, SHIFT SHAFT
-
3693928 LEVER, ROD ENDLEVER, ROD END
-
3710-4001588 SCREW, ROD END LEVERSCREW, ROD END LEVER
-
3894186 BRACKET, THROTTLE CABLEBRACKET, THROTTLE CABLE
-
3910-4000171 SCREW, BRACKET TO CYLINDER BLOCK (16MM)SCREW, BRACKET TO CYLINDER BLOCK (16MM)
