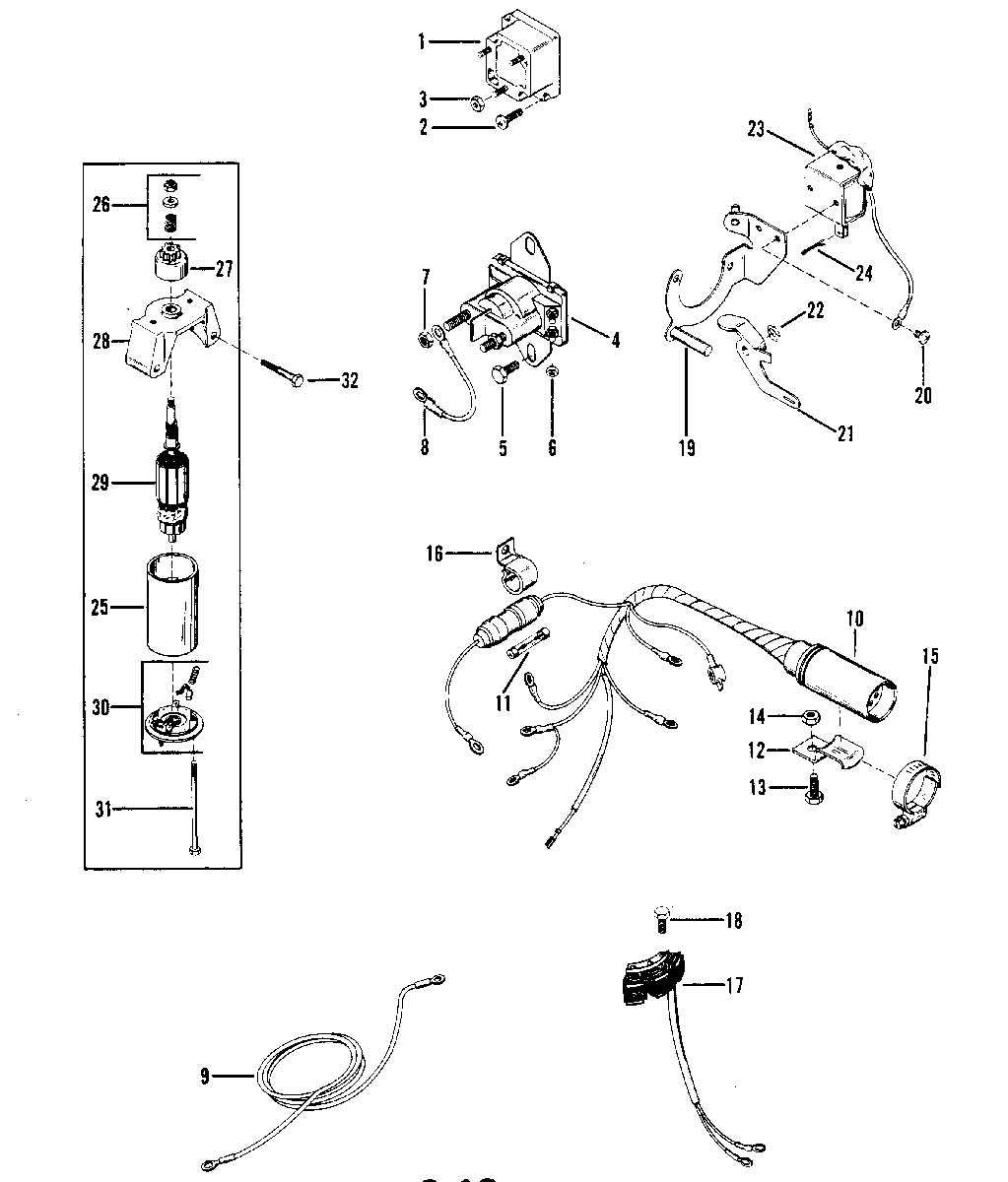

ELECTRIC COMPONENTS для Mercury - 18 6416713 THRU 6443972
-
№АртикулНазвание
-
18M0058226 RECTIFIER ASSEMBLYRECTIFIER ASSEMBLY
-
210-48409 SCREW, RECTIFIER TO CYLINDER BLOCKSCREW, RECTIFIER TO CYLINDER BLOCK
-
311-45076 NUT, RECTIFIER TERMINALSNUT, RECTIFIER TERMINALS
-
489-96054T STARTER SOLENOIDSTARTER SOLENOID
-
510-4000327 SCREW, STARTER SOLENOID TO CRANKCASE (14MM)SCREW, STARTER SOLENOID TO CRANKCASE (14MM)
-
611-26419 NUT, STARTER SOLENOID TERMINAL (10-32)NUT, STARTER SOLENOID TERMINAL (10-32)
-
711-64015 NUT, STARTER SOLENOID TERMINAL (1/4-20)NUT, STARTER SOLENOID TERMINAL (1/4-20)
-
884-88809A5 WIRE ASSEMBLY, YELLOWWIRE ASSEMBLY, YELLOW
-
984-88439A27 BATTERY WIRE ASSEMBLY, REDBATTERY WIRE ASSEMBLY, RED
-
984-88439A28 BATTERY WIRE ASSEMBLY, BLACKBATTERY WIRE ASSEMBLY, BLACK
-
1084-92436A5 WIRING HARNESS ASSEMBLY, ENGINEWIRING HARNESS ASSEMBLY, ENGINE
-
1188-95085 FUSEFUSE
-
1292439 BRACKET, WIRING HARNESSBRACKET, WIRING HARNESS
-
1310-4000327 SCREW, BRACKETSCREW, BRACKET
-
1411-400212 NUT, BRACKET SCREWNUT, BRACKET SCREW
-
1554-815504310 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
1654-55098 CLAMP, WIRING HARNESSCLAMP, WIRING HARNESS
-
1786704A10 STATOR ASSEMBLY, AUXILLARYSTATOR ASSEMBLY, AUXILLARY
-
1810-4000123 SCREW, STATOR ATTACHING (30MM)SCREW, STATOR ATTACHING (30MM)
-
1994301A1 PLATE ASSEMBLY, CHOKE KNOBPLATE ASSEMBLY, CHOKE KNOB
-
2010-95088 SCREW, PLATE TO SOLENOIDSCREW, PLATE TO SOLENOID
-
2195020 LEVER, CHOKELEVER, CHOKE
-
2253-95019 RETAINING RING, CHOKE LEVER TO PLATERETAINING RING, CHOKE LEVER TO PLATE
-
2389-94973A3 SOLENOID ASSEMBLYSOLENOID ASSEMBLY
-
2418-210711 COTTER PIN, CHOKE LEVER TO SOLENOIDCOTTER PIN, CHOKE LEVER TO SOLENOID
-
2550-8M0033984 STARTER MOTOR ASSEMBLYSTARTER MOTOR ASSEMBLY
-
2696561 DRIVE KITDRIVE KIT
-
2796562 DRIVEDRIVE
-
2896563T END CAPEND CAP
-
2996565 ARMATUREARMATURE
-
3096564T END CAP, COMMUTATOR W/SPRINGS AND BRUSHESEND CAP, COMMUTATOR W/SPRINGS AND BRUSHES
-
3110-96566 THRU BOLTTHRU BOLT
-
3210-4000358 SCREW, STARTER MOTOR ATTACHINGSCREW, STARTER MOTOR ATTACHING
