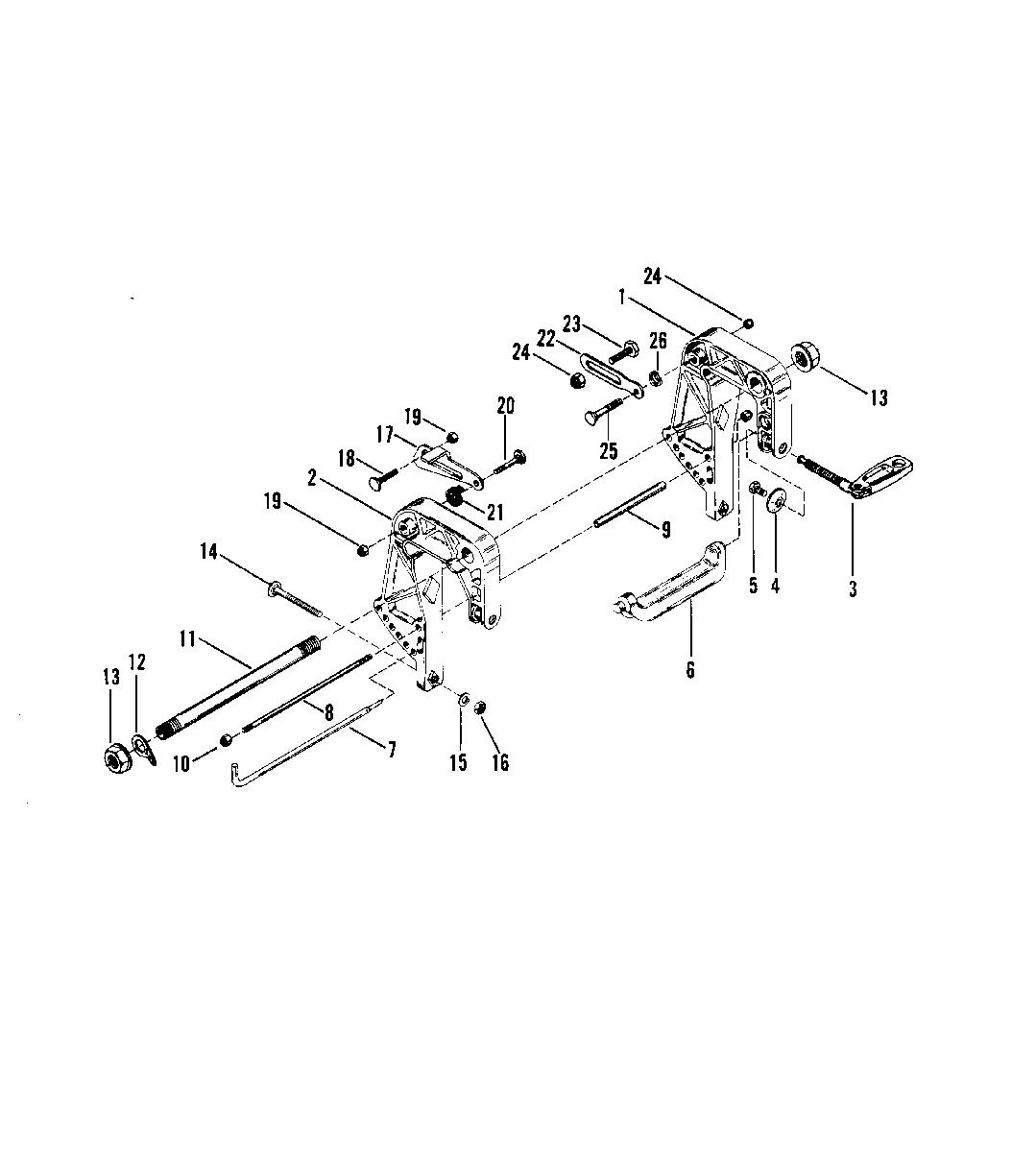

CLAMP BRACKET ASSEMBLY для Mercury - 18 6416713 THRU 6443972
-
№АртикулНазвание
-
11497-8794A5 CLAMP BRACKET ASSEMBLY (PORT)CLAMP BRACKET ASSEMBLY (PORT)
-
21497-8794A5 CLAMP BRACKET ASSEMBLY (STARBOARD)CLAMP BRACKET ASSEMBLY (STARBOARD)
-
310-92767A1 THUMB SCREW ASSEMBLYTHUMB SCREW ASSEMBLY
-
412-818884 WASHER, THUMB SCREWWASHER, THUMB SCREW
-
510-768042 SCREW, WASHER ATTACHINGSCREW, WASHER ATTACHING
-
641042 HANDLE, CARRYINGHANDLE, CARRYING
-
717-99929A1 TITL PIN ASSEMBLYTITL PIN ASSEMBLY
-
816-99928 STUD, CLAMP BRACKETSTUD, CLAMP BRACKET
-
923-41041 SPACER, CLAMP BRACKET STUDSPACER, CLAMP BRACKET STUD
-
1011-400213 NUT, CLAMP BRACKET STUDNUT, CLAMP BRACKET STUD
-
118M0035075 TILT TUBETILT TUBE
-
1254-8M0085928 CLIP, SAFETYCLIP, SAFETY
-
1311-93164 NUT, TILT TUBENUT, TILT TUBE
-
1410-69064 BOLT, CLAMP BRACKET TO TRANSOMBOLT, CLAMP BRACKET TO TRANSOM
-
1512-67981 WASHER, CLAMP BRACKET BOLTWASHER, CLAMP BRACKET BOLT
-
1611-82670910 NUT, CLAMP BRACKET BOLTNUT, CLAMP BRACKET BOLT
-
1796965 LEVER, TILT STOP - STARBOARD SIDELEVER, TILT STOP - STARBOARD SIDE
-
1810-41523 SCREW, LEVER TO SWIVEL BRACKETSCREW, LEVER TO SWIVEL BRACKET
-
1911-826709109 NUT, TILT STOP LEVER SCREWNUT, TILT STOP LEVER SCREW
-
2010-41524 SCREW, LEVER TO CLAMP BRACKETSCREW, LEVER TO CLAMP BRACKET
-
2124-44581 SPRING, TILT STOP LEVER SCREWSPRING, TILT STOP LEVER SCREW
-
2290901 STRAP, TILT STOP - PORT SIDESTRAP, TILT STOP - PORT SIDE
-
2310-41523 SCREW, STRAP TO SWIVEL BRACKETSCREW, STRAP TO SWIVEL BRACKET
-
2411-826709109 NUT, TILT STOP STRAP SCREWNUT, TILT STOP STRAP SCREW
-
2510-41524 SCREW, STRAP TO CLAMP BRACKETSCREW, STRAP TO CLAMP BRACKET
-
2613-31030 WAVE WASHER, TILT STOP STRAP SCREWWAVE WASHER, TILT STOP STRAP SCREW
