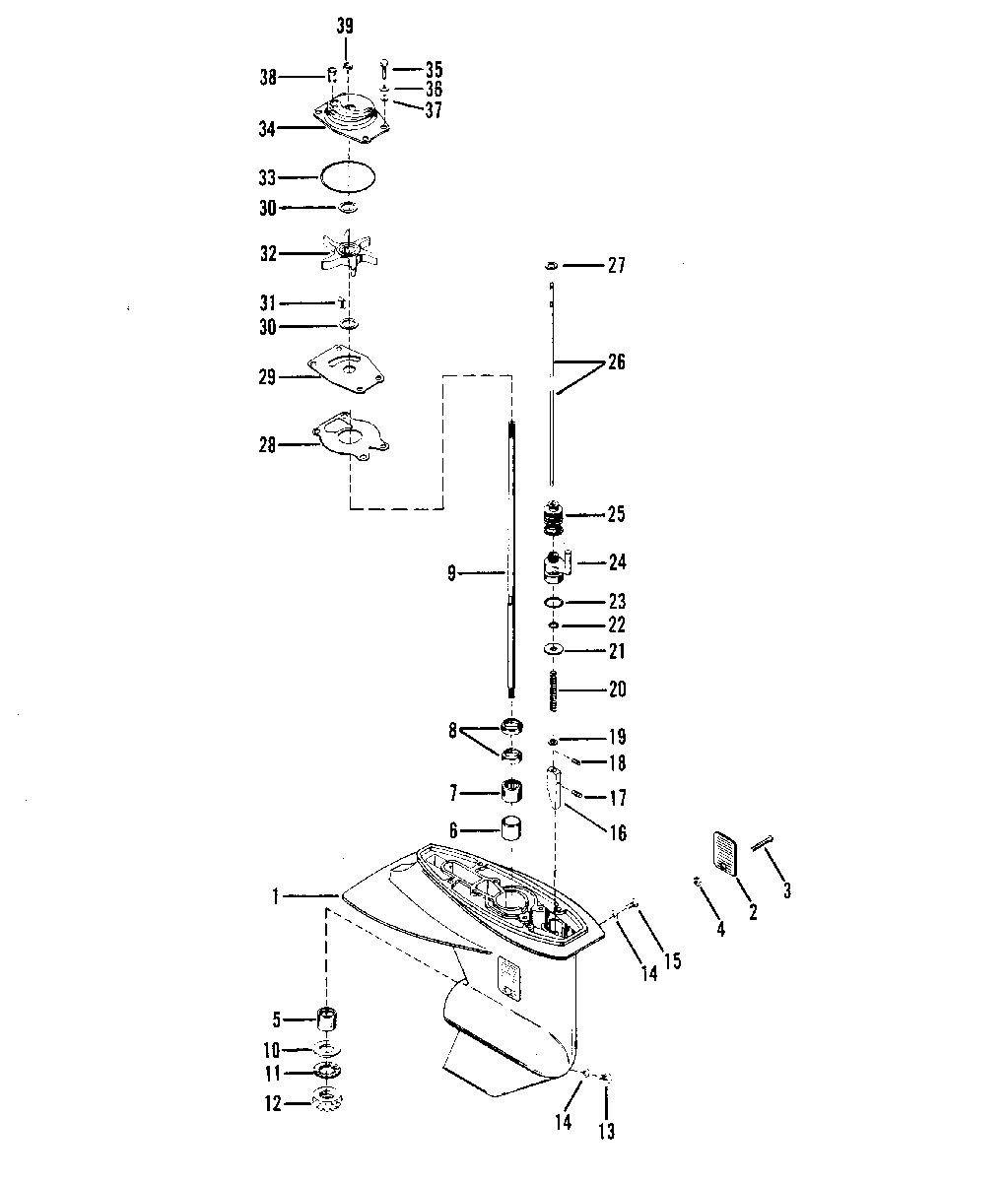

GEAR HOUSING (Drive Shaft) (Screw Inserted from Bottom) для Mercury - 18 6416713 THRU 6443972
-
№АртикулНазвание
-
-1665-8669T13 GEAR HOUSING ASSEMBLY, COMPLETE - SHORT SHAFTGEAR HOUSING ASSEMBLY, COMPLETE - SHORT SHAFT
-
-1665-8669T14 GEAR HOUSING ASSEMBLY, COMPLETE - LONG SHAFTGEAR HOUSING ASSEMBLY, COMPLETE - LONG SHAFT
-
11653-8157A6 GEAR HOUSING ASSEMBLYGEAR HOUSING ASSEMBLY
-
235-98488 SCREEN, WATER INLET - STARBOARDSCREEN, WATER INLET - STARBOARD
-
235-98487 SCREEN, WATER INLET - PORTSCREEN, WATER INLET - PORT
-
310-40031112 SCREW, SCREEN TO GEAR HOUSING (40MM)SCREW, SCREEN TO GEAR HOUSING (40MM)
-
411-400263 NUT, SCREEN SCREWNUT, SCREEN SCREW
-
531-85559 ROLLER BEARING, LOWER
?96524! THRUST WASHER (.234 THICK) IS SUPERSEDED BY ?98861A1! BUSHING KIT. ?31-85559! ROLLER BEARING AND ?31-85560! THRUST BEARING ARE NOT USED WITH THE BUSHING KIT.ROLLER BEARING, LOWER
?96524! THRUST WASHER (.234 THICK) IS SUPERSEDED BY ?98861A1! BUSHING KIT. ?31-85559! ROLLER BEARING AND ?31-85560! THRUST BEARING ARE NOT USED WITH THE BUSHING KIT. -
623-85092 SLEEVE, UPPER ROLLER BEARINGSLEEVE, UPPER ROLLER BEARING
-
731-85558 ROLLER BEARING, UPPERROLLER BEARING, UPPER
-
826-897154 SEAL, GEAR HOUSINGSEAL, GEAR HOUSING
-
945-98084 DRIVE SHAFT - SHORT SHAFTDRIVE SHAFT - SHORT SHAFT
-
945-98085 DRIVE SHAFT - LONG SHAFTDRIVE SHAFT - LONG SHAFT
-
1012-94056 WASHER, THRUST - DRIVE SHAFT (.080 THICK)WASHER, THRUST - DRIVE SHAFT (.080 THICK)
-
1098861A1 WASHER, THRUST - DRIVE SHAFT (.234 THICK)
?96524! THRUST WASHER (.234 THICK) IS SUPERSEDED BY ?98861A1! BUSHING KIT. ?31-85559! ROLLER BEARING AND ?31-85560! THRUST BEARING ARE NOT USED WITH THE BUSHING KITWASHER, THRUST - DRIVE SHAFT (.234 THICK)
?96524! THRUST WASHER (.234 THICK) IS SUPERSEDED BY ?98861A1! BUSHING KIT. ?31-85559! ROLLER BEARING AND ?31-85560! THRUST BEARING ARE NOT USED WITH THE BUSHING KIT -
1131-85560 THRUST BEARING, DRIVE SHAFT
?96524! THRUST WASHER (.234 THICK) IS SUPERSEDED BY ?98861A1! BUSHING KIT. ?31-85559! ROLLER BEARING AND ?31-85560! THRUST BEARING ARE NOT USED WITH THE BUSHING KITTHRUST BEARING, DRIVE SHAFT
?96524! THRUST WASHER (.234 THICK) IS SUPERSEDED BY ?98861A1! BUSHING KIT. ?31-85559! ROLLER BEARING AND ?31-85560! THRUST BEARING ARE NOT USED WITH THE BUSHING KIT -
1243-85132 PINION GEARPINION GEAR
-
1322-8M0058389 SCREW, DRAIN - MAGNETICSCREW, DRAIN - MAGNETIC
-
1412-191833 WASHER, DRAIN AND FILLER SCREWWASHER, DRAIN AND FILLER SCREW
-
1510-79953Q04 SCREW, GREASE FILLERSCREW, GREASE FILLER
-
1685562A1 CAM ASSEMBLY, SHIFTCAM ASSEMBLY, SHIFT
-
1717-85096 DRIVE PIN, SHIFT CAMDRIVE PIN, SHIFT CAM
-
1817-85593 ROLL PIN, SHIFT SHAFTROLL PIN, SHIFT SHAFT
-
1912-29245 WASHER, SHIFT SHAFTWASHER, SHIFT SHAFT
-
2024-93007 SPRING, SHIFT SHAFTSPRING, SHIFT SHAFT
-
2112-85091 WASHER, SHIFT SHAFTWASHER, SHIFT SHAFT
-
2225-85594 "O" RING, SHIFT SHAFT"O" RING, SHIFT SHAFT
-
2325-35276 "O" RING, SHIFT SHAFT RETAINER"O" RING, SHIFT SHAFT RETAINER
-
2493878 RETAINER, SHIFT SHAFTRETAINER, SHIFT SHAFT
-
2585552001 BOOT, SHIFT SHAFTBOOT, SHIFT SHAFT
-
2685126 SHIFT SHAFT - SHORT SHAFTSHIFT SHAFT - SHORT SHAFT
-
2686293 SHIFT SHAFT - LONG SHAFTSHIFT SHAFT - LONG SHAFT
-
2712-29245 WASHER, SHIFT SHAFT - UPPERWASHER, SHIFT SHAFT - UPPER
-
2827-993261 GASKET, WATER PUMPGASKET, WATER PUMP
-
2985083 FACE PLATEFACE PLATE
-
3012-8M0027721 WASHER, IMPELLERWASHER, IMPELLER
-
3128-8M0032838 KEY, IMPELLER DRIVEKEY, IMPELLER DRIVE
-
3247-8508910 IMPELLERIMPELLER
-
3325-69202 "O" RING"O" RING
-
3446-99157A02 WATER PUMPWATER PUMP
-
3510-400035 SCREW, WATER PUMPSCREW, WATER PUMP
-
3612-89302 WASHER, WATER PUMP SCREWWASHER, WATER PUMP SCREW
-
3723-85095 BUSHING, WATER PUMP SCREWBUSHING, WATER PUMP SCREW
-
3826-85090001 SEAL, WATER TUBESEAL, WATER TUBE
-
3925-86203 RING, DRIVE SHAFT - RUBBERRING, DRIVE SHAFT - RUBBER
-
--46-99157T2 WATER PUMP REPAIR KIT
CONTENTS INDICATED BY FOOTNOTE 11.WATER PUMP REPAIR KIT
CONTENTS INDICATED BY FOOTNOTE 11. -
--26-85090A1 SEAL REPAIR KIT
CONTENTS INDICATED BY FOOTNOTE 12.SEAL REPAIR KIT
CONTENTS INDICATED BY FOOTNOTE 12. -
--27-41499A88 GASKET SET
CONTENTS INDICATED BY FOOTNOTE 15.GASKET SET
CONTENTS INDICATED BY FOOTNOTE 15.
