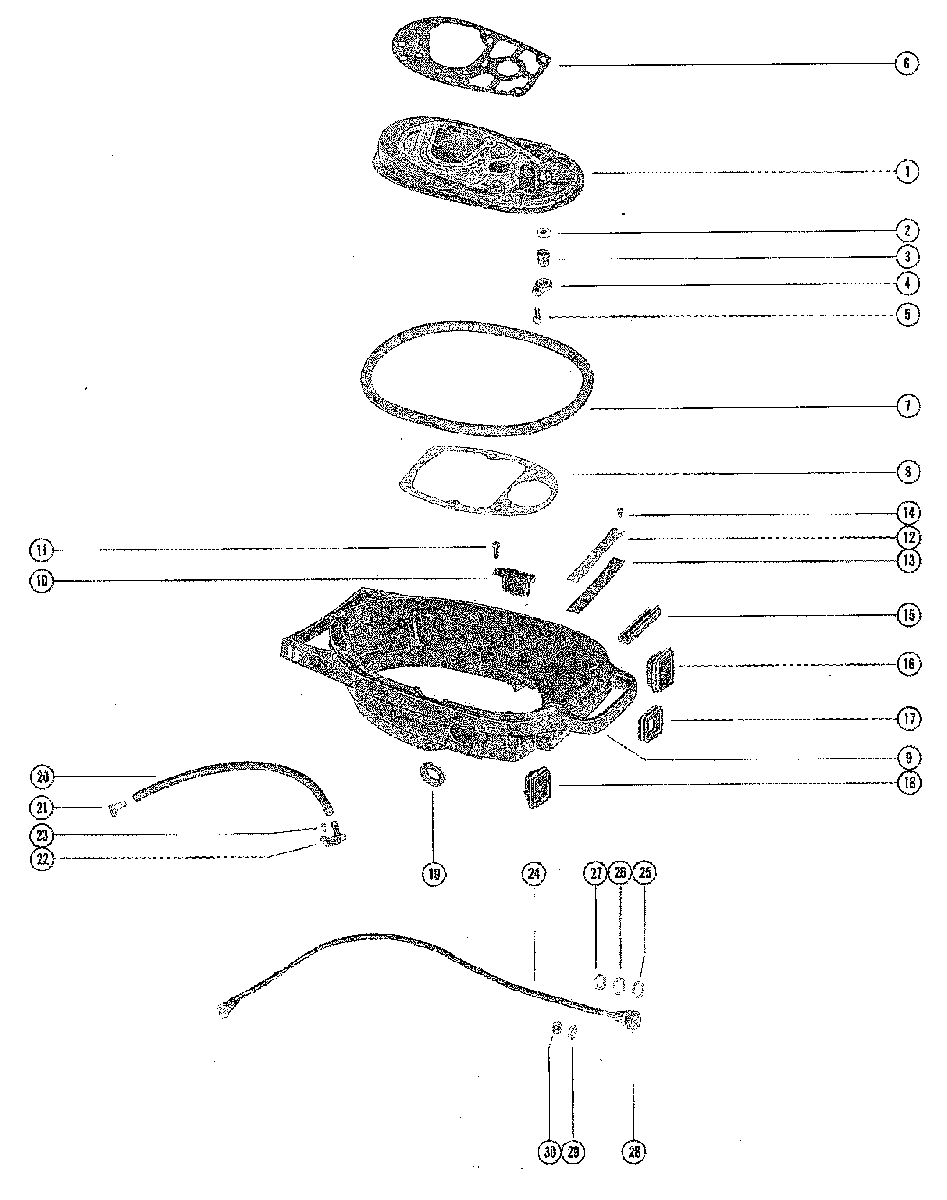

BOTTOM COWL ASSEMBLY для Mercury - 200 2827677 THRU 3226957
-
№АртикулНазвание
-
158978A2 PLATE ASSEMBLY, MOUNTING
SERIAL 02827677-02893435PLATE ASSEMBLY, MOUNTING
SERIAL 02827677-02893435 -
158978A2 PLATE ASSEMBLY, MOUNTING
SERIAL 02991679-09999999PLATE ASSEMBLY, MOUNTING
SERIAL 02991679-09999999 -
223-86215 WASHER, NYLON - WATER INLET TUBEWASHER, NYLON - WATER INLET TUBE
-
326-25329 SEAL , RUBBER - WATER INLET TUBESEAL , RUBBER - WATER INLET TUBE
-
433513 RETAINER, WATER INLET TUBE SEALRETAINER, WATER INLET TUBE SEAL
-
510-20540 SCREW, RETAINER TO MOUNTING PLATE (5/8")SCREW, RETAINER TO MOUNTING PLATE (5/8")
-
627-39401 GASKET, POWERHEAD TO MOUNTING PLATEGASKET, POWERHEAD TO MOUNTING PLATE
-
739622 SEAL, MOUNTING PLATE TO BOTTOM COWLSEAL, MOUNTING PLATE TO BOTTOM COWL
-
827-39402 GASKET, MOUNTING PLATE TO DRIVE SHAFT HOUSINGGASKET, MOUNTING PLATE TO DRIVE SHAFT HOUSING
-
92129-3956A2 BOTTOM COWL ASSEMBLY
SERIAL 02827677-02893435BOTTOM COWL ASSEMBLY
SERIAL 02827677-02893435 -
92129-6416A2 BOTTOM COWL ASSEMBLY
SERIAL 02991679-09999999BOTTOM COWL ASSEMBLY
SERIAL 02991679-09999999 -
1048472 COVER, HARNESS HOLECOVER, HARNESS HOLE
-
1110-20189 SCREW, COVER TO BOTTOM COWL (3/4")SCREW, COVER TO BOTTOM COWL (3/4")
-
1246266A2 COVER PLATE ASSEMBLY, BOTTOM COWLCOVER PLATE ASSEMBLY, BOTTOM COWL
-
1339591 PAD, SOUND - COVER PLATEPAD, SOUND - COVER PLATE
-
1410-62568 SCREW, COVER PLATE TO BOTTOM COWL(3/8")SCREW, COVER PLATE TO BOTTOM COWL(3/8")
-
1539630 CUSHION , RUBBER - BOTTOM COWLCUSHION , RUBBER - BOTTOM COWL
-
1660886 BOOT, THROTTLE CABLE - BOTTOM COWLBOOT, THROTTLE CABLE - BOTTOM COWL
-
1739778 BOOT, FUEL ADAPTOR - BOTTOM COWLBOOT, FUEL ADAPTOR - BOTTOM COWL
-
1839780 BOOT, SHIFT CABLE - BOTTOM COWLBOOT, SHIFT CABLE - BOTTOM COWL
-
1939058 SEAL, SHIFT HANDLE - BOTTOM COWLSEAL, SHIFT HANDLE - BOTTOM COWL
-
2032-8M0108355 HOSE, TELL TALE - COWL TO CYLINDER BLOCK (11")HOSE, TELL TALE - COWL TO CYLINDER BLOCK (11")
-
2122-996642 ELBOW, TELL TALE HOSE TO CYLINDER BLOCKELBOW, TELL TALE HOSE TO CYLINDER BLOCK
-
2252889 NOZZLE, TELL TALE HOSE TO BOTTOM COWL
PART OF BOTTOM COWL ASSEMBLYNOZZLE, TELL TALE HOSE TO BOTTOM COWL
PART OF BOTTOM COWL ASSEMBLY -
2310-41228 SCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")
PART OF BOTTOM COWL ASSEMBLYSCREW, TELL TALE NOZZLE TO BOTTOM COWL (1/2")
PART OF BOTTOM COWL ASSEMBLY -
2457186A4 STOP SWITCH ASSEMBLY
SERIAL 02827677-02893435STOP SWITCH ASSEMBLY
SERIAL 02827677-02893435 -
2512-38949 WASHER, SEALING - STOP SWITCH
SERIAL 02827677-02893435WASHER, SEALING - STOP SWITCH
SERIAL 02827677-02893435 -
2613-21972 LOCKWASHER, STOP SWITCH CONNECTOR
SERIAL 02827677-02893435LOCKWASHER, STOP SWITCH CONNECTOR
SERIAL 02827677-02893435 -
2711-21971 NUT, STOP SWITCH TO BOTTOM COWL
SERIAL 02827677-02893435NUT, STOP SWITCH TO BOTTOM COWL
SERIAL 02827677-02893435 -
2459065A1 STOP SWITCH ASSEMBLY
SERIAL 02991679-09999999STOP SWITCH ASSEMBLY
SERIAL 02991679-09999999 -
2512-59061 WASHER, STATOR LEAD TO STOP SWICH
SERIAL 02991679-09999999WASHER, STATOR LEAD TO STOP SWICH
SERIAL 02991679-09999999 -
2613-21972 LOCKWASHER, STOP SWITCH CONNECTOR
SERIAL 02991679-09999999LOCKWASHER, STOP SWITCH CONNECTOR
SERIAL 02991679-09999999 -
2711-21971 NUT, STOP SWITCH TO BOTTOM COWL
SERIAL 02991679-09999999NUT, STOP SWITCH TO BOTTOM COWL
SERIAL 02991679-09999999 -
2838950A1 COVER ASSEMBLY, STOP SWITCH
SERIAL 02991679-09999999COVER ASSEMBLY, STOP SWITCH
SERIAL 02991679-09999999 -
2913-26996 LOCKWASHER, STATOR LEAD NUT
SERIAL 02991679-09999999LOCKWASHER, STATOR LEAD NUT
SERIAL 02991679-09999999 -
3011-68219 NUT, STATOR LEAD TO STOP SWITCH
SERIAL 02991679-09999999NUT, STATOR LEAD TO STOP SWITCH
SERIAL 02991679-09999999
