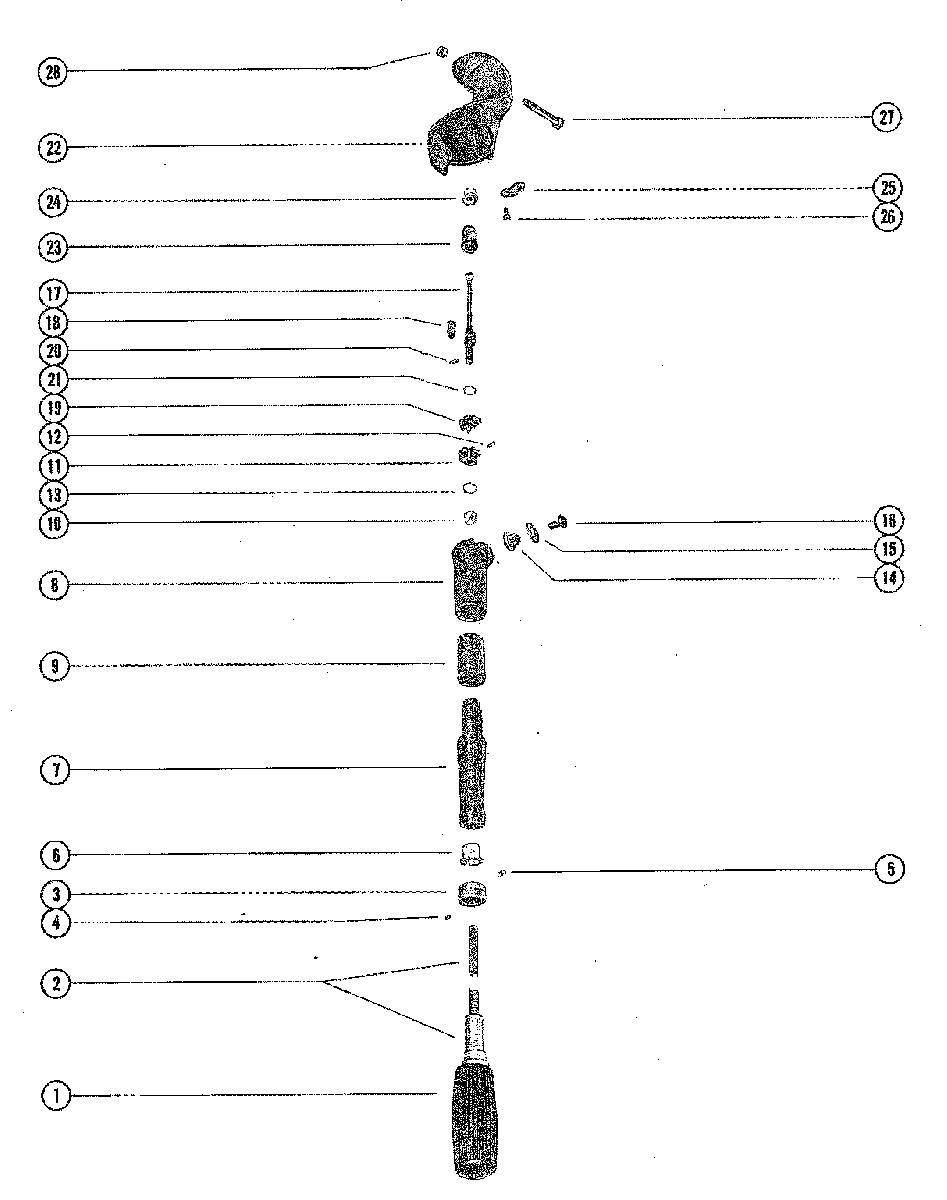

STEERING HANDLE ASSEMBLY для Mercury - 200 2827677 THRU 3226957
-
№АртикулНазвание
-
60850A6 STEERING HANDLE ASSEMBLY, COMPLETESTEERING HANDLE ASSEMBLY, COMPLETE
-
127763 GRIP, RUBBER - STEERING HANDLEGRIP, RUBBER - STEERING HANDLE
-
239352 BODY AND SHAFT, STEERING HANDLEBODY AND SHAFT, STEERING HANDLE
-
331001 INDICATOR, SPEED AND LIMIT - STEERING HANDLEINDICATOR, SPEED AND LIMIT - STEERING HANDLE
-
410-31002 SCREW, SET - SPEED AND SHIFT INDICATORSCREW, SET - SPEED AND SHIFT INDICATOR
-
510-22290 SCREW, DRIVE - INDICATOR TO STEERING HANDLE BODYSCREW, DRIVE - INDICATOR TO STEERING HANDLE BODY
-
623-30677 BUSHING NYLON - STEERING HANDLE TO BODYBUSHING NYLON - STEERING HANDLE TO BODY
-
749557 ARM, STEERINGARM, STEERING
-
849558 KNUCKLE, STEERING ARMKNUCKLE, STEERING ARM
-
923-49555 BUSHING, RUBBER - STEERING HANDLEBUSHING, RUBBER - STEERING HANDLE
-
1023-28100 BUSHING, NYLON - STERRING HANDLEBUSHING, NYLON - STERRING HANDLE
-
1143-53205 GEAR, BALL - STEERING HANDLE SHAFTGEAR, BALL - STEERING HANDLE SHAFT
-
1217-26862 PIN, BALL GEAR TO STEERING HANDLE SHAFTPIN, BALL GEAR TO STEERING HANDLE SHAFT
-
1353-53204 RING, RETAINING - BALL GEARRING, RETAINING - BALL GEAR
-
1448003 PIVOT, STEERING HANDLE TO BRACKETPIVOT, STEERING HANDLE TO BRACKET
-
1515-48002015 SHIM, STEERING HANDLE PIVOT TO BRACKET (.015)SHIM, STEERING HANDLE PIVOT TO BRACKET (.015)
-
1610-64074 SCREW, STEERING HANDLE TO ARM BRACKET (5/8")SCREW, STEERING HANDLE TO ARM BRACKET (5/8")
-
1747825A1 UNIVERSAL JOINT ASSEMBLYUNIVERSAL JOINT ASSEMBLY
-
1823-48005 SLEEVE, UNIVERSAL JOINTSLEEVE, UNIVERSAL JOINT
-
1943-53205 GEAR, BALL - UNIVERSAL JOINTGEAR, BALL - UNIVERSAL JOINT
-
2017-26862 PIN, BALL GEAR TO UNIVERSAL JOINTPIN, BALL GEAR TO UNIVERSAL JOINT
-
2153-53204 RING, RETINING - BALL GEARRING, RETINING - BALL GEAR
-
2261107A1 BRACKET, STEERING ARMBRACKET, STEERING ARM
-
2347743 BOOT, UNIVERSAL JOINTBOOT, UNIVERSAL JOINT
-
2423-47818 BUSHING, STEERING ARM BRACKETBUSHING, STEERING ARM BRACKET
-
2524-72847 SPRING, DETENT - STEERING HANDLESPRING, DETENT - STEERING HANDLE
-
2610-37571 SCREW, DETENT SPRING TO STEERING HANDLE (1/2")SCREW, DETENT SPRING TO STEERING HANDLE (1/2")
-
2710-26132 SCREW, STEERING ARM BRACKET TO SADDLE (2 1/2")SCREW, STEERING ARM BRACKET TO SADDLE (2 1/2")
-
2811-29250 NUT, STEERING ARM BRACKET FASTENING SCREWNUT, STEERING ARM BRACKET FASTENING SCREW
