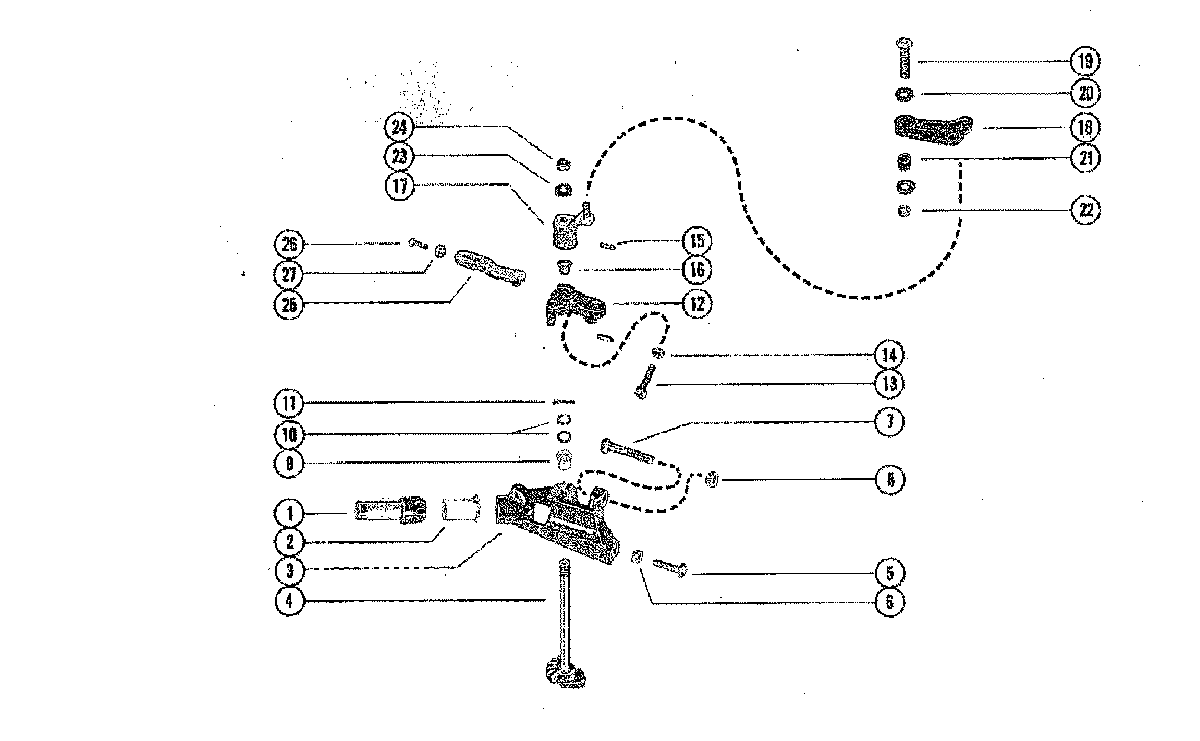

THROTTLE CONTROL LINKAGE для Mercury - 200 2827677 THRU 3226957
-
№АртикулНазвание
-
143-39478 GEAR, PINION - THROTTLE CONTROLGEAR, PINION - THROTTLE CONTROL
-
223-31011 BUSHING, NYLON - THROTTLE CONTROL HOUSINGBUSHING, NYLON - THROTTLE CONTROL HOUSING
-
376357 HOUSING, THROTTLE CONTROLHOUSING, THROTTLE CONTROL
-
443-60863 SHAFT AND GEAR, THROTTLESHAFT AND GEAR, THROTTLE
-
510-20653 SCREW, THROTTLE CONTROL HOUSING FASTENING (1")-LOWERSCREW, THROTTLE CONTROL HOUSING FASTENING (1")-LOWER
-
611-20184 NUT, THROTTLE CONTROL HOUSING SCREWNUT, THROTTLE CONTROL HOUSING SCREW
-
710-21091 SCREW, THROTTLE CONTROL HOUSING FASTENING (1 1/8") - UPPERSCREW, THROTTLE CONTROL HOUSING FASTENING (1 1/8") - UPPER
-
811-20184 NUT, THROTTLE CONTROL HOUSING SCREWNUT, THROTTLE CONTROL HOUSING SCREW
-
923-33462 BUSHING, NYLON - SHAFT AND GEAR (THROTTLE CONTROL HOUSING)BUSHING, NYLON - SHAFT AND GEAR (THROTTLE CONTROL HOUSING)
-
1012-20086 WASHER, THROTTLE SHAFT AND GEARWASHER, THROTTLE SHAFT AND GEAR
-
1117-48660 PIN, THROTTLE SHAFT AND GEARPIN, THROTTLE SHAFT AND GEAR
-
1246413 THROTTLE LEVER, VERTICAL SHAFTTHROTTLE LEVER, VERTICAL SHAFT
-
1310-22960 SCREW, VERTICAL SHAFT THROTTLE LEVER (1 3/8")SCREW, VERTICAL SHAFT THROTTLE LEVER (1 3/8")
-
1411-25168 NUT, VERTICAL SHAFT THROTTLE LEVER SCREWNUT, VERTICAL SHAFT THROTTLE LEVER SCREW
-
1517-24865 PIN, GROOVE - STATOR PLATE LEVER TO VERTICAL SHAFTPIN, GROOVE - STATOR PLATE LEVER TO VERTICAL SHAFT
-
1623-48661 BUSHING, CYLON - STATOR PLATE LEVERBUSHING, CYLON - STATOR PLATE LEVER
-
1760864 LEVER, STATOR PLATE - VERTICAL SHAFTLEVER, STATOR PLATE - VERTICAL SHAFT
-
1856700 LEVER, STATOR PLATE CONTROLLEVER, STATOR PLATE CONTROL
-
1910-22659 SCREW, STARTER HOUSING TO CRANKCASE (1 5/8")SCREW, STARTER HOUSING TO CRANKCASE (1 5/8")
-
2012-71055 WASHER, STARTER HOUSING SCREW(PART OF STARTER HOUSING ASSY)WASHER, STARTER HOUSING SCREW(PART OF STARTER HOUSING ASSY)
-
2123-46406 BUSHING, STATOR PLATE CONTROL LEVERBUSHING, STATOR PLATE CONTROL LEVER
-
2211-8267089 NUT, STARTER HOUSING TO CRANKCASE SCREWNUT, STARTER HOUSING TO CRANKCASE SCREW
-
2312-24664 WASHER, SHAFT AND GEARWASHER, SHAFT AND GEAR
-
2411-826709109 NUT, SHAFT AND GEARNUT, SHAFT AND GEAR
-
2546405 LINK, THROTTLE CLUSTERLINK, THROTTLE CLUSTER
-
2610-69011 SCREW, THROTTLE CLUSTER LINKSCREW, THROTTLE CLUSTER LINK
-
2711-68219 NUT, JAM - THROTTLE CLUSTER LINK SCREWNUT, JAM - THROTTLE CLUSTER LINK SCREW
Все узлы модели:
- BOTTOM COWL ASSEMBLY
- CARBURETOR ASSEMBLY
- CARBURETOR CHOKE LINKAGE
- CLAMP AND SWIVEL BRACKET ASSEMBLY
- CRANKSHAFT AND CENTER MAIN BEARING ASSEMBLY
- CYLINDER BLOCK AND CRANKCASE ASSEMBLY
- DRIVE SHAFT HOUSING ASSEMBLY
- FLYWHEEL, STATOR AND IGNITION COIL
- FUEL PUMP AND FUEL LINE ASSEMBLY
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 1)
- GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2)
- MISCELLANEOUS PARTS/ACCESSORIES
- PISTON AND CONNECTING ROD ASSEMBLY
- SHIFT CONTROL LINKAGE
- STEERING HANDLE ASSEMBLY
- • THROTTLE CONTROL LINKAGE
- TOP COWL AND STARTER ASSEMBLY
