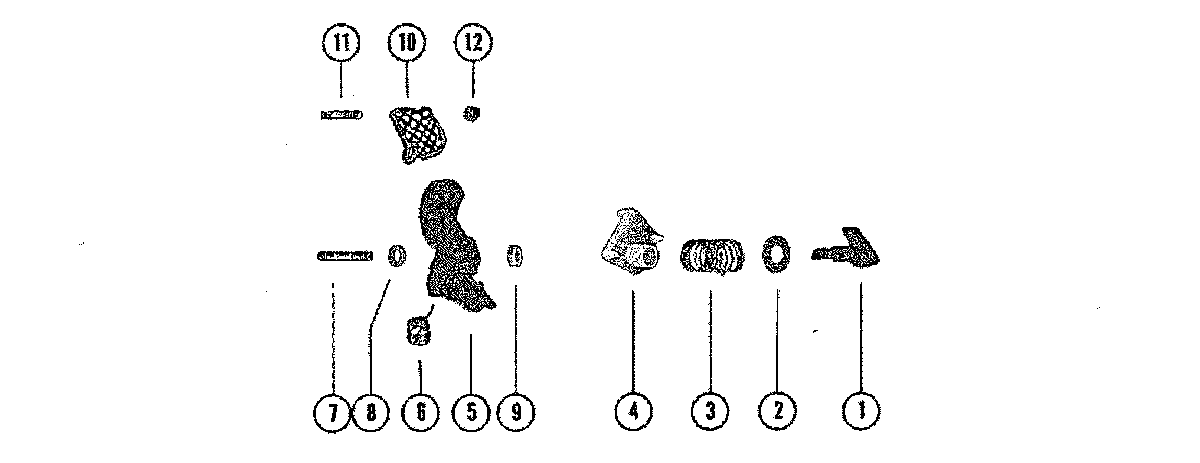

CARBURETOR CHOKE LINKAGE для Mercury - 200 2827677 THRU 3226957
-
№АртикулНазвание
-
147932 KNOB AND SHAFT, CHOKEKNOB AND SHAFT, CHOKE
-
212-30314 WASHER, NYLON - CHOKE KNOB AND SHAFTWASHER, NYLON - CHOKE KNOB AND SHAFT
-
324-47968 SPRING, TENSION - CHOKE KNOB AND SHAFTSPRING, TENSION - CHOKE KNOB AND SHAFT
-
447933 LEVER, CHOKE SHUTTERLEVER, CHOKE SHUTTER
-
561105A1 SHUTTER, CHOKE - CARBURETORSHUTTER, CHOKE - CARBURETOR
-
624-47898 SPRING, TORSION - CHOKE SHUTTER TENSIONSPRING, TORSION - CHOKE SHUTTER TENSION
-
716-53050 STUD, CHOKE SHUTTER TO CARBURETOR (1 7/16")STUD, CHOKE SHUTTER TO CARBURETOR (1 7/16")
-
812-47960 WASHER, CHOKE SHUTTER STUDWASHER, CHOKE SHUTTER STUD
-
911-20110 NUT, CHOKE SHUTTER STUDNUT, CHOKE SHUTTER STUD
-
1035-53596 SCREEN, FILTER - CARBURETORSCREEN, FILTER - CARBURETOR
-
1116-69037 STUD, CARBURETOR SCREEN TO CARBURETOR (1 1/16")STUD, CARBURETOR SCREEN TO CARBURETOR (1 1/16")
-
1211-20110 NUT, CARBURETOR SCREEN STUDNUT, CARBURETOR SCREEN STUD
