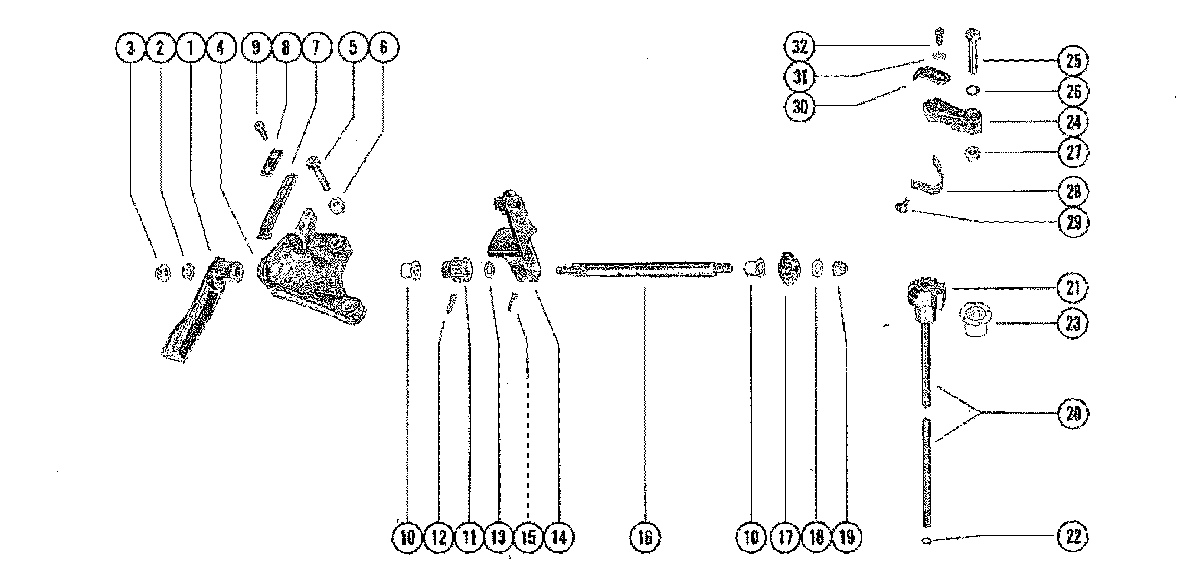

SHIFT CONTROL LINKAGE для Mercury - 200 2827677 THRU 3226957
-
№АртикулНазвание
-
159107 HANDLE, NYLON - SHIFT CONTROL
SERIAL 02827677-02893435HANDLE, NYLON - SHIFT CONTROL
SERIAL 02827677-02893435 -
159107 HANDLE, NYLON - SHIFT CONTROL
SERIAL 02991679-09999999HANDLE, NYLON - SHIFT CONTROL
SERIAL 02991679-09999999 -
212-29245 WASHER, SHIFT CONTROL HANDLEWASHER, SHIFT CONTROL HANDLE
-
311-826709109 NUT, SHIFT CONTROL HANDLE TO SHIFT SHAFTNUT, SHIFT CONTROL HANDLE TO SHIFT SHAFT
-
464122 BRACKET, MOUNTING - SHIFT SHAFTBRACKET, MOUNTING - SHIFT SHAFT
-
510-56500 SCREW, MOUNTING BRACKET TO POWERHEAD PLATE (1 1/4")SCREW, MOUNTING BRACKET TO POWERHEAD PLATE (1 1/4")
-
611-20184 NUT, MOUNTING BRACKET SCREWNUT, MOUNTING BRACKET SCREW
-
724-39627 SPRING, DETENT - MOUNTING BRACKETSPRING, DETENT - MOUNTING BRACKET
-
839601 PLATE, DETENT SPRINGPLATE, DETENT SPRING
-
910-69022 SCREW, PLATE AND SPRING TO MOUNTING BRACKET (1/2")SCREW, PLATE AND SPRING TO MOUNTING BRACKET (1/2")
-
1023-30678 BUSHING, NYLON - SHIFT SHAFTBUSHING, NYLON - SHIFT SHAFT
-
1139588 CAM, DETENT - SHIFT SHAFTCAM, DETENT - SHIFT SHAFT
-
1217-25905 PIN, ROLL - DETENT CAM TO SHIFT SHAFTPIN, ROLL - DETENT CAM TO SHIFT SHAFT
-
1313-36206 WASHER, WAVE - SHIFT SHAFTWASHER, WAVE - SHIFT SHAFT
-
1439415 LEVER, SHIFT CONTROLLEVER, SHIFT CONTROL
-
1517-25905 PIN, ROLL - SHIFT CONTROL LEVER TO SHIFT SHAFTPIN, ROLL - SHIFT CONTROL LEVER TO SHIFT SHAFT
-
1639632 SHAFT, SHIFT (HORIZONTAL)SHAFT, SHIFT (HORIZONTAL)
-
1743-30802 GEAR, SECTOR - SHIFT SHAFT
SERIAL 02827677-02893435GEAR, SECTOR - SHIFT SHAFT
SERIAL 02827677-02893435 -
1743-30802 GEAR, SECTOR - SHIFT SHAFT
SERIAL 02991679-09999999GEAR, SECTOR - SHIFT SHAFT
SERIAL 02991679-09999999 -
1812-29245 WASHER, SHIFT SHAFTWASHER, SHIFT SHAFT
-
1911-8267089 NUT, SECTOR GEAR TO SHIFT SHAFTNUT, SECTOR GEAR TO SHIFT SHAFT
-
2061009A2 SHIFT CONTROL SHAFT ASSEMBLY, VERTICAL
SERIAL 02827677-02893435SHIFT CONTROL SHAFT ASSEMBLY, VERTICAL
SERIAL 02827677-02893435 -
2143-39477 GEAR, SECTOR - SHIFT CONTROL SHAFT
SERIAL 02827677-02893435GEAR, SECTOR - SHIFT CONTROL SHAFT
SERIAL 02827677-02893435 -
2061009A1 SHIFT CONTROL SHAFT ASSEMBLY, VERTICAL
SERIAL 02991679-09999999SHIFT CONTROL SHAFT ASSEMBLY, VERTICAL
SERIAL 02991679-09999999 -
2143-58972 GEAR, SECTOR - SHIFT CONTROL SHAFT
SERIAL 02991679-09999999GEAR, SECTOR - SHIFT CONTROL SHAFT
SERIAL 02991679-09999999 -
2225-38933 "O" RING, SHIFT CONTROL SHAFT"O" RING, SHIFT CONTROL SHAFT
-
2323-30677 BUSHING, NYLON - SHIFT CONTROL SHAFTBUSHING, NYLON - SHIFT CONTROL SHAFT
-
2458979 FOLLOWER, NEUTRAL SPEED LIMITER
SERIAL 02827677-02893435FOLLOWER, NEUTRAL SPEED LIMITER
SERIAL 02827677-02893435 -
2458979 FOLLOWER, NEUTRAL SPEED LIMITER
SERIAL 02991679-09999999FOLLOWER, NEUTRAL SPEED LIMITER
SERIAL 02991679-09999999 -
2510-24644 SCREW, FOLLOWER TO POWERHEAD MOUNTING PLATE (1 3/4")SCREW, FOLLOWER TO POWERHEAD MOUNTING PLATE (1 3/4")
-
2615-28212 SHIM, LIMITER FOLOWER SCREWSHIM, LIMITER FOLOWER SCREW
-
2711-20184 NUT, LIMITER FOLLOWER SCREWNUT, LIMITER FOLLOWER SCREW
-
2824-39675 SPRING, NEUTRAL SPEED LIMITER FOLLOWERSPRING, NEUTRAL SPEED LIMITER FOLLOWER
-
2910-62568 SCREW, SPRING TO LIMITER FOLLOWER (3/8")SCREW, SPRING TO LIMITER FOLLOWER (3/8")
-
3072857 STOP, OVER-SPEED LIMITERSTOP, OVER-SPEED LIMITER
-
3112-24676 WASHER, LIMITER STOP SCREWWASHER, LIMITER STOP SCREW
-
3210-35400 SCREW, LIMITER STOP TO FOLLOWER (7/16")SCREW, LIMITER STOP TO FOLLOWER (7/16")
