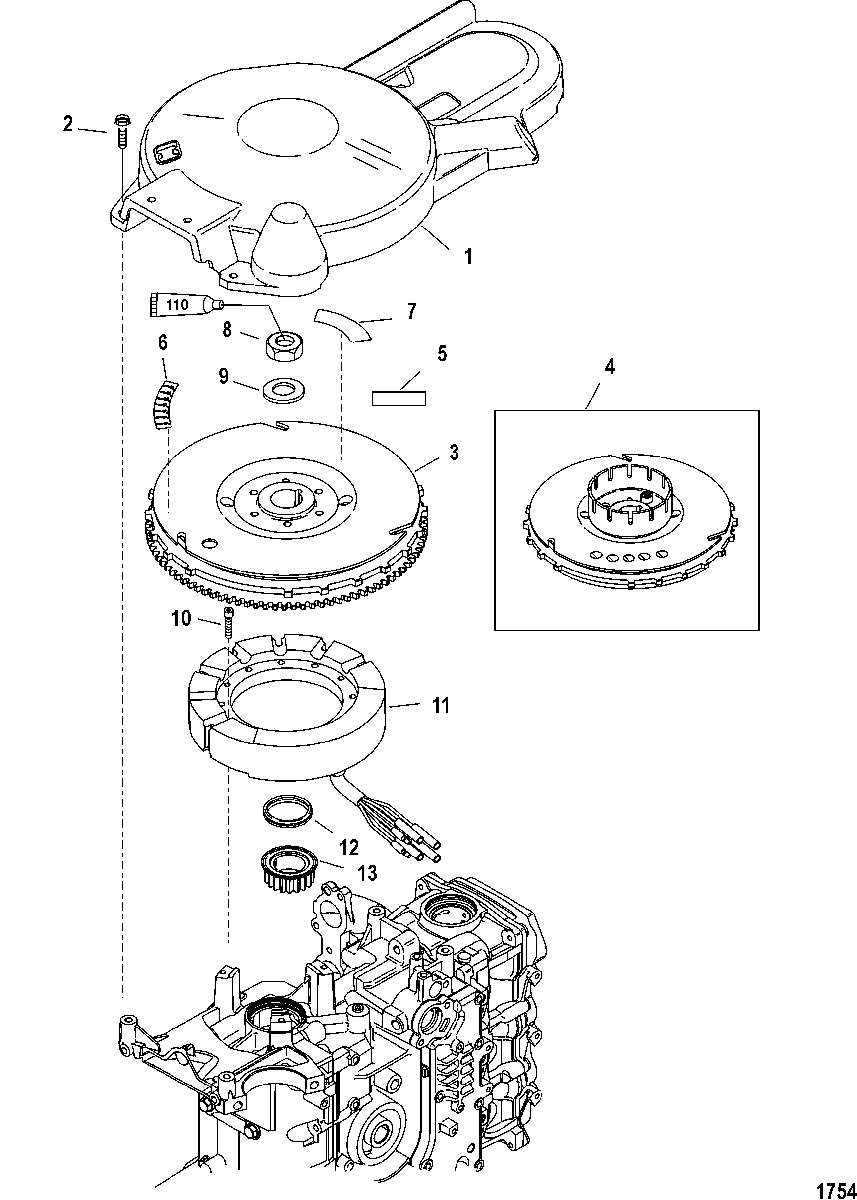

Flywheel для Mercury - 25 (4-STROKE) 0P153500 THRU 0P388282
-
№АртикулНазвание
-
1859284T2 FLYWHEEL COVER
(ELECTRIC)FLYWHEEL COVER
(ELECTRIC) -
210-8248326 SCREW, (M6 x 25 MM)
(ELECTRIC)SCREW, (M6 x 25 MM)
(ELECTRIC) -
3284-832010T32 FLYWHEEL
(ELECTRIC)FLYWHEEL
(ELECTRIC) -
4200-8M0118174 FLYWHEEL
(MANUAL)FLYWHEEL
(MANUAL) -
5NSS NOT SOLD SEPARATE, Decal-Warning-Spinning FlywheelNOT SOLD SEPARATE, Decal-Warning-Spinning Flywheel
-
6NSS NOT SOLD SEPARATE, Decal-Timing MarksNOT SOLD SEPARATE, Decal-Timing Marks
-
7NSS NOT SOLD SEPARATE, Decal-Warning-NeutralNOT SOLD SEPARATE, Decal-Warning-Neutral
-
811-893789 NUTNUT
-
912-893762 WASHERWASHER
-
1010-4007325 SCREW, (M5 x 25)SCREW, (M5 x 25)
-
1010-4013930 SCREW, (M5 x 30)SCREW, (M5 x 30)
-
11398-852386T6 STATOR
(MANUAL)STATOR
(MANUAL) -
11398-852387T7 STATOR
(ELECTRIC)STATOR
(ELECTRIC) -
12834838 LOAD RINGLOAD RING
-
13833102T GEAR, DriveGEAR, Drive
-
-61-854236T00 POWERHEAD ASSEMBLYPOWERHEAD ASSEMBLY
Все узлы модели:
- Accessories
- Adaptor Plate
- Bottom Cowl
- Camshaft/Oil Pump
- Carburetor
- Clamp Bracket
- Clamp Bracket(Remote Control)
- Crankshaft
- Cylinder Block
- Cylinder Head
- Driveshaft Housing
- Electrical Components
- • Flywheel
- Fuel Pump
- Gear Housing(Driveshaft)(2.41:1 Gear Ratio)
- Gear Housing(PROPELLER SHAFT)(2.41:1 GEAR RATIO)
- Intake
- Intake/Exhaust Valves
- Linkage
- Manual Starter
- Power Trim
- Power Trim Mounting
- Powerhead Gasket Set Components
- Service/Support Material
- Starter Motor
- Steering Arm
- Swivel Bracket
- Swivel Bracket(Remote Control)
- Tiller Handle
- Tools, Special
- Top Cowl
