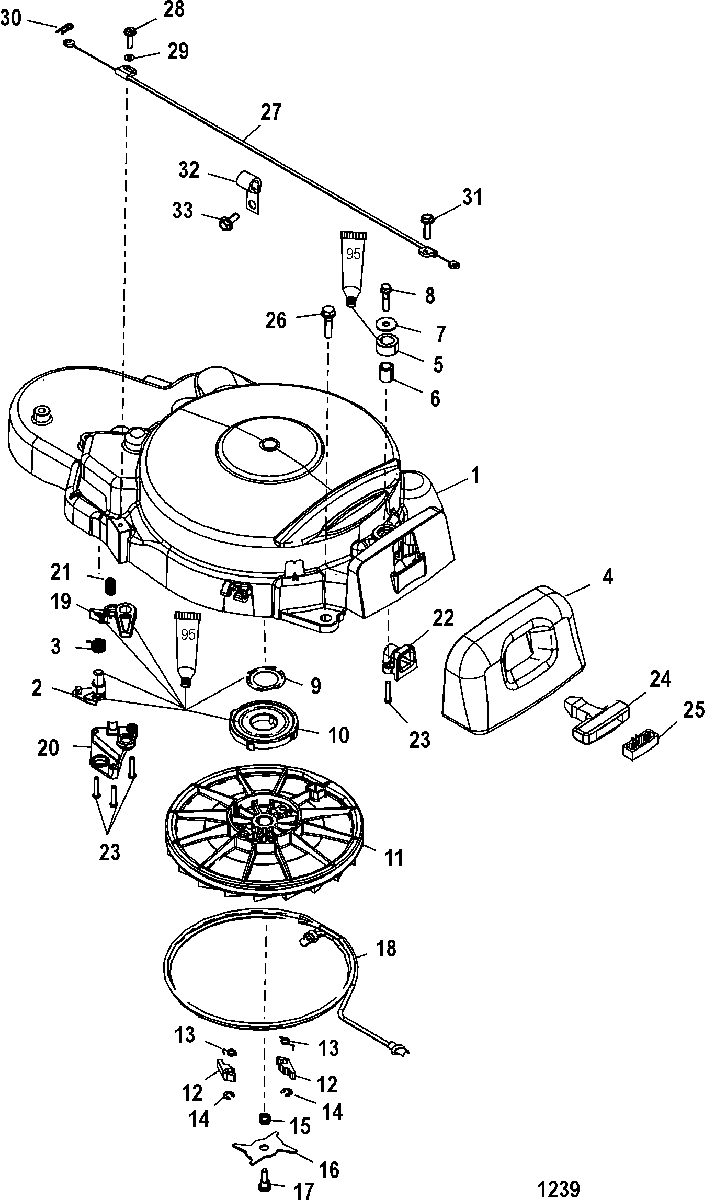

Manual Starter для Mercury - 25 (4-STROKE) 0P153500 THRU 0P388282

№

Артикул

Название
-

835253A13 STARTER ASSEMBLY, Recoil
SN# USA-0T901306/BEL-0P294183 & Below

STARTER ASSEMBLY, Recoil
SN# USA-0T901306/BEL-0P294183 & Below

38 660 ₽
-

835253A13 STARTER ASSEMBLY, Recoil
SN# USA-0T901307/BEL-0P294184 & Up

STARTER ASSEMBLY, Recoil
SN# USA-0T901307/BEL-0P294184 & Up

38 660 ₽
1

835253A12 HOUSING ASSEMBLY, Recoil
SN# USA-0T901306/BEL-0P294183 & Below

HOUSING ASSEMBLY, Recoil
SN# USA-0T901306/BEL-0P294183 & Below

13 680 ₽
1

835253A12 HOUSING ASSEMBLY, Recoil
SN# USA-0T901307/BEL-0P294184 & Up

HOUSING ASSEMBLY, Recoil
SN# USA-0T901307/BEL-0P294184 & Up

13 680 ₽
2

8167122 CAM

CAM

1 560 ₽
3

24-8267911 SPRING

SPRING

640 ₽
4

8M0026455 SEAL

SEAL

6 070 ₽
5

835256T ROLLER

ROLLER

600 ₽
6

23-852987T BUSHING

BUSHING

730 ₽
7

826414T WASHER

WASHER

220 ₽
8

10-82684430 SCREW, (M6 x 30)

SCREW, (M6 x 30)

210 ₽
9

13-826229 LOCKWASHER

LOCKWASHER

1 260 ₽
10

24-86857T01 SPRING

SPRING

3 850 ₽
11

50-854317T5 SHEAVE ASSEMBLY, Starter

SHEAVE ASSEMBLY, Starter

6 250 ₽
12

868501 CAM

CAM

810 ₽
13

24-86851T02 SPRING

SPRING

320 ₽
14

53-86849T01 RING, Retaining

RING, Retaining

360 ₽
15

24-868523 SPRING

SPRING

460 ₽
16

86853T01 CAM

CAM

570 ₽
17

10-826253 SCREW, (.250-20 x .625)

SCREW, (.250-20 x .625)

260 ₽
18

50-12066Q10 ROPE

ROPE

1 030 ₽
19

856073 LEVER, Interlock

LEVER, Interlock

2 030 ₽
20

856072T RETAINER

RETAINER

820 ₽
21

24-856138T03 SPRING

SPRING

500 ₽
22

854779T BUSHING

BUSHING

2 200 ₽
23

10-8182491 SCREW, (#10-16 x 1.00)

SCREW, (#10-16 x 1.00)

260 ₽
24

85174A1 HANDLE ASSEMBLY

HANDLE ASSEMBLY

1 640 ₽
25

NSS NOT SOLD SEPARATE, Retainer

NOT SOLD SEPARATE, Retainer

0 ₽
26

10-8248326 SCREW, (M6 x 25 MM)

SCREW, (M6 x 25 MM)

130 ₽
27

856754 CABLE, Interlock
SN# USA-0T901306/BEL-0P294183 & Below

CABLE, Interlock
SN# USA-0T901306/BEL-0P294183 & Below

2 790 ₽
27

856754003 CABLE, Interlock
SN# USA-0T901307/BEL-0P294184 & Up

CABLE, Interlock
SN# USA-0T901307/BEL-0P294184 & Up

2 520 ₽
28

10-8214281 SCREW, (#10-16 x .625)
SN# USA-0T901306/BEL-0P294183 & Below

SCREW, (#10-16 x .625)
SN# USA-0T901306/BEL-0P294183 & Below

130 ₽
28

10-40011107 SCREW, (M5 x 16) Stainless Steel
SN# USA-0T901307/BEL-0P294184 & Up

SCREW, (M5 x 16) Stainless Steel
SN# USA-0T901307/BEL-0P294184 & Up

110 ₽
29

12-73288 WASHER, (.220 x .500 x .030) Stainless Steel

WASHER, (.220 x .500 x .030) Stainless Steel

50 ₽
30

18-26811 COTTER PIN

COTTER PIN

110 ₽
31

10-40011107 SCREW, (M5 x 16) Stainless Steel

SCREW, (M5 x 16) Stainless Steel

110 ₽
32

54-54457 J CLIP

J CLIP

280 ₽
33

10-4006731 SCREW, (M6 x 16)

SCREW, (M6 x 16)

170 ₽
