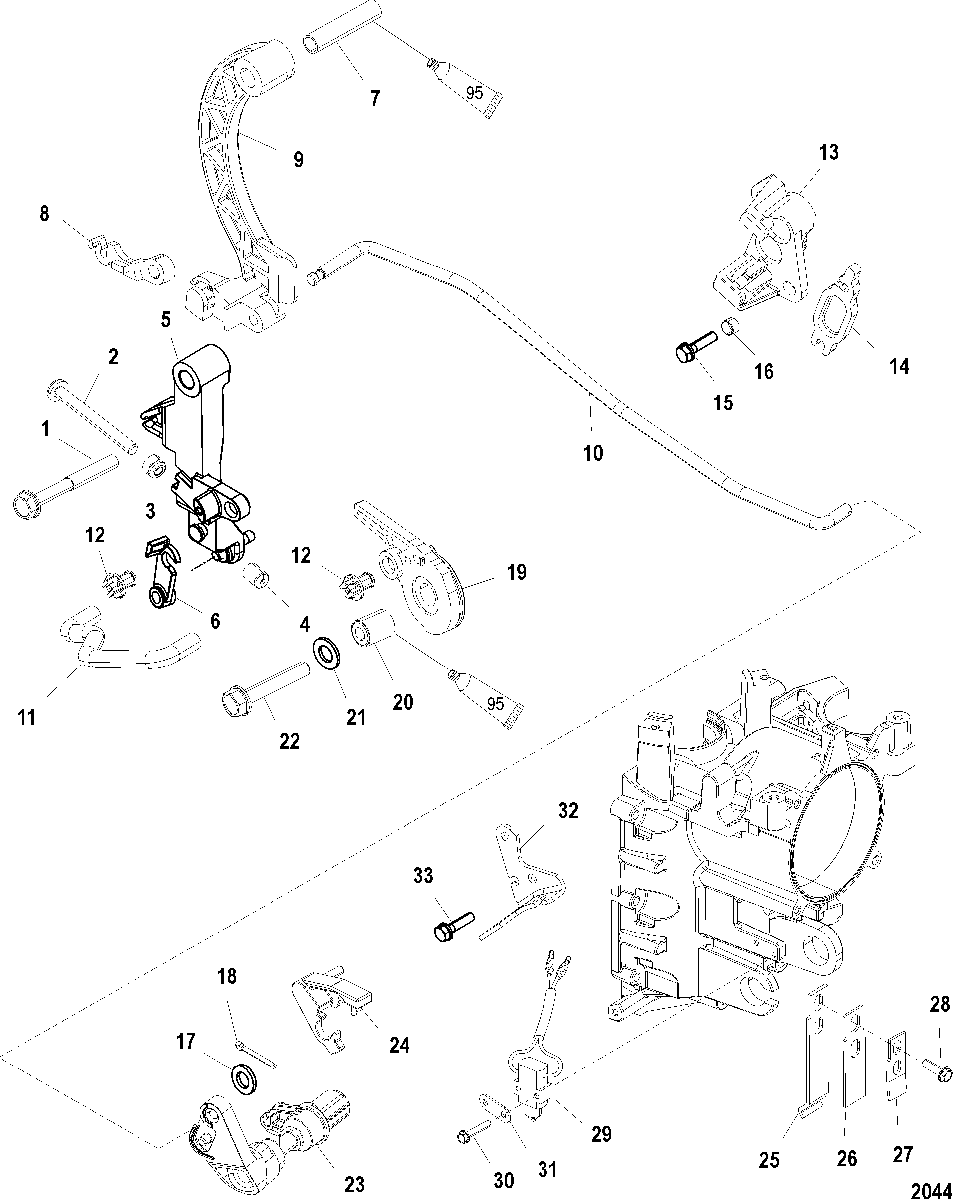

Linkage для Mercury - 25 (4-STROKE) 0P153500 THRU 0P388282

№

Артикул

Название
1

10-40011158 SCREW, (M8 x 70) Stainless Steel
(ELECTRIC NON HANDLE)

SCREW, (M8 x 70) Stainless Steel
(ELECTRIC NON HANDLE)

550 ₽
2

10-8147763 SCREW, (M6 x 60)
(ELECTRIC NON HANDLE)

SCREW, (M6 x 60)
(ELECTRIC NON HANDLE)

230 ₽
3

11-401196 NUT, (M6)
(ELECTRIC NON HANDLE)

NUT, (M6)
(ELECTRIC NON HANDLE)

260 ₽
4

42942 CAP
(ELECTRIC NON HANDLE)

CAP
(ELECTRIC NON HANDLE)

150 ₽
5

822682A4 LEVER ASSEMBLY, Throttle
(ELECTRIC NON HANDLE)

LEVER ASSEMBLY, Throttle
(ELECTRIC NON HANDLE)

3 660 ₽
6

883160 RETAINER
(ELECTRIC NON HANDLE)

RETAINER
(ELECTRIC NON HANDLE)

680 ₽
7

23-825078 BUSHING
(ELECTRIC NON HANDLE)

BUSHING
(ELECTRIC NON HANDLE)

2 420 ₽
8

822459 RETAINER
(ELECTRIC NON HANDLE)

RETAINER
(ELECTRIC NON HANDLE)

1 520 ₽
9

8259571 LEVER, Shift
(ELECTRIC NON HANDLE)

LEVER, Shift
(ELECTRIC NON HANDLE)

3 210 ₽
10

882820 SHIFT ROD
(ELECTRIC NON HANDLE)

SHIFT ROD
(ELECTRIC NON HANDLE)

5 710 ₽
11

830307 ROD, Throttle
(ELECTRIC NON HANDLE)

ROD, Throttle
(ELECTRIC NON HANDLE)

1 220 ₽
12

23-932481 BUSHING
(ELECTRIC NON HANDLE)

BUSHING
(ELECTRIC NON HANDLE)

990 ₽
13

827706A4 BRACKET
(ELECTRIC NON HANDLE)

BRACKET
(ELECTRIC NON HANDLE)

2 430 ₽
14

98889 LATCH
(ELECTRIC NON HANDLE)

LATCH
(ELECTRIC NON HANDLE)

180 ₽
15

10-8248324 SCREW, (M6 x 16)
(ELECTRIC NON HANDLE)

SCREW, (M6 x 16)
(ELECTRIC NON HANDLE)

220 ₽
16

23-15885 SLEEVE
(ELECTRIC NON HANDLE)

SLEEVE
(ELECTRIC NON HANDLE)

1 020 ₽
17

12-29245 WASHER, (.281 x .500 x .060) Stainless Steel
(ELECTRIC NON HANDLE)

WASHER, (.281 x .500 x .060) Stainless Steel
(ELECTRIC NON HANDLE)

120 ₽
18

18-210711 COTTER PIN
(ELECTRIC NON HANDLE)

COTTER PIN
(ELECTRIC NON HANDLE)

230 ₽
19

830305 CAM, Throttle

CAM, Throttle

1 740 ₽
20

23-822389 BUSHING

BUSHING

650 ₽
21

12-4002316 WASHER

WASHER

50 ₽
22

10-40011131 SCREW, (M6 x 35) Stainless Steel

SCREW, (M6 x 35) Stainless Steel

520 ₽
23

826588A4 SHIFT SHAFT ASSEMBLY, Horizontal

SHIFT SHAFT ASSEMBLY, Horizontal

10 350 ₽
24

8277071 RETAINER

RETAINER

2 790 ₽
25

24-826077 SPRING, Detent

SPRING, Detent

990 ₽
26

24-824993 SPRING, Backing

SPRING, Backing

290 ₽
27

824994 SPRING, Plate

SPRING, Plate

340 ₽
28

10-40011107 SCREW, (M5 x 16) Stainless Steel

SCREW, (M5 x 16) Stainless Steel

110 ₽
29

87-8M0052927 SWITCH
(ELECTRIC HANDLE MODELS)

SWITCH
(ELECTRIC HANDLE MODELS)

4 740 ₽
30

10-88075020 SCREW, (M3 x 20)
(ELECTRIC HANDLE MODELS)

SCREW, (M3 x 20)
(ELECTRIC HANDLE MODELS)

130 ₽
31

824923 PLATE
(ELECTRIC HANDLE MODELS)

PLATE
(ELECTRIC HANDLE MODELS)

460 ₽
32

8214943 BRACKET
(HANDLE MODELS)

BRACKET
(HANDLE MODELS)

970 ₽
33

10-8248324 SCREW, (M6 x 16)
(HANDLE MODELS)

SCREW, (M6 x 16)
(HANDLE MODELS)

220 ₽
