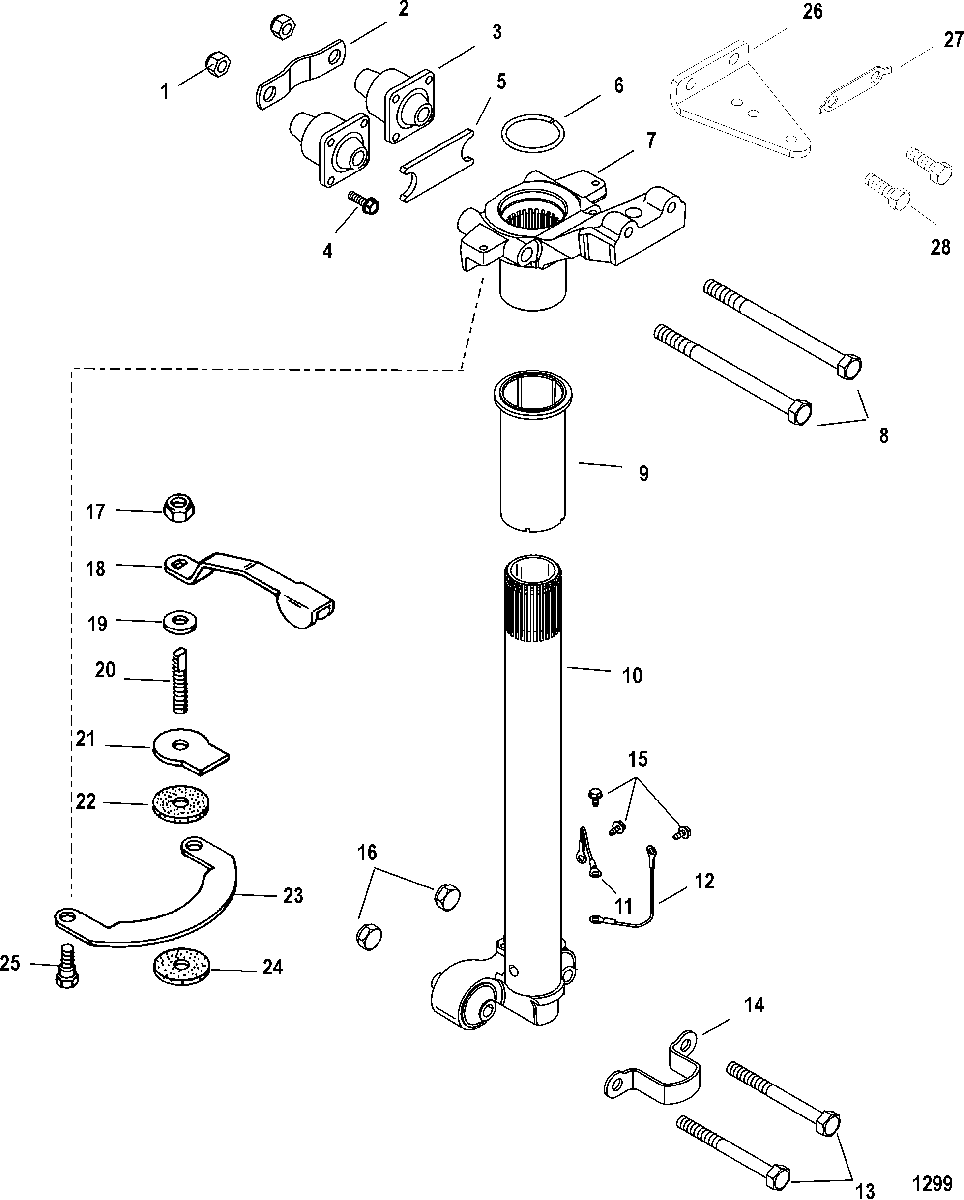

Steering Arm для Mercury - 25 (4-STROKE) 0P153500 THRU 0P388282

№

Артикул

Название
1

11-896963 NUT, (M12)

NUT, (M12)

410 ₽
2

893773002 STRAP

STRAP

2 220 ₽
3

826267T3 MOUNT

MOUNT

6 630 ₽
4

10-8M4503518 SCREW, (M6 x 20) Stainless Steel

SCREW, (M6 x 20) Stainless Steel

380 ₽
5

826658 BUMPER

BUMPER

590 ₽
6

53-89531 RING, Retaining

RING, Retaining

870 ₽
7

8M0118183 ARM, Steering

ARM, Steering

33 530 ₽
8

10-898835001 BOLT, (M12 x 154)

BOLT, (M12 x 154)

1 870 ₽
9

23-8279973 SPACER
(SHORT)

SPACER
(SHORT)

2 270 ₽
9

23-8279971 SPACER
(LONG)

SPACER
(LONG)

2 590 ₽
10

850175A1 SWIVEL TUBE
(SHORT)

SWIVEL TUBE
(SHORT)

22 920 ₽
10

826233T3 SWIVEL TUBE
(LONG)

SWIVEL TUBE
(LONG)

23 590 ₽
11

84-88238T01 CABLE ASSEMBLY

CABLE ASSEMBLY

2 070 ₽
12

88238A13 CABLE ASSEMBLY, Ground

CABLE ASSEMBLY, Ground

640 ₽
13

10-823567105 SCREW, (M10 x 105) Hex Flange - Stainless Steel

SCREW, (M10 x 105) Hex Flange - Stainless Steel

790 ₽
14

893703 BRACKET

BRACKET

2 370 ₽
15

10-878607 SCREW, (#10-16 x .375)

SCREW, (#10-16 x .375)

100 ₽
16

11-40140 NUT, (M10)

NUT, (M10)

380 ₽
17

11-8M0042636 NUT, (.375-24) Stainless Steel
(HANDLE)

NUT, (.375-24) Stainless Steel
(HANDLE)

150 ₽
18

823792 LEVER
(HANDLE)

LEVER
(HANDLE)

2 010 ₽
19

12-29330 WASHER
(HANDLE)

WASHER
(HANDLE)

100 ₽
20

821961 ROD (THREADED)
(HANDLE)

ROD (THREADED)
(HANDLE)

1 020 ₽
21

8M0006845 PLATE/DISC ASSEMBLY
(HANDLE)

PLATE/DISC ASSEMBLY
(HANDLE)

2 420 ₽
22

NSS NOT SOLD SEPARATE, Disc
HANDLE

NOT SOLD SEPARATE, Disc
HANDLE

0 ₽
23

8M0007471 PLATE
(HANDLE)

PLATE
(HANDLE)

2 260 ₽
24

8165621 DISC
(HANDLE)

DISC
(HANDLE)

1 030 ₽
25

10-768042 SHOULDER SCREW, Hex
(HANDLE)

SHOULDER SCREW, Hex
(HANDLE)

120 ₽
26

893696 BRACKET
(ELECTRIC)

BRACKET
(ELECTRIC)

3 140 ₽
27

14-8M0009820 TAB WASHER
(ELECTRIC)

TAB WASHER
(ELECTRIC)

450 ₽
28

10-4000377 SCREW, (M10 x 30)
(ELECTRIC)

SCREW, (M10 x 30)
(ELECTRIC)

320 ₽
