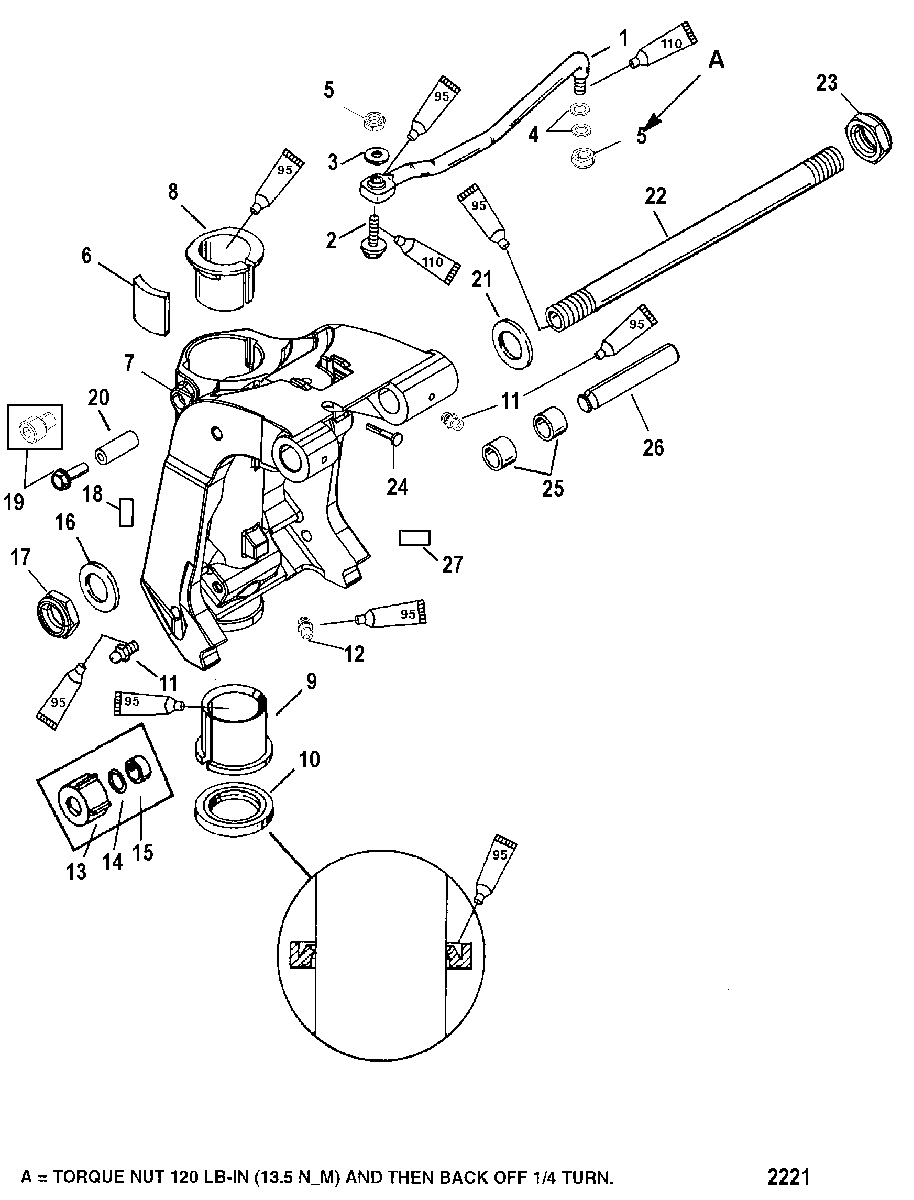

Swivel Bracket для Mercury - 25 (4-STROKE) 0P153500 THRU 0P388282
-
№АртикулНазвание
-
119608A14 ATTACHING KIT, Engine Steering
(NON HANDLE)ATTACHING KIT, Engine Steering
(NON HANDLE) -
210-823919 SCREW, (.375-24 x 1.500)
(NON HANDLE)SCREW, (.375-24 x 1.500)
(NON HANDLE) -
312-8M0109680 WASHER, (.390 x .546 x .12)
(NON HANDLE)WASHER, (.390 x .546 x .12)
(NON HANDLE) -
412-37828 WASHER, (.390 x .625 x .062) Stainless Steel
(NON HANDLE)WASHER, (.390 x .625 x .062) Stainless Steel
(NON HANDLE) -
511-8M0042636 NUT, (.375-24) Stainless Steel
(NON HANDLE)NUT, (.375-24) Stainless Steel
(NON HANDLE) -
6822397 PUCK
(ELECTRIC)PUCK
(ELECTRIC) -
73410-827402T5 SWIVEL BRACKET
SN# USA-0T800999/BEL-0P267999 & BelowSWIVEL BRACKET
SN# USA-0T800999/BEL-0P267999 & Below -
73410-827402T5 SWIVEL BRACKET
SN# USA-0T801000/BEL-0P268000 & UpSWIVEL BRACKET
SN# USA-0T801000/BEL-0P268000 & Up -
823-8217711 BUSHINGBUSHING
-
923-821777 BUSHING (LOWER)BUSHING (LOWER)
-
1026-822404 SEALSEAL
-
1122-74036 FITTING, GreaseFITTING, Grease
-
1222-74036 FITTING, Grease
(HANDLE)FITTING, Grease
(HANDLE) -
1319624A1 SEAL KIT
(NON HANDLE)SEAL KIT
(NON HANDLE) -
1425-29619 O-RING, (.583 x .103)
(NON HANDLE)O-RING, (.583 x .103)
(NON HANDLE) -
1523-78861 SPACER
(NON HANDLE)SPACER
(NON HANDLE) -
1612-19619 WASHERWASHER
-
1711-858869 NUT, (.875-14)NUT, (.875-14)
-
18NSS NOT SOLD SEPARATE, Decal-Serial OverlaminateNOT SOLD SEPARATE, Decal-Serial Overlaminate
-
1910-4008910 SCREW, (M8 x 10) Stainless Steel
(MANUAL HANDLE)SCREW, (M8 x 10) Stainless Steel
(MANUAL HANDLE) -
1910-40011149 SCREW, (M8 x 25) Stainless Steel
(ELECTRIC)SCREW, (M8 x 25) Stainless Steel
(ELECTRIC) -
208282451 SEAL
(ELECTRIC)SEAL
(ELECTRIC) -
2112-19619 WASHERWASHER
-
228M0041938 TILT TUBETILT TUBE
-
2311-858869 NUT, (.875-14)NUT, (.875-14)
-
2417-821539 PIN, TrilobePIN, Trilobe
-
2523-823507 BUSHINGBUSHING
-
2617-822480 PIN, Pivot (UPPER)PIN, Pivot (UPPER)
-
2737-8237011 DECAL, Co-PilotDECAL, Co-Pilot
