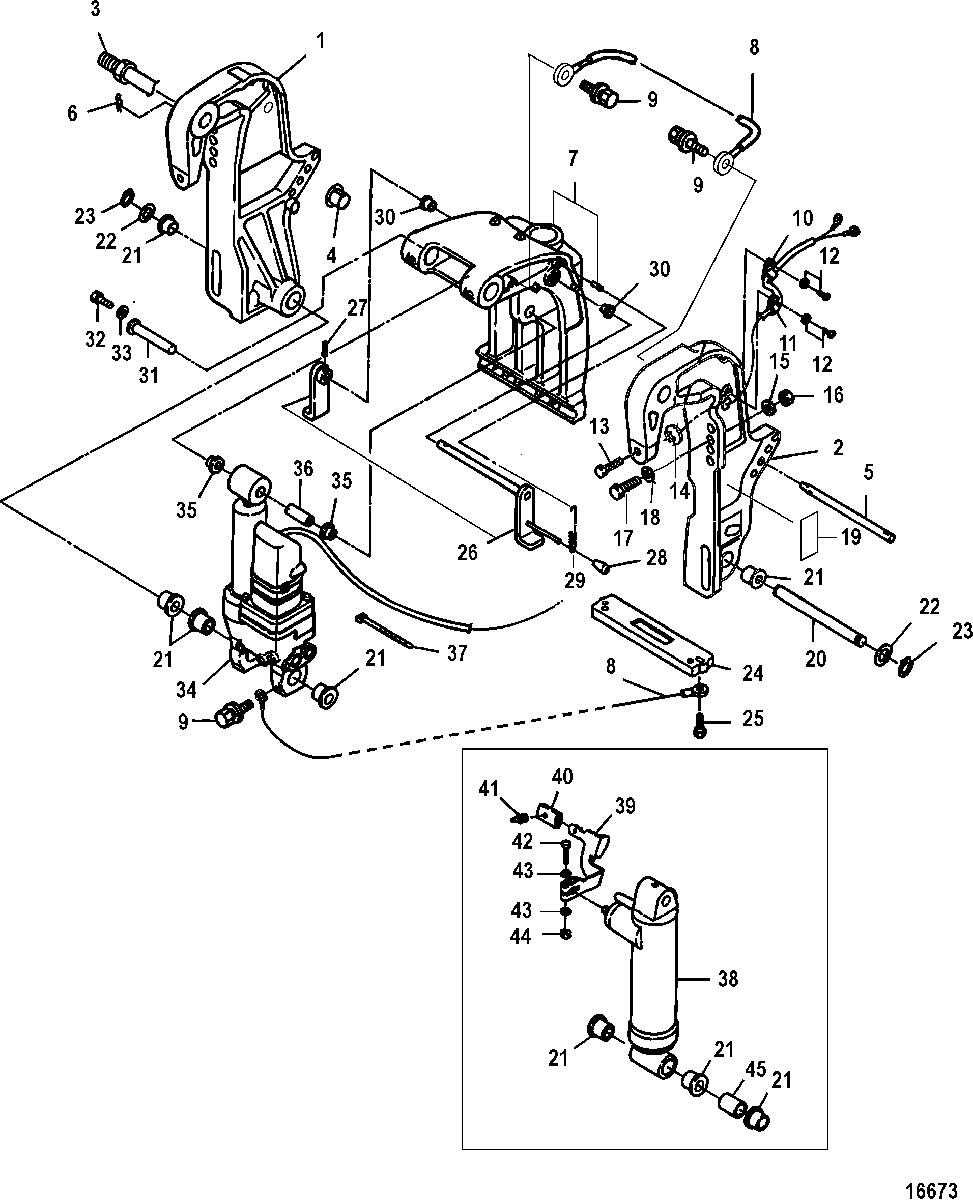

Clamp Brackets, Power Trim and Gas Assist для Mercury - 25 EFI (3 CYL.)(4-STROKE) 0R106999 & Up
-
№АртикулНазвание
-
13406-804038T01 CLAMP BRACKET, Starboard
Power TrimCLAMP BRACKET, Starboard
Power Trim -
13406-804038T02 CLAMP BRACKET, Starboard
Gas AssistCLAMP BRACKET, Starboard
Gas Assist -
23406-804039T03 CLAMP BRACKET, Port
Power Trim SN# 0R247056 & BelowCLAMP BRACKET, Port
Power Trim SN# 0R247056 & Below -
23406-804039T03 CLAMP BRACKET, Port
Power Trim SN# 0R247057 & UpCLAMP BRACKET, Port
Power Trim SN# 0R247057 & Up -
23406-804039T02 CLAMP BRACKET, Port
Gas Assist SN# 0R247237 & BelowCLAMP BRACKET, Port
Gas Assist SN# 0R247237 & Below -
23406-804039T04 CLAMP BRACKET, Port
Gas Assist SN# 0R247238 & UpCLAMP BRACKET, Port
Gas Assist SN# 0R247238 & Up -
3853769001 TILT TUBETILT TUBE
-
423-161764 BUSHINGBUSHING
-
516198003 THRUST RODTHRUST ROD
-
618-8150266 COTTER PINCOTTER PIN
-
73407-813029T22 SWIVEL BRACKET
Power Trim SN# 0R247056 & BelowSWIVEL BRACKET
Power Trim SN# 0R247056 & Below -
73407-813029T24 SWIVEL BRACKET
Power Trim SN# 0R247057 & UpSWIVEL BRACKET
Power Trim SN# 0R247057 & Up -
73407-813029T22 SWIVEL BRACKET
Gas Assist SN# 0R247237 & BelowSWIVEL BRACKET
Gas Assist SN# 0R247237 & Below -
73407-813029T24 SWIVEL BRACKET
Gas Assist SN# 0R247238 & UpSWIVEL BRACKET
Gas Assist SN# 0R247238 & Up -
884-898101089 WIRE, GroundWIRE, Ground
-
910-8230427 BOLT, (M6 x 12)BOLT, (M6 x 12)
-
1054-953951 CLAMPCLAMP
-
1154-898101244 CLAMPCLAMP
-
1210-8M0051381 SCREWSCREW
-
1310-8M0060119 CLAMP SCREWCLAMP SCREW
-
1412-95379 PADPAD
-
1512-879194341 WASHERWASHER
-
1611-95374002 NUTNUT
-
1710-802619 BOLTBOLT
-
1812-953928 WASHERWASHER
-
19NSS NOT SOLD SEPARATE, Decal-Secure Engine WarningNOT SOLD SEPARATE, Decal-Secure Engine Warning
-
2017-8M0091499 PIN, LowerPIN, Lower
-
2123-161765 BUSHINGBUSHING
-
2212-853822002 WASHERWASHER
-
2353-804027003 C RINGC RING
-
2497-823912002 ANODEANODE
-
2510-879194264 BOLTBOLT
-
268M0075224 STOPPER, Tilt
Power TrimSTOPPER, Tilt
Power Trim -
268M0075225 STOPPER
Gas AssistSTOPPER
Gas Assist -
2717-95218017 PIN, SpringPIN, Spring
-
288M0045584 GRIPGRIP
-
2924-95383010 SPRINGSPRING
-
3023-95286027 COLLARCOLLAR
-
3117-8M0091498 PIN, Cylinder, UpperPIN, Cylinder, Upper
-
3210-879194248 BOLTBOLT
-
3312-898101937 WASHERWASHER
-
34851873T03 POWER TRIM/TILT ASSEMBLYPOWER TRIM/TILT ASSEMBLY
-
3523-16176009 BUSHINGBUSHING
-
3623-16176010 BUSHINGBUSHING
-
3754-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
38898103T32 SHOCK ABSORBER, GasSHOCK ABSORBER, Gas
-
39898101233 LEVERLEVER
-
40898101234 GRIPGRIP
-
418M0051399 BUTTONBUTTON
-
4210-16105 BOLTBOLT
-
4312-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
4411-853722022 NUTNUT
-
4523-898101235 COLLARCOLLAR
