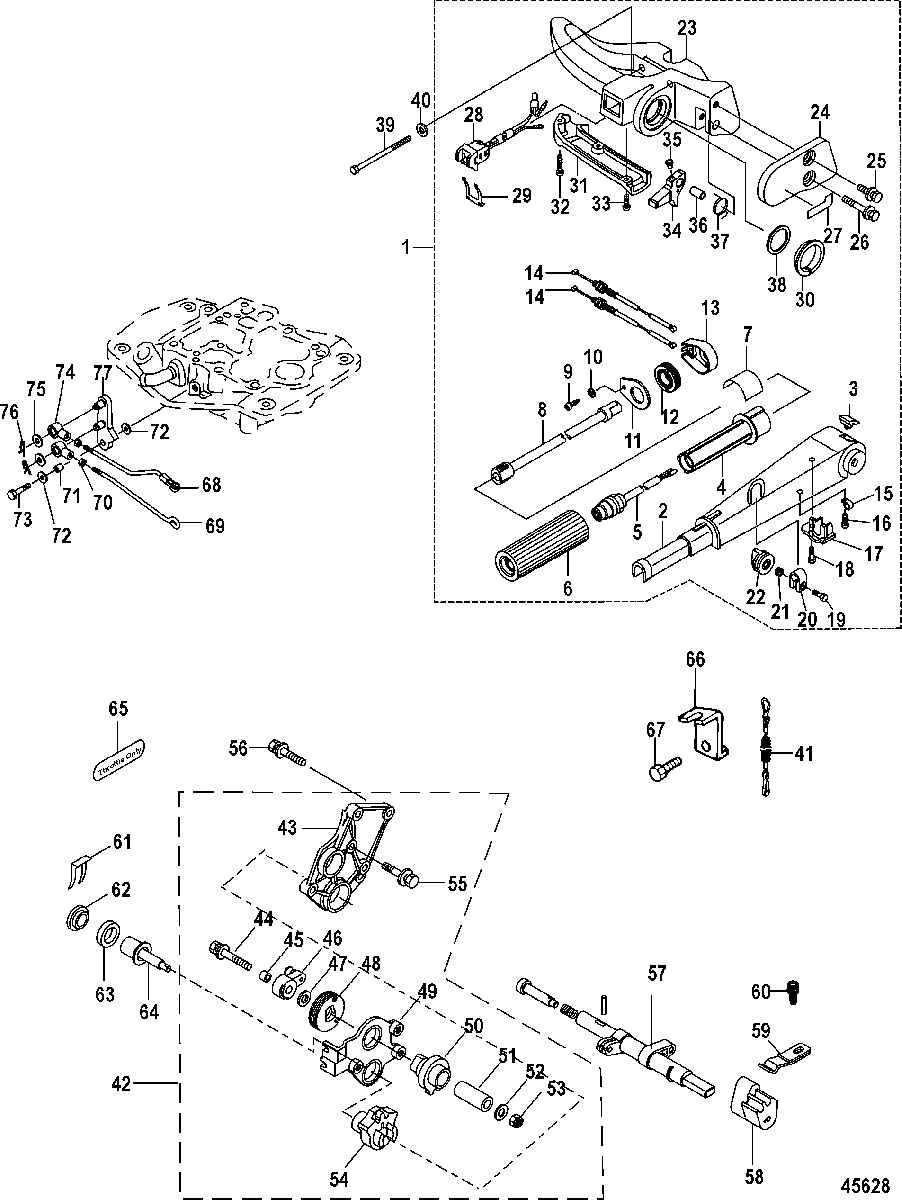

Tiller Handle Conversion Kit, Manual - 8M0051061 для Mercury - 25 EFI (3 CYL.)(4-STROKE) 0R106999 & Up
-
№АртикулНазвание
-
-8M0051061 CONVERSION KIT, Tiller Handle (Manual Remote Control to Manual Handle)CONVERSION KIT, Tiller Handle (Manual Remote Control to Manual Handle)
-
1NSS NOT SOLD SEPARATE, TILLER HANDLE ASSEMBLYNOT SOLD SEPARATE, TILLER HANDLE ASSEMBLY
-
28M0051374 TILLER HANDLETILLER HANDLE
-
38M0051375 PLUG, CapPLUG, Cap
-
48M0051377 GRIPGRIP
-
58M0051405 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
68M0051376 GRIP, RubberGRIP, Rubber
-
737-896853008 DECAL, Tiller Handle Shift-RabbitDECAL, Tiller Handle Shift-Rabbit
-
88M0051379 SHAFT, ThrottleSHAFT, Throttle
-
910-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
1012-8M0108373 WASHER, Stainless SteelWASHER, Stainless Steel
-
118M0051388 COVERCOVER
-
128M0051386 PULLEYPULLEY
-
138M0051387 HOUSINGHOUSING
-
148M0051389 CABLE, ThrottleCABLE, Throttle
-
1554-22740 CLIPCLIP
-
1610-8M0051381 SCREWSCREW
-
178M0051380 BRACKET, AluminumBRACKET, Aluminum
-
1810-8M0051381 SCREWSCREW
-
1910-4000330 BOLTBOLT
-
208M0051382 CLAMP, Friction - ThrottleCLAMP, Friction - Throttle
-
2124-8M0051384 SPRING, Stainless SteelSPRING, Stainless Steel
-
228M0051383 NUTNUT
-
238M0051392 HANDLE, CarryingHANDLE, Carrying
-
248M0051400 COVERCOVER
-
2510-823042 BOLT, Stainless SteelBOLT, Stainless Steel
-
2610-8M0051402 BOLT, Stainless SteelBOLT, Stainless Steel
-
2737-892904006 DECAL, Tiller Lock ReleaseDECAL, Tiller Lock Release
-
2887-892395A01 SWITCH ASSEMBLY, StopSWITCH ASSEMBLY, Stop
-
298M0032846 RETAINER, BrassRETAINER, Brass
-
3023-8M0051403 BUSHING, PlasticBUSHING, Plastic
-
318M0051393 COVERCOVER
-
3210-4000330 BOLTBOLT
-
3310-8M0051394 SCREW, Stainless Steel (M4 x 16)SCREW, Stainless Steel (M4 x 16)
-
348M0051396 LEVER, Tiller Lock - Stainless SteelLEVER, Tiller Lock - Stainless Steel
-
358M0051383 NUTNUT
-
368M0051397 COLLAR, Stainless SteelCOLLAR, Stainless Steel
-
3724-8M0051398 SPRING, Stainless SteelSPRING, Stainless Steel
-
3812-8M0051404 WASHER, RubberWASHER, Rubber
-
3910-8M0058362 BOLT, SteelBOLT, Steel
-
4012-879194340 WASHER, Stainless SteelWASHER, Stainless Steel
-
418M0092850 LANYARD ASSEMBLYLANYARD ASSEMBLY
-
42NSS NOT SOLD SEPARATE, GEAR ASSEMBLY, Throttle OnlyNOT SOLD SEPARATE, GEAR ASSEMBLY, Throttle Only
-
43898101082 GEAR PLATEGEAR PLATE
-
4410-8M0102279 BOLTBOLT
-
4523-895126004 COLLAR, Stainless Steel (6.3 mm)COLLAR, Stainless Steel (6.3 mm)
-
46898101203 OPENER, ThrottleOPENER, Throttle
-
4712-953921 WASHER, Stainless SteelWASHER, Stainless Steel
-
48895101401 DRUM, ThrottleDRUM, Throttle
-
49898101081 GEAR PLATEGEAR PLATE
-
50895101400 GEAR, DriveGEAR, Drive
-
5123-895162001 COLLAR, SteelCOLLAR, Steel
-
5212-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
5311-8537227 NUT, NylonNUT, Nylon
-
54895161 GEAR, DrivenGEAR, Driven
-
5510-823042 BOLT, Stainless SteelBOLT, Stainless Steel
-
5610-823042 BOLT, Stainless SteelBOLT, Stainless Steel
-
57898103T16 SHIFT SHAFTSHIFT SHAFT
-
58898101112 LEVERLEVER
-
5924-8M0138740 STOPPER, Shift Lever - Stainless SteelSTOPPER, Shift Lever - Stainless Steel
-
6010-8230427 BOLTBOLT
-
61898101149 RETAINER, Stainless SteelRETAINER, Stainless Steel
-
6219-898101625 PLUG, PlasticPLUG, Plastic
-
6325-898101166 GROMMET, RubberGROMMET, Rubber
-
64898101110 KNOBKNOB
-
6537-859278003 DECAL, Throttle OnlyDECAL, Throttle Only
-
66898101265 BRACKET, Starter Lock Cable - Stainless SteelBRACKET, Starter Lock Cable - Stainless Steel
-
6710-879194248 BOLTBOLT
-
68898101204 ROD, ThrottleROD, Throttle
-
69898101205 ROD, Throttle - Stainless SteelROD, Throttle - Stainless Steel
-
7011-16081 NUT, Stainless SteelNUT, Stainless Steel
-
7123-95286029 COLLAR, (9.5 mm) Stainless SteelCOLLAR, (9.5 mm) Stainless Steel
-
7212-953921 WASHER, Stainless SteelWASHER, Stainless Steel
-
7310-16705 BOLT, Stainless SteelBOLT, Stainless Steel
-
74892775 JOINT, CableJOINT, Cable
-
7512-898101218 WASHER, PlasticWASHER, Plastic
-
7618-898101174 COTTER PIN, Stainless SteelCOTTER PIN, Stainless Steel
-
77898101195 ARM, ThrottleARM, Throttle
