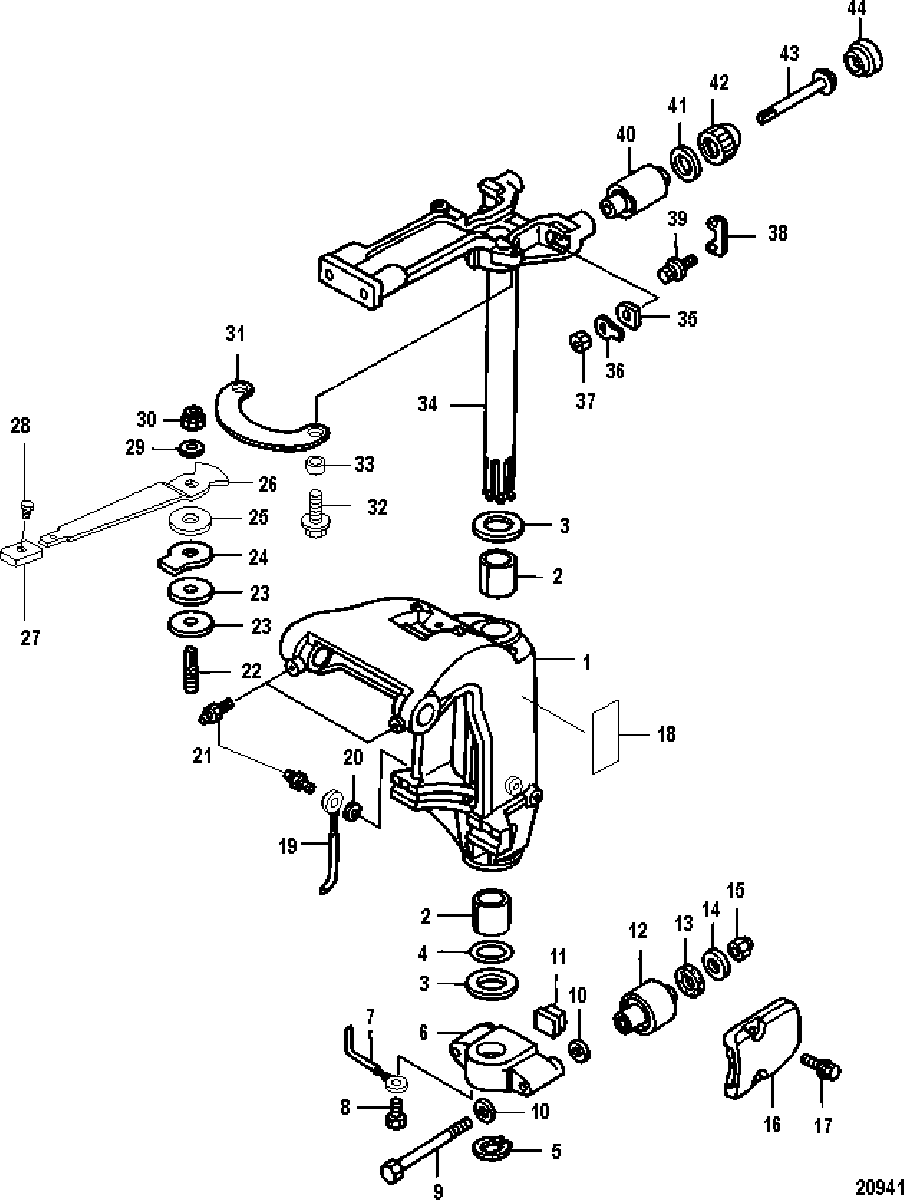

Swivel Bracket, Manual для Mercury - 25 EFI (3 CYL.)(4-STROKE) 0R106999 & Up
-
№АртикулНазвание
-
13406-898103T21 SWIVEL BRACKETSWIVEL BRACKET
-
223-16336007 BUSHINGBUSHING
-
3803774004 THRUST PLATETHRUST PLATE
-
425-16109002 O-RINGO-RING
-
553-804027001 C-RINGC-RING
-
6853786T06 YOKE, BottomYOKE, Bottom
-
784-898101091 WIRE, GroundWIRE, Ground
-
810-8230427 BOLT, (M6 x 12)BOLT, (M6 x 12)
-
910-851866009 BOLT, LowerBOLT, Lower
-
1012-879194343 WASHERWASHER
-
118537732 RUBBER DAMPER, LowerRUBBER DAMPER, Lower
-
128M0075315 MOUNT, LowerMOUNT, Lower
-
1312-851867 WASHERWASHER
-
1412-953928 WASHERWASHER
-
1511-95374002 NUTNUT
-
16851869002 COVER, LowerCOVER, Lower
-
1710-167051 BOLT, (M6 x 20)BOLT, (M6 x 20)
-
18NSS NOT SOLD SEPARATE, Decal-Secure Engine WarningNOT SOLD SEPARATE, Decal-Secure Engine Warning
-
1984-898101090 WIRE, GroundWIRE, Ground
-
2012-16826 WASHER, Stainless SteelWASHER, Stainless Steel
-
2122-824969 FITTING, GreaseFITTING, Grease
-
-898103A92 CO-PILOT KITCO-PILOT KIT
-
2210-895140002 BOLT
HandleBOLT
Handle -
23895173 DISC
HandleDISC
Handle -
2412-895146002 WASHER
HandleWASHER
Handle -
2512-895146001 WASHER
HandleWASHER
Handle -
26898101035 HANDLE, Co-Pilot
HandleHANDLE, Co-Pilot
Handle -
27898101083 GRIP
HandleGRIP
Handle -
288M0051399 BUTTON
HandleBUTTON
Handle -
2912-16192 WASHER
HandleWASHER
Handle -
3011-95374 NUT, Nylon
HandleNUT, Nylon
Handle -
31898101036 PLATE, Co-Pilot
HandlePLATE, Co-Pilot
Handle -
3210-8248324 SCREW, (M6 x 16)
HandleSCREW, (M6 x 16)
Handle -
3323-898101031 COLLAR
HandleCOLLAR
Handle -
34853770T09 SHAFT ASSEMBLY, SteeringSHAFT ASSEMBLY, Steering
-
3512-162382 WASHERWASHER
-
36853772002 PLATE, LockPLATE, Lock
-
3711-85372215 NUTNUT
-
38898101161 RETAINER, MountRETAINER, Mount
-
3910-16705 BOLT, Stainless SteelBOLT, Stainless Steel
-
40898101242 MOUNT, Rubber, UpperMOUNT, Rubber, Upper
-
41853772003 PLATE, Upper Lock, UpperPLATE, Upper Lock, Upper
-
42898101043 DAMPER, Rubber, UpperDAMPER, Rubber, Upper
-
4310-898101160 SCREW, Upper MountSCREW, Upper Mount
-
44853773003 DAMPER, UpperDAMPER, Upper
