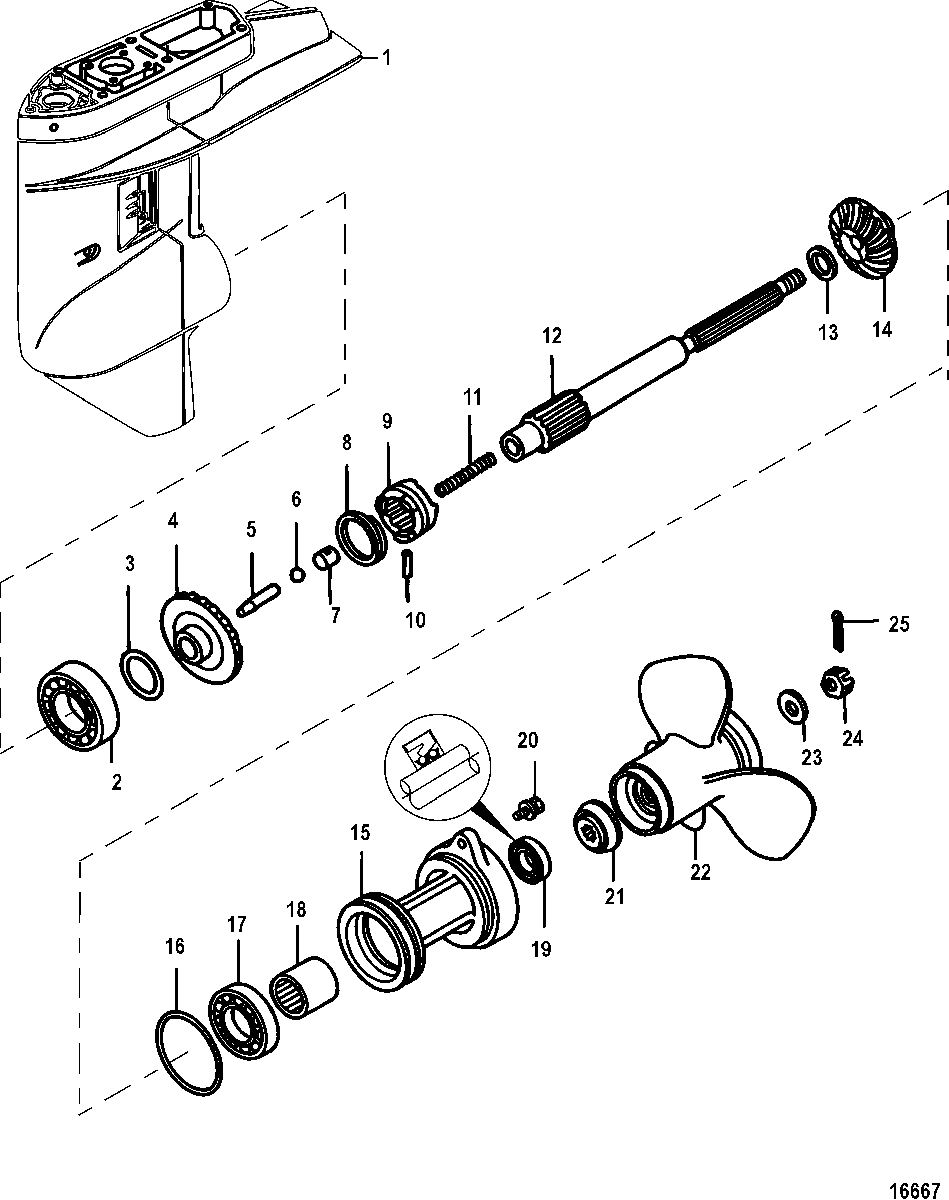

Gear Housing, Propeller Shaft -1.92:1 Gear Ratio для Mercury - 25 EFI (3 CYL.)(4-STROKE) 0R106999 & Up
-
№АртикулНазвание
-
-1668-8M0070899 GEAR HOUSING ASSEMBLY, Complete
ShortGEAR HOUSING ASSEMBLY, Complete
Short -
-1668-8M0070900 GEAR HOUSING ASSEMBLY, Complete
LongGEAR HOUSING ASSEMBLY, Complete
Long -
11668-8M0057242 GEAR HOUSING ASSEMBLY, BasicGEAR HOUSING ASSEMBLY, Basic
-
230-16128T01 BEARING ASSEMBLYBEARING ASSEMBLY
-
315-161631 SHIM, (0.1)SHIM, (0.1)
-
315-8132761 SHIM, (0.15)SHIM, (0.15)
-
443-812944T01 GEAR, Forward - 23 TeethGEAR, Forward - 23 Teeth
-
5161521 FOLLOWER, CamFOLLOWER, Cam
-
630-161322 BALL, SteelBALL, Steel
-
7853764003 HOLDERHOLDER
-
824-8126453 SPRINGSPRING
-
952-898103T30 CLUTCHCLUTCH
-
1017-161501 PINPIN
-
1124-176672 SPRINGSPRING
-
1244-19513T01 PROPELLER SHAFTPROPELLER SHAFT
-
1312-161401 WASHERWASHER
-
1443-898103T29 GEAR, Reverse - 23 TeethGEAR, Reverse - 23 Teeth
-
158M0070880 CARRIER ASSEMBLY, Bearing
SN# 0R515496 & BelowCARRIER ASSEMBLY, Bearing
SN# 0R515496 & Below -
158M0070880 CARRIER ASSEMBLY, Bearing
SN# 0R515497 & UpCARRIER ASSEMBLY, Bearing
SN# 0R515497 & Up -
1625-161311 O-RINGO-RING
-
1730-16132T01 BEARING, BallBEARING, Ball
-
1831-813048T05 BEARING, NeedleBEARING, Needle
-
1926-161301 SEAL, Oil
SN# 0R515496 & BelowSEAL, Oil
SN# 0R515496 & Below -
1926-8M0079092 SEAL, Oil
SN# 0R515497 & UpSEAL, Oil
SN# 0R515497 & Up -
2010-879194273 BOLTBOLT
-
21161452 THRUST HUBTHRUST HUB
-
2248-896890A10 BLACK MAX PROPELLER, 8 Pitch AluminumBLACK MAX PROPELLER, 8 Pitch Aluminum
-
2248-896892A40 BLACK MAX PROPELLER, 9.5 Pitch AluminumBLACK MAX PROPELLER, 9.5 Pitch Aluminum
-
2248-896896A40 BLACK MAX PROPELLER, 11 Pitch- AluminumBLACK MAX PROPELLER, 11 Pitch- Aluminum
-
2248-896900A40 BLACK MAX PROPELLER, 12.5 Pitch AluminumBLACK MAX PROPELLER, 12.5 Pitch Aluminum
-
2312-161402 WASHERWASHER
-
2411-161471 PROP NUTPROP NUT
-
2518-8150264 COTTER PINCOTTER PIN
-
-27-8M0089636 GASKET SET, Gearcase
SN# 0R515496 & BelowGASKET SET, Gearcase
SN# 0R515496 & Below -
-27-8M0089636 GASKET SET, Gearcase
SN# 0R515497 & UpGASKET SET, Gearcase
SN# 0R515497 & Up
