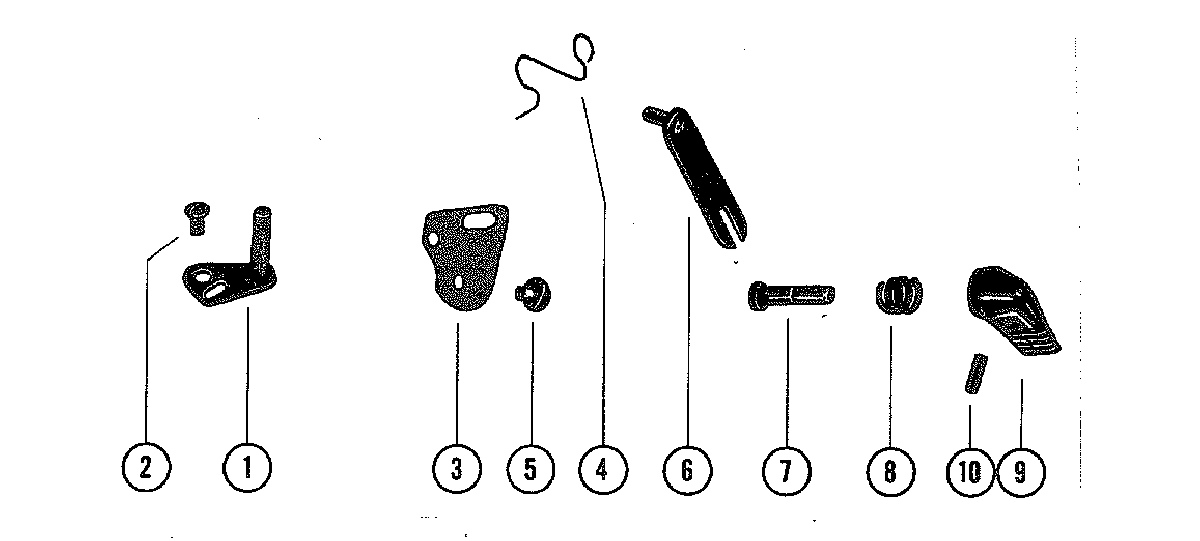

CARBURETOR CHOKE LINKAGE (39) для Mercury - 39 (1 CYL.) 1655013 THRU 2498135
-
№АртикулНазвание
-
159000 THROTTLE LEVER ASSEMBLYTHROTTLE LEVER ASSEMBLY
-
210-20597 SCREW, THROTTLE LEVER TO CARBURETORSCREW, THROTTLE LEVER TO CARBURETOR
-
3NLA SHUTTER, CHOKE - CARBURETORSHUTTER, CHOKE - CARBURETOR
-
424-20579 SPRING, CHOKE SHUTTER TO LEVERSPRING, CHOKE SHUTTER TO LEVER
-
5NLA SCREW, CHOKE SHUTTER TO CARBURETORSCREW, CHOKE SHUTTER TO CARBURETOR
-
6NLA LEVER ASSEMBLY, CHOKE SHUTTERLEVER ASSEMBLY, CHOKE SHUTTER
-
7NLA SHAFT, CHOKE LEVER TO CHOKE KNOBSHAFT, CHOKE LEVER TO CHOKE KNOB
-
824-30947 SPRING, TENSION - CHOKE KNOBSPRING, TENSION - CHOKE KNOB
-
9NLA CHOKE KNOBCHOKE KNOB
-
1017-22896 ROLL PIN, CHOKE KNOB TO SHAFTROLL PIN, CHOKE KNOB TO SHAFT
