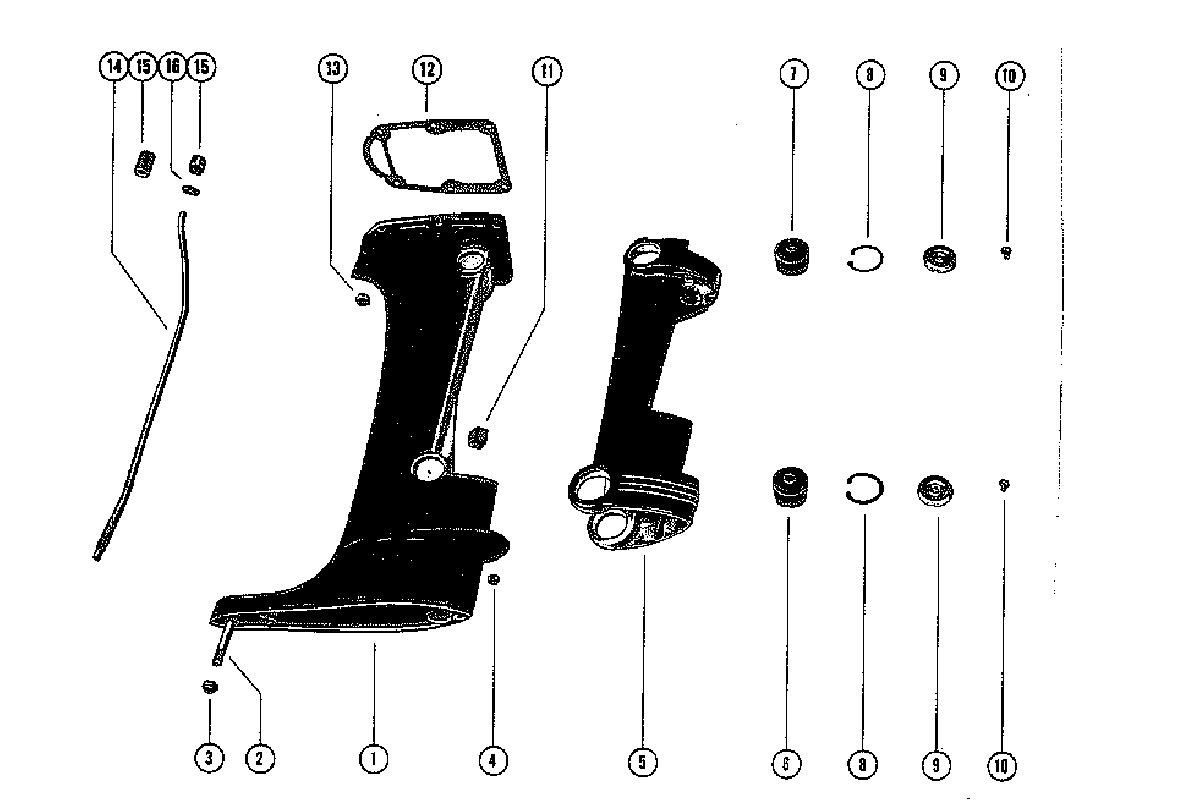

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 39 (1 CYL.) 1655013 THRU 2498135
-
№АртикулНазвание
-
1NLA DRIVE SHAFT HOUSING (SHORT SHAFT)DRIVE SHAFT HOUSING (SHORT SHAFT)
-
1NLA DRIVE SHAFT HOUSING (LONG SHAFT)DRIVE SHAFT HOUSING (LONG SHAFT)
-
216-34378 STUD (39)STUD (39)
-
216-66373 STUD (40)STUD (40)
-
311-82670911 NUTNUT
-
411-8M0042636 NUTNUT
-
51539-8450A1 SADDLESADDLE
-
679896A1 MOUNT ASSEMBLY (LOWER)MOUNT ASSEMBLY (LOWER)
-
779985A1 MOUNT ASSEMBLY (UPPER)(SEE BLOCK COMMENTS)MOUNT ASSEMBLY (UPPER)(SEE BLOCK COMMENTS)
-
853-26406 RETAINING RINGRETAINING RING
-
971490 COVERCOVER
-
1010-30675 SCREW (39-)
SERIAL 00000000-02278850SCREW (39-)
SERIAL 00000000-02278850 -
1010-45817 SCREW (39)(40)
SERIAL 02278851-09999999SCREW (39)(40)
SERIAL 02278851-09999999 -
11NLA BLOCK (LONG SHAFT)(39)(40)
SERIAL 00000000-02771621BLOCK (LONG SHAFT)(39)(40)
SERIAL 00000000-02771621 -
1155435 BLOCK (LONG SHAFT)(40)
SERIAL 02771622-09999999BLOCK (LONG SHAFT)(40)
SERIAL 02771622-09999999 -
1227-30804 GASKET (39)(40)
SERIAL 00000000-03028360GASKET (39)(40)
SERIAL 00000000-03028360 -
1227-59079 GASKET (40)
SERIAL 03028361-09999999GASKET (40)
SERIAL 03028361-09999999 -
1311-20184 NUT(QTY. OF 6 REQUIRED ON 39)
SERIAL 00000000-02278850NUT(QTY. OF 6 REQUIRED ON 39)
SERIAL 00000000-02278850 -
1311-24652 NUT(39)(40)
SERIAL 02278851-09999999NUT(39)(40)
SERIAL 02278851-09999999 -
1432-31940 WATER TUBE (SHORT SHAFT)WATER TUBE (SHORT SHAFT)
-
1432-32077 WATER TUBE (LONG SHAFT)WATER TUBE (LONG SHAFT)
-
1526-30811 SEAL ((39)
SERIAL 00000000-01697722SEAL ((39)
SERIAL 00000000-01697722 -
1526-36556 SEAL (39-)(40)
SERIAL 01697723-09999999SEAL (39-)(40)
SERIAL 01697723-09999999 -
1623-13127 SPACERSPACER
