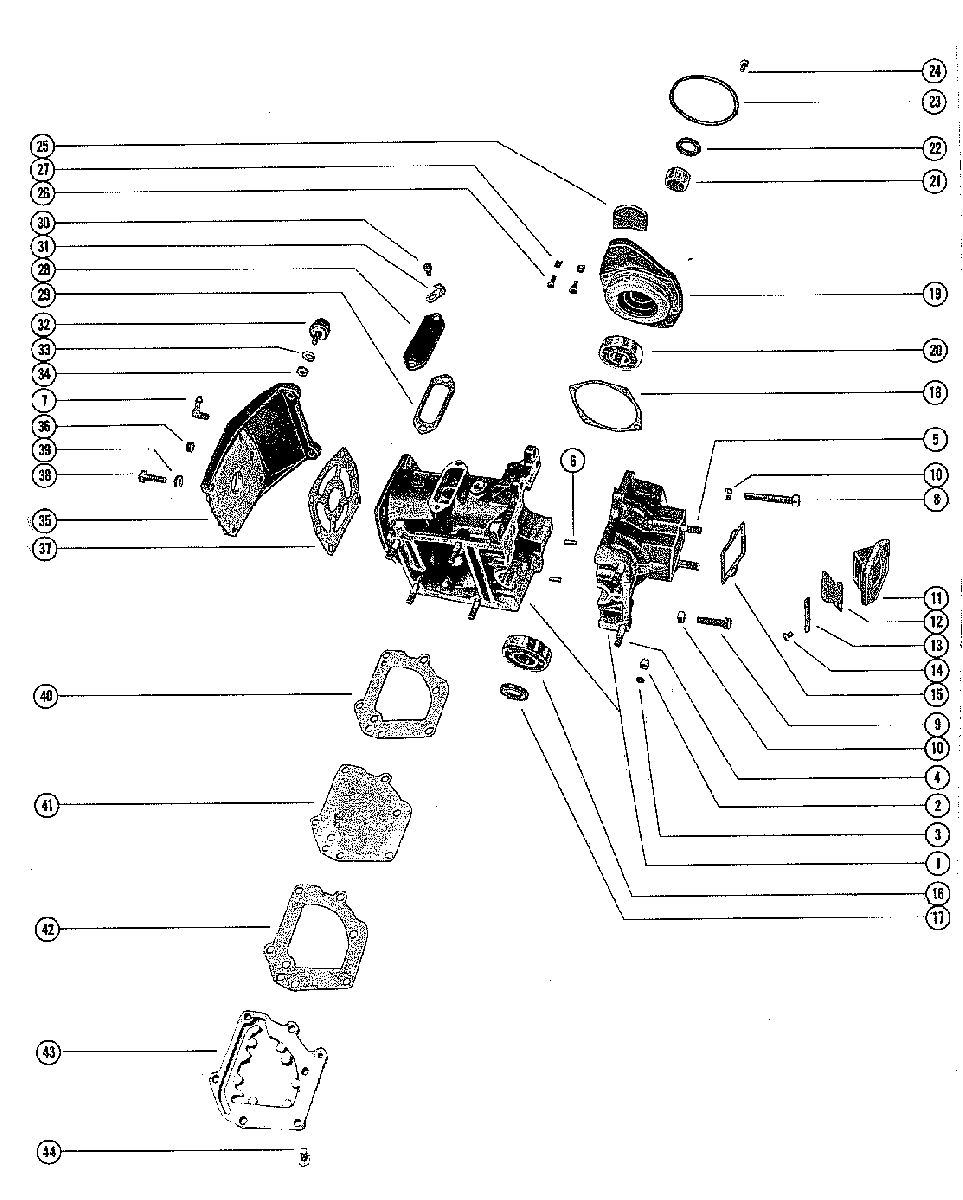

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 39 (1 CYL.) 1655013 THRU 2498135
-
№АртикулНазвание
-
1NLA CYLINDER BLOCK (39)
SERIAL 00000000-02098036CYLINDER BLOCK (39)
SERIAL 00000000-02098036 -
1843-8694A3 CYLINDER BLOCK (39)(40)
SERIAL 02098037-09999999CYLINDER BLOCK (39)(40)
SERIAL 02098037-09999999 -
221-30819A1 CHECK VALVE (39)(40)
SERIAL 00000000-02771621CHECK VALVE (39)(40)
SERIAL 00000000-02771621 -
221-28481A1 CHECK VALVE 40
SERIAL 02771622-09999999CHECK VALVE 40
SERIAL 02771622-09999999 -
3NLA WELCH PLUG
SERIAL 02771622-09999999WELCH PLUG
SERIAL 02771622-09999999 -
416-66021 STUDSTUD
-
516-46431 STUDSTUD
-
617-8M0084726 DOWEL PINDOWEL PIN
-
722-996642 ELBOW (90 )(40-SER.33028361 & UP)ELBOW (90 )(40-SER.33028361 & UP)
-
8NLA SCREW (1-3/4")SCREW (1-3/4")
-
910-64278 SCREW (1")SCREW (1")
-
1011-20184 NUTNUT
-
1170726 REED BLOCKREED BLOCK
-
1234-35836 REED, INLET VALVEREED, INLET VALVE
-
1334-22215 RETAINERRETAINER
-
1410-28430 SCREWSCREW
-
1527-357391 GASKETGASKET
-
1630-72961 BALL BEARINGBALL BEARING
-
1726-31411 OIL SEAL (39)(40)
SERIAL 00000000-02771621OIL SEAL (39)(40)
SERIAL 00000000-02771621 -
1726-56397 OIL SEAL (40)
SERIAL 32771622-09999999OIL SEAL (40)
SERIAL 32771622-09999999 -
1815-31412A1 SHIM ASSEMBLYSHIM ASSEMBLY
-
19NLA BEARING HOUSING ASSEMBLYBEARING HOUSING ASSEMBLY
-
2030-72961 BALL BEARINGBALL BEARING
-
2131-31410 ROLLER BEARINGROLLER BEARING
-
2226-31411 OIL SEALOIL SEAL
-
2325-20863 O-RINGO-RING
-
24NLA SCREW (39)(#10-24 X 1/2")SCREW (39)(#10-24 X 1/2")
-
2410-39002 SCREW (39)(40)(#12-24 X 1/2")SCREW (39)(40)(#12-24 X 1/2")
-
2554-34598 CLAMP 39 40
SERIAL 00000000-02693114CLAMP 39 40
SERIAL 00000000-02693114 -
2610-36205 SCREW
SERIAL 00000000-02693114SCREW
SERIAL 00000000-02693114 -
2724-34731 SPRING
SERIAL 00000000-02693114SPRING
SERIAL 00000000-02693114 -
2835658 TRANSFER PORT COVERTRANSFER PORT COVER
-
2927-35657 GASKETGASKET
-
3010-20665 SCREW (39)(40)
SERIAL 00000000-02923726SCREW (39)(40)
SERIAL 00000000-02923726 -
3010-20720 SCREW 40
SERIAL 02923727-09999999SCREW 40
SERIAL 02923727-09999999 -
31NLA CLAMP
SERIAL 02923727-09999999CLAMP
SERIAL 02923727-09999999 -
3231014 MOUNTMOUNT
-
3313-26992 LOCKWASHER)LOCKWASHER)
-
3411-20088 NUTNUT
-
35NLA COVER, CYLINDER BLOCK (39)(40)
SERIAL 00000000-03028360COVER, CYLINDER BLOCK (39)(40)
SERIAL 00000000-03028360 -
351016-7070A1 COVER, CYLINDER BLOCK (40)
SERIAL 03028361-09999999COVER, CYLINDER BLOCK (40)
SERIAL 03028361-09999999 -
3622-390721 PIPE PLUG (39)PIPE PLUG (39)
-
3622-328022 PIPE PLUG (40)PIPE PLUG (40)
-
3727-416151 GASKETGASKET
-
3810-20653 SCREW (39)
SERIAL 00000000-02098036SCREW (39)
SERIAL 00000000-02098036 -
3810-21091 SCREW (39)(40)
SERIAL 02098037-09999999SCREW (39)(40)
SERIAL 02098037-09999999 -
3911-20184 NUTNUT
-
4027-416141 GASKETGASKET
-
4146234 BAFFLE PLATEBAFFLE PLATE
-
4227-416141 GASKETGASKET
-
4346171 COVER, EXHAUST MANIFOLDCOVER, EXHAUST MANIFOLD
-
4410-28636 SCREWSCREW
