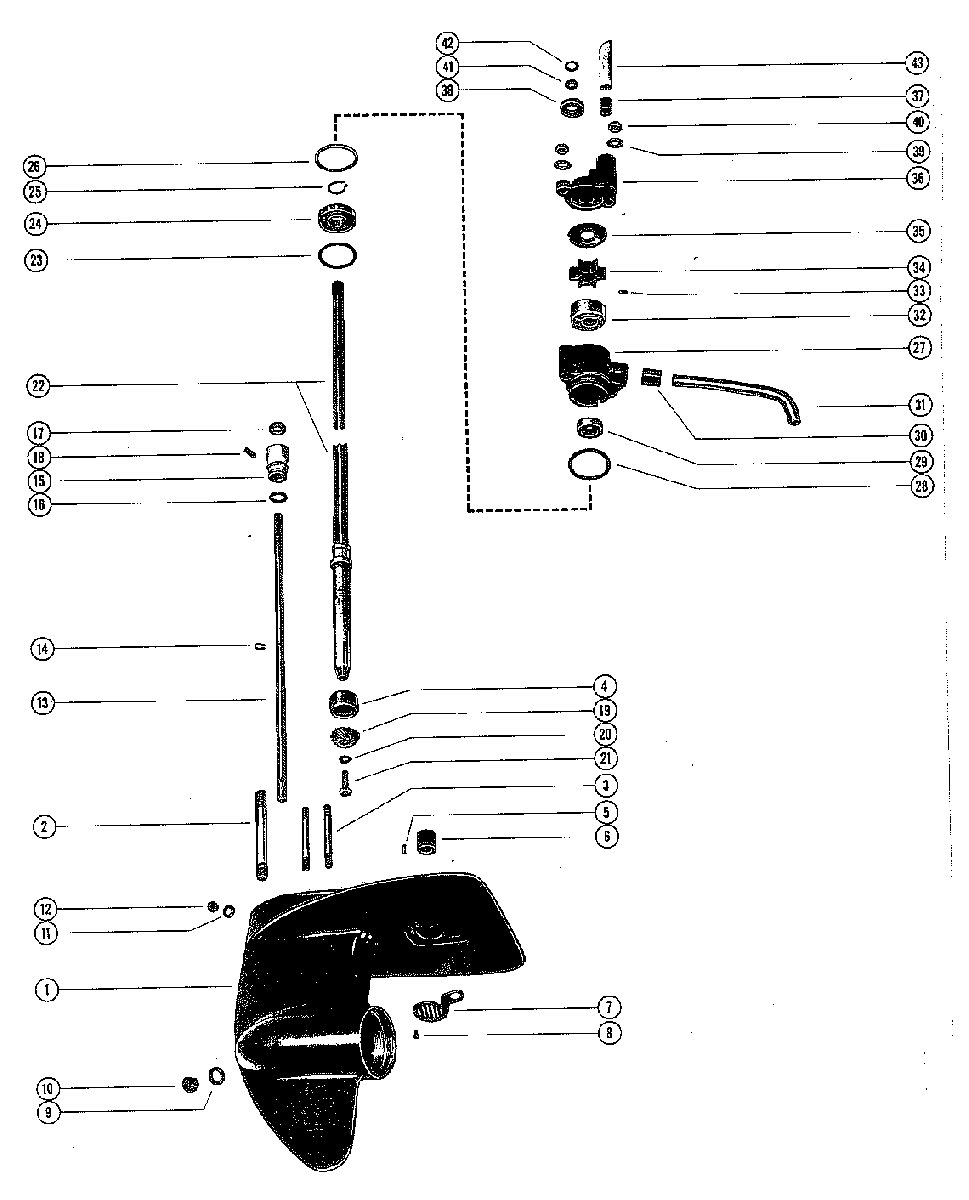

GEAR HOUSING (DRIVE SHAFT) (PAGE 2) для Mercury - 39 (1 CYL.) 1655013 THRU 2498135
-
№АртикулНазвание
-
-NLA G/HSG. COMP.(SHORT)(39)(40)
SERIAL 00000000-03028360G/HSG. COMP.(SHORT)(39)(40)
SERIAL 00000000-03028360 -
-1622-4408A4 HSG.COMP. (SHORT)(40)
SERIAL 03028361-09999999HSG.COMP. (SHORT)(40)
SERIAL 03028361-09999999 -
-NLA HSG.COMP. (LONG)(39/40)HSG.COMP. (LONG)(39/40)
-
11622-2244A18 G/HSG. (39)(40)
SERIAL 00000000-03028360G/HSG. (39)(40)
SERIAL 00000000-03028360 -
11622-4408A4 G/HSG. (40)
SERIAL 03028361-09999999G/HSG. (40)
SERIAL 03028361-09999999 -
2430-33076 BALL BEARINGBALL BEARING
-
2553-30523 RETAINING RINGRETAINING RING
-
2615-30527A1 SHIM ASSEMBLYSHIM ASSEMBLY
-
2746-46893A6 WATER PUMP HOUSING (39)WATER PUMP HOUSING (39)
-
2746-46893A3 WATER PUMP HOUSING (40)WATER PUMP HOUSING (40)
-
2825-29439 O-RINGO-RING
-
2926-30900T OIL SEALOIL SEAL
-
3026-33613 SEALSEAL
-
3132-34293 WATER TUBEWATER TUBE
-
3231707 INSERT (39)
SERIAL 00000000-02200317INSERT (39)
SERIAL 00000000-02200317 -
3270977T INSERT (39)(40)
SERIAL 02200318-09999999INSERT (39)(40)
SERIAL 02200318-09999999 -
3317-22060 PIN(39)
SERIAL 00000000-02278850PIN(39)
SERIAL 00000000-02278850 -
3328-8M0032835 KEY(39-)(40)
SERIAL 02278851-09999999KEY(39-)(40)
SERIAL 02278851-09999999 -
3447-22748 IMPELLER(39)
SERIAL 00000000-02278850IMPELLER(39)
SERIAL 00000000-02278850 -
3447-89981 IMPELLER (39)(40)
SERIAL 02278851-09999999IMPELLER (39)(40)
SERIAL 02278851-09999999 -
3530674 FACE PLATE (39)
SERIAL 00000000-02200317FACE PLATE (39)
SERIAL 00000000-02200317 -
3546895 FACE PLATE (39)(40)
SERIAL 02200318-09999999FACE PLATE (39)(40)
SERIAL 02200318-09999999 -
3630593A1 WATER PUMP COVER (39)
SERIAL 00000000-02200317WATER PUMP COVER (39)
SERIAL 00000000-02200317 -
36NLA WATER PUMP COVER (39-ALUMINUM)WATER PUMP COVER (39-ALUMINUM)
-
3693224A1 WATER PUMP COVER (39-PLASTIC)(40)WATER PUMP COVER (39-PLASTIC)(40)
-
3726-30811 SEAL (39)
SERIAL 00000000-01697722SEAL (39)
SERIAL 00000000-01697722 -
3726-36558 SEAL (39)(40)
SERIAL 01697723-09999999SEAL (39)(40)
SERIAL 01697723-09999999 -
-23-13127 SPACER(39)(40)
SERIAL 01697723-09999999SPACER(39)(40)
SERIAL 01697723-09999999 -
3826-30913 OIL SEALOIL SEAL
-
3912-46897 WASHER(39)
SERIAL 02200318-09999999WASHER(39)
SERIAL 02200318-09999999 -
3912-20533 WASHER (40)WASHER (40)
-
4011-20184 NUT(39)NUT(39)
-
4011-826709109 NUT (40)NUT (40)
-
4125-30526 RUBBER RINGRUBBER RING
-
4225-48171 O-RINGO-RING
-
4323-31792T SLEEVESLEEVE
