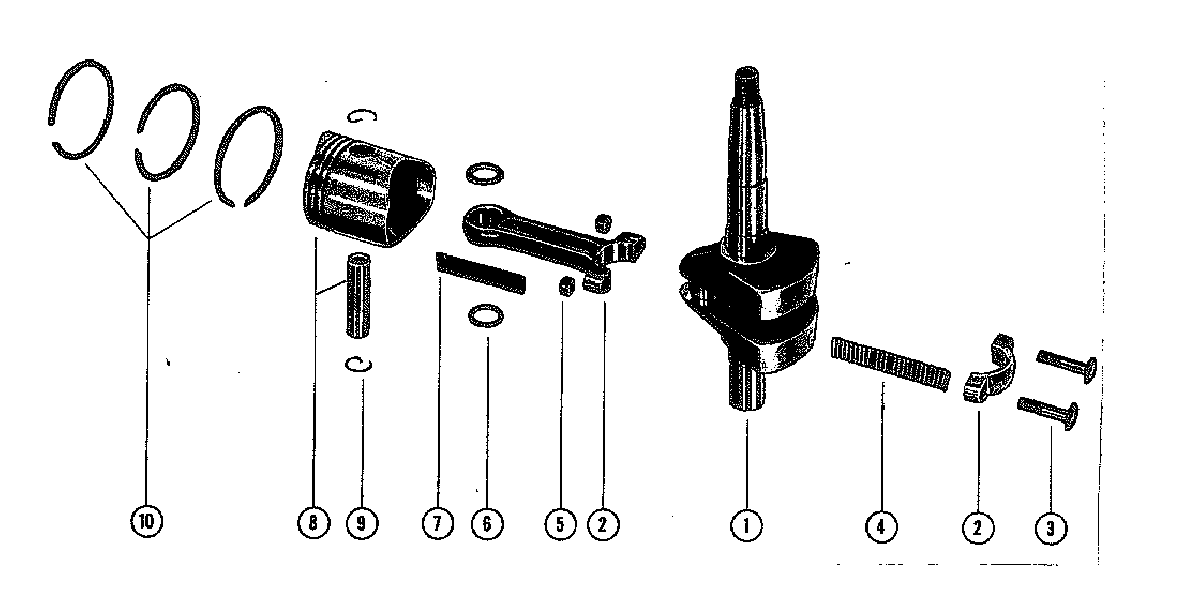

CRANKSHAFT, PISTON AND CONNECTING ROD для Mercury - 39 (1 CYL.) 1655013 THRU 2498135
-
№АртикулНазвание
-
1NLA CRANKSHAFT (39-SEE BLOCK COMMENTS)CRANKSHAFT (39-SEE BLOCK COMMENTS)
-
1427-3513 CRANKSHAFT (39-SEE BLOCK COMMENTS)(40)CRANKSHAFT (39-SEE BLOCK COMMENTS)(40)
-
2608-2021A2 CONNECTING ROD (39)
SERIAL 00000000-02098036CONNECTING ROD (39)
SERIAL 00000000-02098036 -
2608-7395A2 CONNECTING ROD (39)(40)
SERIAL 02098037-09999999CONNECTING ROD (39)(40)
SERIAL 02098037-09999999 -
3NLA SCREW (39)
SERIAL 00000000-02098036SCREW (39)
SERIAL 00000000-02098036 -
310-87374 SCREW (39)(40)
SERIAL 02098037-09999999SCREW (39)(40)
SERIAL 02098037-09999999 -
431-8M0045032 NEEDLE BEARINGNEEDLE BEARING
-
511-20061 NUTNUT
-
612-31433 WASHERWASHER
-
729-31505 NEEDLE BEARINGNEEDLE BEARING
-
8719-7391T3 PISTON AND PISTON PIN ASSEMBLYPISTON AND PISTON PIN ASSEMBLY
-
940-21666 LOCK RINGLOCK RING
-
1039-21665A12 PISTON RINGPISTON RING
