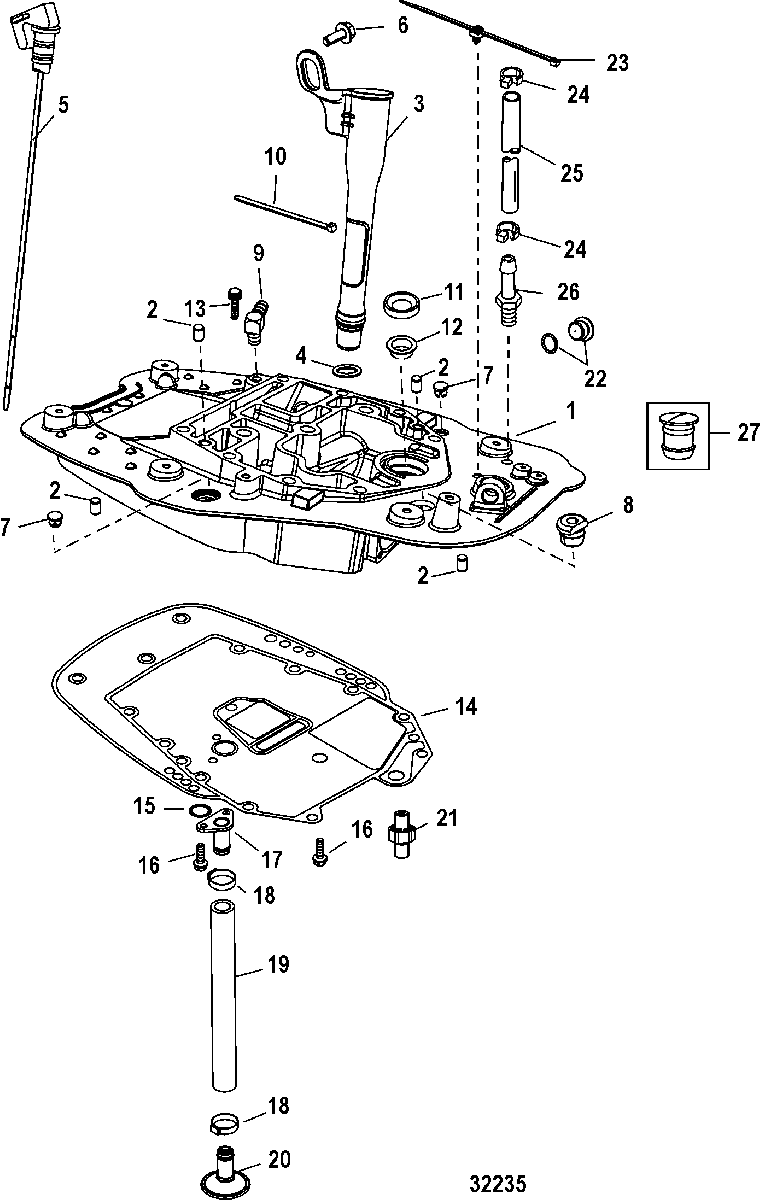

Adaptor Plate для Mercury - 40 EFI (4 CYL.)(4-STROKE) 0P515897 & Up
-
№АртикулНазвание
-
1825228T27 ADAPTOR PLATE ASSEMBLYADAPTOR PLATE ASSEMBLY
-
217-23784 PIN, DowelPIN, Dowel
-
38M0026249 DIPSTICK TUBE ASSEMBLY, PlasticDIPSTICK TUBE ASSEMBLY, Plastic
-
425-8M0008708 O-RINGO-RING
-
5825990 DIPSTICKDIPSTICK
-
610-4006731 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
719-822464 PLUGPLUG
-
825-19565002 GROMMETGROMMET
-
922-629101 FITTING, Elbow - 90 Degree (.125-27)FITTING, Elbow - 90 Degree (.125-27)
-
1054-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1126-66301 SEAL, OilSEAL, Oil
-
1223-859594 BUSHINGBUSHING
-
1310-4007455 SCREW, (M6 x 55)SCREW, (M6 x 55)
-
1427-892320001 GASKETGASKET
-
1525-845746 O-RINGO-RING
-
1610-8M4503518 SCREW, (M6 x 20) Stainless SteelSCREW, (M6 x 20) Stainless Steel
-
17893765 PLATE, Top Oil PickupPLATE, Top Oil Pickup
-
1854-855228 CLAMPCLAMP
-
1932-854793 HOSE, Oil PickupHOSE, Oil Pickup
-
20893700 BAFFLE, Oil Pick-upBAFFLE, Oil Pick-up
-
21881872A1 BODY, Oil Pressure ReliefBODY, Oil Pressure Relief
-
2219-8M0021330 PLUG, (M18)PLUG, (M18)
-
2354-899145 CLIP, Tie StrapCLIP, Tie Strap
-
2454-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
2532-8M0108355 HOSE, (57.00 Inches Bulk), Cut to 17 InchesHOSE, (57.00 Inches Bulk), Cut to 17 Inches
-
2622-291112 FITTINGFITTING
-
2719-8M0021917 PLUG
JetPLUG
Jet -
-27-883599A02 GASKET SETGASKET SET
