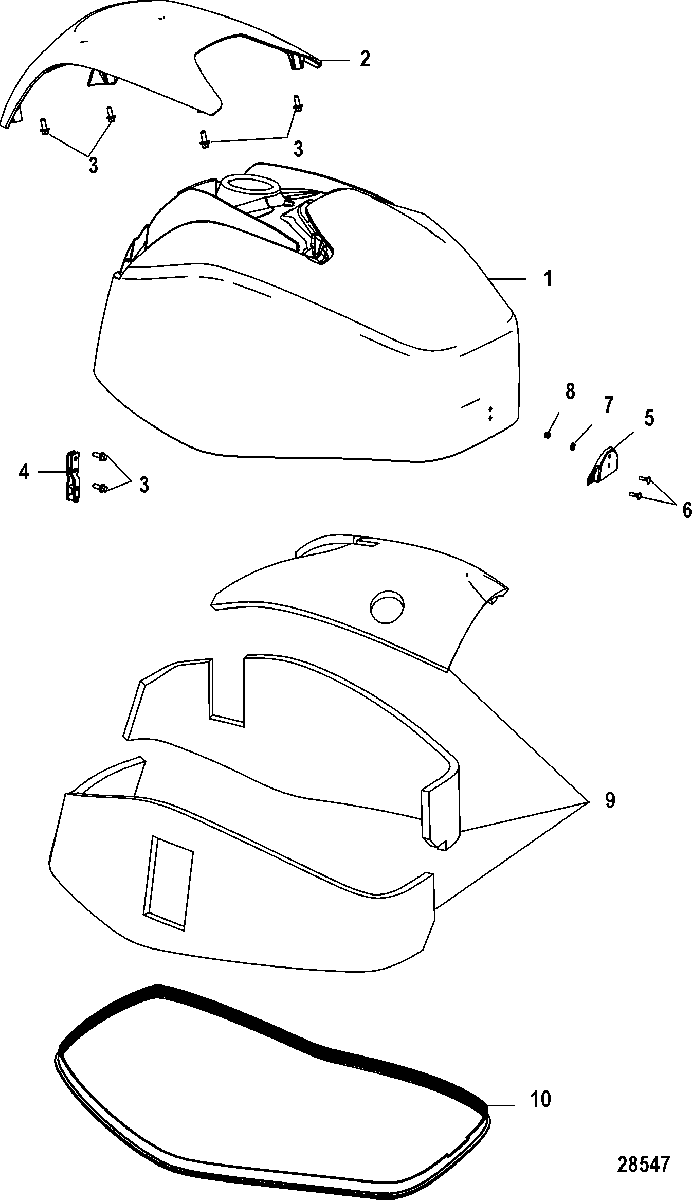

Top Cowl для Mercury - 40 EFI (4 CYL.)(4-STROKE) 0P515897 & Up
-
№АртикулНазвание
-
1100-8M0118165 TOP COWL ASSEMBLY, MercuryTOP COWL ASSEMBLY, Mercury
-
1100-8M0118167 TOP COWL ASSEMBLY, MarinerTOP COWL ASSEMBLY, Mariner
-
1100-8M0118165 TOP COWL ASSEMBLY, CamouflageTOP COWL ASSEMBLY, Camouflage
-
28M0118170 CAP, Air Dam - MercuryCAP, Air Dam - Mercury
-
28M0118172 CAP, Air Dam - MarinerCAP, Air Dam - Mariner
-
310-8M0103805 SCREW, (M6 x 16 MM) Stainless SteelSCREW, (M6 x 16 MM) Stainless Steel
-
48M0006055 BRACKETBRACKET
-
5826291T02 BRACKET, Front LatchBRACKET, Front Latch
-
610-8231871 SCREW, (M4 x 14.5)SCREW, (M4 x 14.5)
-
712-89302 WASHER, (.203 x .406 x .040)WASHER, (.203 x .406 x .040)
-
811-400632 NUTNUT
-
9834786A05 SOUND BLANKET KITSOUND BLANKET KIT
-
108M0109278 SEALSEAL
-
-37-8M0114767 DECAL SET, Mercury 40/Jet 40
SN# 1C104423 & BelowDECAL SET, Mercury 40/Jet 40
SN# 1C104423 & Below -
-37-8M0114992 DECAL SET, Mercury 40/Jet 40
SN# 1C104424 THRU 1C194949DECAL SET, Mercury 40/Jet 40
SN# 1C104424 THRU 1C194949 -
-37-896856002 DECAL, 40
SN# 1C194949 & BelowDECAL, 40
SN# 1C194949 & Below -
-37-8M0107467 DECAL SET, Mercury 40
SN# 1C194950 & UpDECAL SET, Mercury 40
SN# 1C194950 & Up -
-37-8M0107467 DECAL SET, ME 40 HP 4CYL
SN# 1C262470 & UpDECAL SET, ME 40 HP 4CYL
SN# 1C262470 & Up -
-37-8M0063348 DECAL, 40
SN# 1C194950 & UpDECAL, 40
SN# 1C194950 & Up -
-37-8M0076216 DECAL SET, Mercury 40
ItalyDECAL SET, Mercury 40
Italy -
-37-8M0114992 DECAL SET, Mercury 50
SN# 1C104423 & BelowDECAL SET, Mercury 50
SN# 1C104423 & Below -
-37-8M0114992 DECAL SET, Mercury 50
SN# 1C104424 THRU 1C194949DECAL SET, Mercury 50
SN# 1C104424 THRU 1C194949 -
-37-896856003 DECAL, Rear - 50
SN# 1C194949 & BelowDECAL, Rear - 50
SN# 1C194949 & Below -
-37-8M0107467 DECAL SET, Mercury 50
SN# 1C194950 & UpDECAL SET, Mercury 50
SN# 1C194950 & Up -
-37-8M0107467 DECAL SET, ME 50HP 4CYL
SN# 1C262470 & UpDECAL SET, ME 50HP 4CYL
SN# 1C262470 & Up -
-37-8M0063349 DECAL, 50
SN# 1C194950 & UpDECAL, 50
SN# 1C194950 & Up -
-37-8M0114992 DECAL SET, Mercury 60
SN# 1C104423 & BelowDECAL SET, Mercury 60
SN# 1C104423 & Below -
-37-8M0114992 DECAL SET, Mercury 60
SN# 1C104424 THRU 1C194949DECAL SET, Mercury 60
SN# 1C104424 THRU 1C194949 -
-37-8M0114767 DECAL, Rear - 60
SN# 1C194949 & BelowDECAL, Rear - 60
SN# 1C194949 & Below -
-37-8M0107467 DECAL SET, Mercury 60
SN# 1C194950 & UpDECAL SET, Mercury 60
SN# 1C194950 & Up -
-37-8M0107467 DECAL SET, ME 60 HP 4CYL
SN# 1C262470 & UpDECAL SET, ME 60 HP 4CYL
SN# 1C262470 & Up -
-37-8M0063350 DECAL, 60
SN# 1C194950 & UpDECAL, 60
SN# 1C194950 & Up -
-37-883541A08 DECAL SET
Mariner 40DECAL SET
Mariner 40 -
-37-8M0098299 DECAL SET, MA 40EFI 4CYL 4S
SN# 1C26270 & UpDECAL SET, MA 40EFI 4CYL 4S
SN# 1C26270 & Up -
-37-8M0012388 DECAL, 40DECAL, 40
-
-37-883533A08 DECAL SET
Mariner 50DECAL SET
Mariner 50 -
-37-8M0098300 DECAL SET, MA 50EFI 4CYL 4S
SN# 1C262470 & UpDECAL SET, MA 50EFI 4CYL 4S
SN# 1C262470 & Up -
-37-8M0012389 DECAL, Rear - 50DECAL, Rear - 50
-
-37-883534A08 DECAL SET
Mariner 60DECAL SET
Mariner 60 -
-37-8M0098301 DECAL SET, MA 60EFI 4CYL 4S
SN# 1C262470 & UpDECAL SET, MA 60EFI 4CYL 4S
SN# 1C262470 & Up -
-37-8M0012390 DECAL, Rear - 60DECAL, Rear - 60
-
-37-883592A09 DECAL SET, CamouflageDECAL SET, Camouflage
-
-37-8M0061193 DECAL, Jet Drive
SN# 1C194949 & BelowDECAL, Jet Drive
SN# 1C194949 & Below -
-37-8M0063354 DECAL, Jet Drive
SN# 1C194950 & UpDECAL, Jet Drive
SN# 1C194950 & Up
