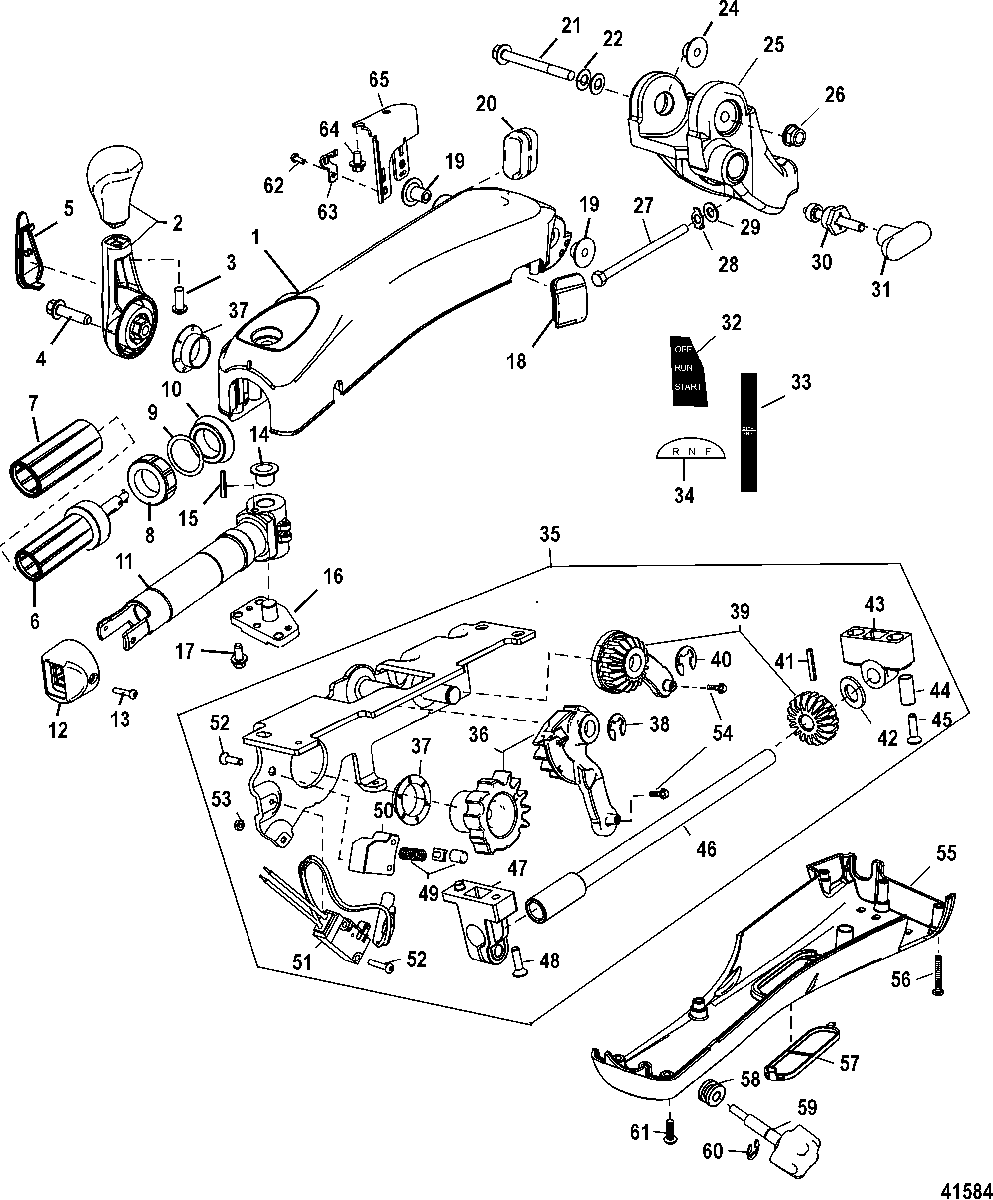

Big Tiller Handle Kit(40-60 EFI FourStroke-Manual) для Mercury - 40 EFI (4 CYL.)(4-STROKE) 0P515897 & Up
-
№АртикулНазвание
-
-879291A04 TILLER HANDLE ASSEMBLY, Big Tiller, 40-60 EFI FourStroke, Manual Mechanical Non Power SteeringTILLER HANDLE ASSEMBLY, Big Tiller, 40-60 EFI FourStroke, Manual Mechanical Non Power Steering
-
1879346T02 HOUSING, Steering Handle, UpperHOUSING, Steering Handle, Upper
-
-37-8M0032728 DECAL, Lanyard, BlackDECAL, Lanyard, Black
-
2879346A01 SHIFT HANDLE ASSEMBLYSHIFT HANDLE ASSEMBLY
-
310-83002430 SCREWSCREW
-
410-8M0103813 SCREW, (M8 x 30)SCREW, (M8 x 30)
-
5879346T15 COVER, Shift Handle-MercuryCOVER, Shift Handle-Mercury
-
6879346T05 THROTTLE GRIP ASSEMBLYTHROTTLE GRIP ASSEMBLY
-
7879346T06 GRIP, RubberGRIP, Rubber
-
811-8M0034107 NUTNUT
-
912-8M0024573 WASHERWASHER
-
108M0022037 GROMMETGROMMET
-
11879346T08 CHASSIS, Throttle GripCHASSIS, Throttle Grip
-
128M0030401 CAP, Handle Trim SwitchCAP, Handle Trim Switch
-
1310-4005685 SCREW, (M4 x 10)SCREW, (M4 x 10)
-
1423-8M0021535 BUSHINGBUSHING
-
1517-8M0022764 DOWEL PINDOWEL PIN
-
16879346T16 BEARING CAPBEARING CAP
-
1710-88552514 SCREW, (M6 x 14 MM) Stainless SteelSCREW, (M6 x 14 MM) Stainless Steel
-
1825-879346T19 GROMMETGROMMET
-
1923-8M0035136 BUSHINGBUSHING
-
208M0045301 GROMMETGROMMET
-
2110-823567105 SCREW, (M10 x 105) Hex Flange - Stainless SteelSCREW, (M10 x 105) Hex Flange - Stainless Steel
-
2212-4002319 WASHERWASHER
-
2312-12024 WASHER, (.402 x .787 x .039 Bellevi)WASHER, (.402 x .787 x .039 Bellevi)
-
2423-8M0031370 BUSHINGBUSHING
-
25879346T26 BRACKETBRACKET
-
2611-826292 NUT, (M10) Brass/Nickel PlatedNUT, (M10) Brass/Nickel Plated
-
2710-82484890 SCREW, (M10 x 90)SCREW, (M10 x 90)
-
2814-8M0044744 TAB WASHERTAB WASHER
-
2912-4002319 WASHERWASHER
-
30879346T12 TILT LOCK ASSEMBLYTILT LOCK ASSEMBLY
-
31879346T11 HANDLEHANDLE
-
3237-8M0033313 DECAL, On-Off-StartDECAL, On-Off-Start
-
3337-8M0029029 DECAL, ThrottleDECAL, Throttle
-
3437-8M0029030 DECAL, R-N-FDECAL, R-N-F
-
35879347T07 GEAR PLATE ASSEMBLYGEAR PLATE ASSEMBLY
-
36879347A04 SHIFT ARM AND GEAR ASSEMBLYSHIFT ARM AND GEAR ASSEMBLY
-
3723-8M0022826 BUSHINGBUSHING
-
3853-29641 E RINGE RING
-
39879347A05 THROTTLE GEAR ASSEMBLYTHROTTLE GEAR ASSEMBLY
-
4053-29641 E RINGE RING
-
4117-8M0028305 PINPIN
-
4215-8M0028540 SHIM, (.005)SHIM, (.005)
-
4215-8M0028541 SHIM, (.010)SHIM, (.010)
-
4215-8M0028542 SHIM, (.020)SHIM, (.020)
-
4215-8M0028543 SHIM, (.040)SHIM, (.040)
-
4323-8M0027443 PILLOW BLOCKPILLOW BLOCK
-
4423-8M0028294 BUSHINGBUSHING
-
4510-8M0103808 SCREW, (M6 x 30 MM) Stainless SteelSCREW, (M6 x 30 MM) Stainless Steel
-
46NSS NOT SOLD SEPARATE, Throttle ShaftNOT SOLD SEPARATE, Throttle Shaft
-
478M4501323 BLOCK, FrictionBLOCK, Friction
-
4810-8M0031550 SCREW, (M4 x 0.7 x 16)SCREW, (M4 x 0.7 x 16)
-
49879347A08 SPRING AND GUIDE KITSPRING AND GUIDE KIT
-
508M0028323 RETAINERRETAINER
-
5184-879347T06 SWITCH, NeutralSWITCH, Neutral
-
5210-8M0034874 SCREW, (M3 x 0.5)SCREW, (M3 x 0.5)
-
5311-8M0034875 NUT, (M3 x 0.5 Hex)NUT, (M3 x 0.5 Hex)
-
5410-8M0085515 SCREW, (#8-32 x .375), Not included in Gear Plate AssemblySCREW, (#8-32 x .375), Not included in Gear Plate Assembly
-
55879346T04 COVER, Steering Handle, LowerCOVER, Steering Handle, Lower
-
5610-4001991 SCREW, (M4 x 35)SCREW, (M4 x 35)
-
57879346T10 COVER, Switch/LightCOVER, Switch/Light
-
5825-828249 GROMMETGROMMET
-
59879346A03 THROTTLE FRICTION KNOB ASSEMBLYTHROTTLE FRICTION KNOB ASSEMBLY
-
6053-29641 E RINGE RING
-
6110-4001987 SCREW, (M4 x 16)SCREW, (M4 x 16)
-
6210-8M0085515 SCREW, (#8-32 x .375)SCREW, (#8-32 x .375)
-
638M0028230 RETAINERRETAINER
-
6410-82130010 SCREW, (M6 x 10)SCREW, (M6 x 10)
-
65879346T17 BRACKET, Shift MountBRACKET, Shift Mount
-
NS90-899984003 INSTALLATION MANUAL, Big Tiller, ManualINSTALLATION MANUAL, Big Tiller, Manual
-
NS90-8M0063659 OPERATION MANUAL, Big Tiller -Manual, Mechanical and DTSOPERATION MANUAL, Big Tiller -Manual, Mechanical and DTS
