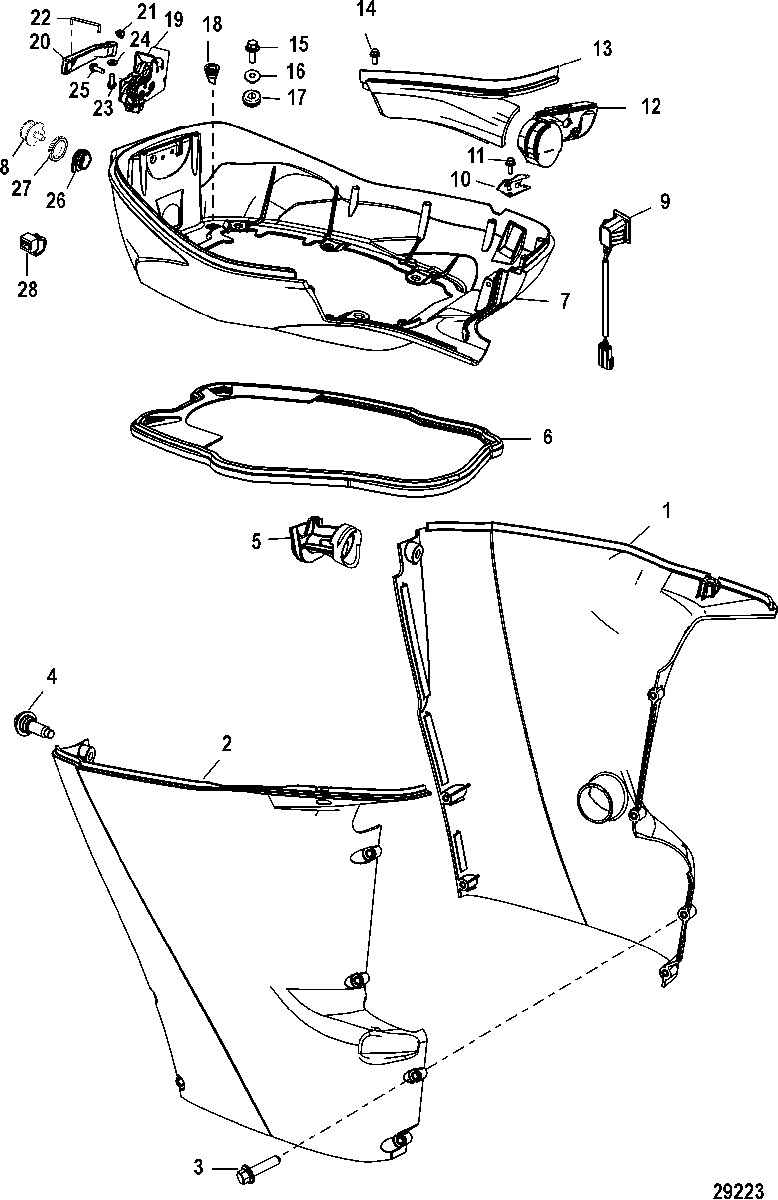

Bottom Cowl для Mercury - 40 EFI (4 CYL.)(4-STROKE) 0P515897 & Up
-
№АртикулНазвание
-
14020-826277T04 CHAP, Long - PortCHAP, Long - Port
-
14020-826277T05 CHAP, Long - Port - CamouflageCHAP, Long - Port - Camouflage
-
14020-852554T03 CHAP, Short - Port
JetCHAP, Short - Port
Jet -
24020-826278T08 CHAP, Long - StarboardCHAP, Long - Starboard
-
24020-826278T09 CHAP, Long - Starboard - CamouflageCHAP, Long - Starboard - Camouflage
-
24020-852555T06 CHAP, Short - Starboard
JetCHAP, Short - Starboard
Jet -
310-8M0022324 SCREW, (M6 x 25 MM)
Quantity of 4 on JetSCREW, (M6 x 25 MM)
Quantity of 4 on Jet -
410-892073002 SHOULDER SCREW, (M6)SHOULDER SCREW, (M6)
-
58M0109713 BOOTBOOT
-
68M0026035 SEALSEAL
-
7889246T99 PANPAN
-
822-827948 FITTINGFITTING
-
987-8M0042300 SWITCH, TrimSWITCH, Trim
-
108M4501716 HOOKHOOK
-
1110-8M0103806 SCREW, (M6 x 20 MM) Stainless SteelSCREW, (M6 x 20 MM) Stainless Steel
-
128M4502035 GROMMETGROMMET
-
13879147T24 CAPCAP
-
13879147T24 CAP, CamouflageCAP, Camouflage
-
1410-8M0103806 SCREW, (M6 x 20 MM) Stainless SteelSCREW, (M6 x 20 MM) Stainless Steel
-
1510-8M0103807 SCREW, (M6 x 25 MM) Stainless SteelSCREW, (M6 x 25 MM) Stainless Steel
-
1623-856954 BUSHINGBUSHING
-
1725-8M0025696 GROMMETGROMMET
-
18888819002 DRAIN, CowlDRAIN, Cowl
-
19822426T03 LATCH ASSEMBLY, Rear
SN# 1C081902 & BelowLATCH ASSEMBLY, Rear
SN# 1C081902 & Below -
19822426T03 LATCH ASSEMBLY, Rear
SN# 1C081903 & UpLATCH ASSEMBLY, Rear
SN# 1C081903 & Up -
20822426T03 HANDLE, Rear Latch
SN# 1C081902 & BelowHANDLE, Rear Latch
SN# 1C081902 & Below -
20NSS NOT SOLD SEPARATE, Handle-Rear Latch
SN# 1C081903 & UpNOT SOLD SEPARATE, Handle-Rear Latch
SN# 1C081903 & Up -
218M0006060 SEALSEAL
-
22822426T03 LINKLINK
-
2310-88552514 SCREW, (M6 x 14 MM) Stainless SteelSCREW, (M6 x 14 MM) Stainless Steel
-
2412-897936 WASHERWASHER
-
2510-8M0103806 SCREW, (M6 x 20 MM) Stainless SteelSCREW, (M6 x 20 MM) Stainless Steel
-
2625-8M4503674 GROMMETGROMMET
-
2712-855576 WASHER
NLA - No Longer RequiredWASHER
NLA - No Longer Required -
2854-850181 TIE STRAP, (11.750 Inches)TIE STRAP, (11.750 Inches)
-
-880093A03 TILLER HANDLE KIT, Remote Control to Tiller HandleTILLER HANDLE KIT, Remote Control to Tiller Handle
