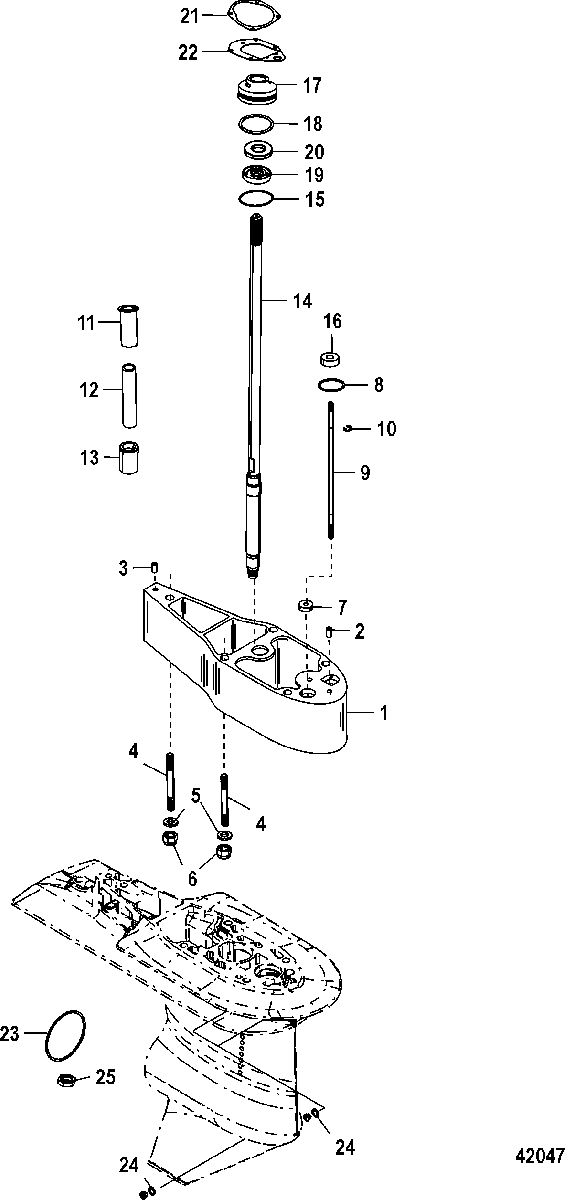

Extension Kit - 2.5 Inch, Driveshaft Housing (879150A88) для Mercury - 40 EFI (4 CYL.)(4-STROKE) 0P515897 & Up
-
№АртикулНазвание
-
-879150A88 EXTENSION KIT, Driveshaft -2.5 InchEXTENSION KIT, Driveshaft -2.5 Inch
-
1816696T5 SPACERSPACER
-
217-43044 PIN, Dowel - Without Hole (.375 x .625)PIN, Dowel - Without Hole (.375 x .625)
-
317-8M0084244 PIN, Dowel - With Hole (.375 x .625)PIN, Dowel - With Hole (.375 x .625)
-
416-8M0034425 STUD, (M10 x 120)STUD, (M10 x 120)
-
512-856774 WASHER, (.406 x .750 x .105) Stainless SteelWASHER, (.406 x .750 x .105) Stainless Steel
-
611-40140 NUT, (M10)NUT, (M10)
-
723-813745 SPACERSPACER
-
825-45258 O-RING, (.987 x .103)O-RING, (.987 x .103)
-
9879172A39 SHIFT SHAFT ASSEMBLYSHIFT SHAFT ASSEMBLY
-
1053-29641 E RINGE RING
-
118M0109708 COUPLERCOUPLER
-
1232-8289372 TUBE, WaterTUBE, Water
-
13430232 SEALSEAL
-
1445-880184 DRIVESHAFTDRIVESHAFT
-
1626-8164641 SEAL, OilSEAL, Oil
-
1515-8M0063262 SHIM SETSHIM SET
-
1746-812966A7 BASE ASSEMBLY, Water PumpBASE ASSEMBLY, Water Pump
-
1825-30224 O-RING, (1.859 x .139)O-RING, (1.859 x .139)
-
1926-814669 SEAL, OilSEAL, Oil
-
2026-814670 SEAL, OilSEAL, Oil
-
2127-822189 GASKET, Upper Water PumpGASKET, Upper Water Pump
-
2227-8M4502052 GASKETGASKET
-
2325-815460 O-RINGO-RING
-
2426-830749 SEALSEAL
-
2511-559101 NUT, Pinion GearNUT, Pinion Gear
-
-90-879345036 INSTRUCTION SHEET, Extension KitINSTRUCTION SHEET, Extension Kit
