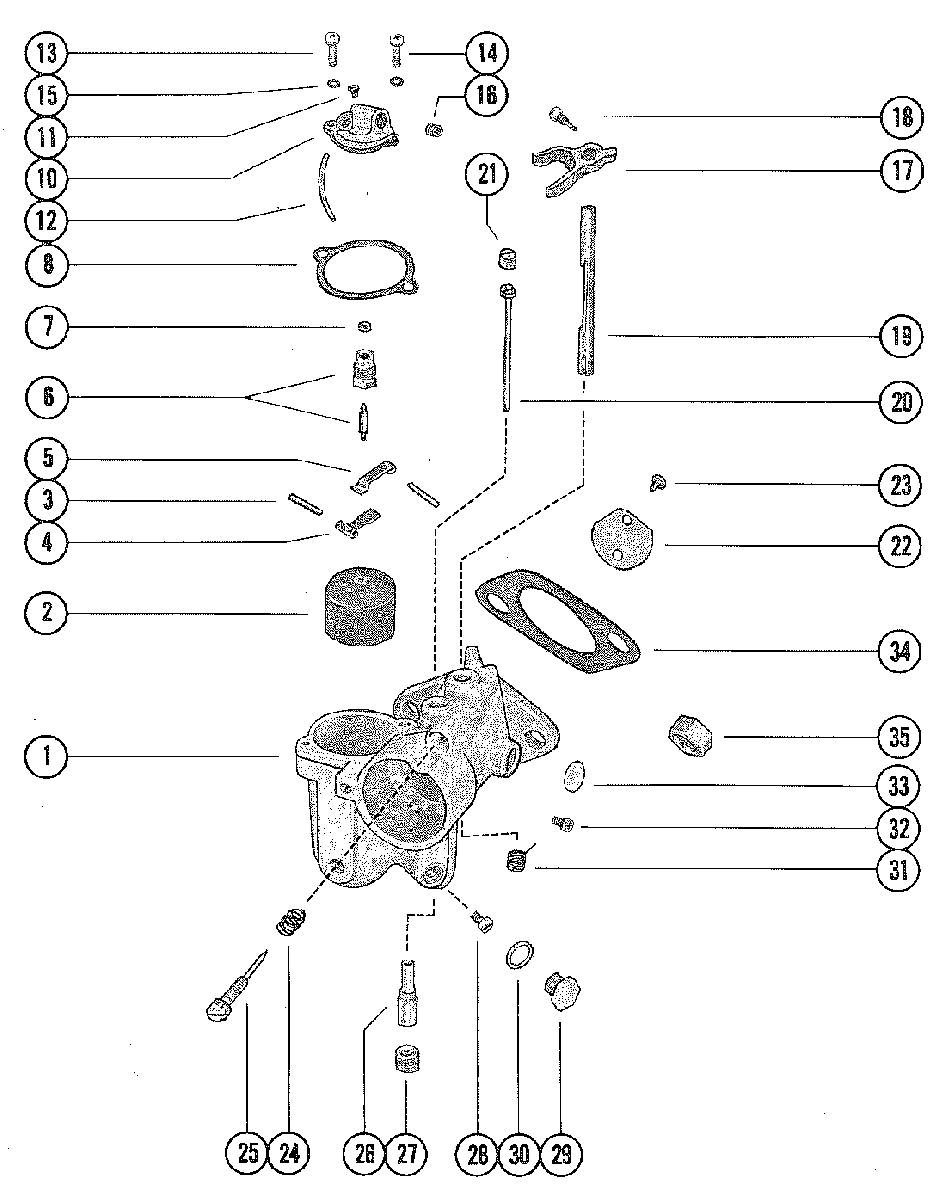

CARBURETOR ASSEMBLY для Mercury - 402, 40 (2 CYL.) 4860103 THRU 5556229
-
№АртикулНазвание
-
11368-7226A19 CARBURETOR ASSEMBLYCARBURETOR ASSEMBLY
-
21395-8673 FLOAT ASSEMBLYFLOAT ASSEMBLY
-
390-8M0143356 PIN, FLOAT LEVER PINIONPIN, FLOAT LEVER PINION
-
490-8M0143356 LEVER, FLOAT (LOWER)LEVER, FLOAT (LOWER)
-
590-8M0143356 LEVER, FLOAT (UPPER)LEVER, FLOAT (UPPER)
-
61395-83181 INLET NEEDLE, SEAT AND GASKETINLET NEEDLE, SEAT AND GASKET
-
790-8M0143356 GASKET, INLET SEATGASKET, INLET SEAT
-
890-8M0143356 GASKET, FLOAT BOWL COVERGASKET, FLOAT BOWL COVER
-
101395-5680 COVER, FLOAT BOWLCOVER, FLOAT BOWL
-
111395-5733 JET, BOWL VENT (.092)JET, BOWL VENT (.092)
-
1232-892024122 HOSE, ECONOMIZERHOSE, ECONOMIZER
-
1310-52195 SCREW, FLOAT BOWL COVERSCREW, FLOAT BOWL COVER
-
141395-4804 SCREW, FLOAT BOWL COVERSCREW, FLOAT BOWL COVER
-
1513-26995 LOCKWASHER, FLOAT BOWL COVER SCREWLOCKWASHER, FLOAT BOWL COVER SCREW
-
161395-4805 SCREEN, FILTERSCREEN, FILTER
-
1774371 LEVER, THROTTLELEVER, THROTTLE
-
181395-6027 SCREW, THROTTLE STOP LEVERSCREW, THROTTLE STOP LEVER
-
191395-7942 SHAFT, THROTTLESHAFT, THROTTLE
-
2090-8M0143356 TUBE, IDLETUBE, IDLE
-
211395-4540 SCREW, BODY (IDLE TUBE)SCREW, BODY (IDLE TUBE)
-
221395-9017 SHUTTER, THROTTLESHUTTER, THROTTLE
-
2390-8M0143356 SCREW AND LOCKWASHER, THROTTE SHUTTERSCREW AND LOCKWASHER, THROTTE SHUTTER
-
2490-8M0143356 SPRING, IDLE ADJUSTMENT SCREWSPRING, IDLE ADJUSTMENT SCREW
-
251399-3515 SCREW, IDLE ADJUSTMENTSCREW, IDLE ADJUSTMENT
-
2690-8M0143356 NOZZLE, MAINNOZZLE, MAIN
-
271395-4542 SCREW, PLUG - MAIN NOZZLESCREW, PLUG - MAIN NOZZLE
-
281395-6201 JET, MAIN FUEL (.080)JET, MAIN FUEL (.080)
-
281399-3520 JET, MAIN FUEL (.0785) - STANDARDJET, MAIN FUEL (.0785) - STANDARD
-
281399-3796 JET, MAIN FUEL (.076)JET, MAIN FUEL (.076)
-
281399-3794 JET, MAIN FUEL (.074)JET, MAIN FUEL (.074)
-
291395-4541 SCREW, PLUG - MAIN FUEL JET CHANNELSCREW, PLUG - MAIN FUEL JET CHANNEL
-
3090-8M0143356 GASKET, JET CHANNEL PLUG SCREWGASKET, JET CHANNEL PLUG SCREW
-
3190-8M0143356 SPRING, THROTTLE SHAFT RETURNSPRING, THROTTLE SHAFT RETURN
-
321395-4543 SCREW, BODY CHANNELSCREW, BODY CHANNEL
-
3390-8M0143356 WELCH PLUG, BODY CHANNELWELCH PLUG, BODY CHANNEL
-
331395-879194024 GASKET AND PACKING SET (1 PER CARBURETOR)GASKET AND PACKING SET (1 PER CARBURETOR)
-
331395-51091 REPAIR PARTS KIT (1PER CARBURETOR)REPAIR PARTS KIT (1PER CARBURETOR)
-
3427-481641 GASKET, CARBURETOR FLANGEGASKET, CARBURETOR FLANGE
-
3511-64809 NUT, CARBURETOR MOUNTING STUDNUT, CARBURETOR MOUNTING STUD
