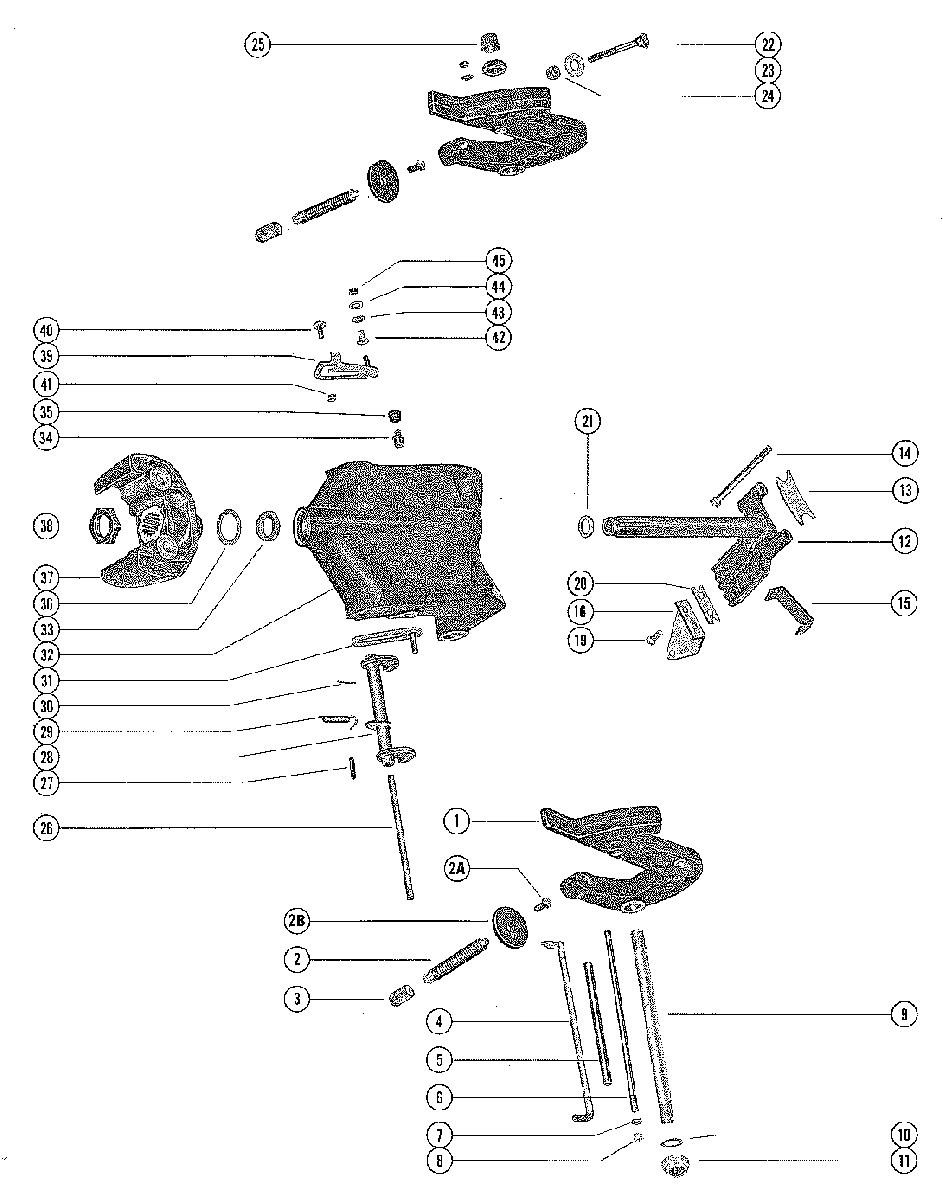

CLAMP AND SWIVEL BRACKET ASSEMBLY для Mercury - 402, 40 (2 CYL.) 4860103 THRU 5556229
-
№АртикулНазвание
-
11427-5611A4 CLAMP BRACKET ASSEMBLYCLAMP BRACKET ASSEMBLY
-
210-78492A1 THUMB SCREW ASSEMLBYTHUMB SCREW ASSEMLBY
-
2A10-78495 SCREW, WASHER TO THUMB SCREWSCREW, WASHER TO THUMB SCREW
-
2B12-78493 WASHER, THUMB SCREWWASHER, THUMB SCREW
-
375043 CAP, THUMB SCREWCAP, THUMB SCREW
-
417-8M0026068 TILT LOCK PIN ASSEMBLYTILT LOCK PIN ASSEMBLY
-
523-59623 SPACER, CLAMP BRACKET STUDSPACER, CLAMP BRACKET STUD
-
616-59625 STUD, CLAMP BRACKETSTUD, CLAMP BRACKET
-
713-26993 LOCKWASHER, CLAMP BRACKET STUDLOCKWASHER, CLAMP BRACKET STUD
-
811-28770 NUT, CLAMP BRACKET STUDNUT, CLAMP BRACKET STUD
-
98M0041936 TUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKETTUBE, TILT - CLAMP BRACKET TO SWIVEL BRACKET
-
1012-52864 WASHER, CLAMP BRACKET TO SWIVEL BRACKETWASHER, CLAMP BRACKET TO SWIVEL BRACKET
-
1111-858869 NUT, TILT TUBENUT, TILT TUBE
-
1288798A23 SWIVEL PIN ASSEMBLY (SHORT SHAFT)
MANUALSWIVEL PIN ASSEMBLY (SHORT SHAFT)
MANUAL -
1288798A24 SWIVEL PIN ASSEMBLY (LONG SHAFT)
MANUALSWIVEL PIN ASSEMBLY (LONG SHAFT)
MANUAL -
1269540A3 SWIVEL PIN ASSEMBLY (SHORT SHAFT)
ELECTRICSWIVEL PIN ASSEMBLY (SHORT SHAFT)
ELECTRIC -
1269540A4 SWIVEL PIN ASSEMBLY (LONG SHAFT)
ELECTRICSWIVEL PIN ASSEMBLY (LONG SHAFT)
ELECTRIC -
1330711 BUMPER, STEERING ARMBUMPER, STEERING ARM
-
1410-33986 SCREW, UPPER MOUNT TO STEERING ARMSCREW, UPPER MOUNT TO STEERING ARM
-
1562297 BUMPER, STEERING ARM
MANUALBUMPER, STEERING ARM
MANUAL -
1676535T BRACKET, RIDE-GUIDE ATTACHING
MANUALBRACKET, RIDE-GUIDE ATTACHING
MANUAL -
1910-34352 SCREW, BRACKET TO STEERING ARM (7/8")
MANUALSCREW, BRACKET TO STEERING ARM (7/8")
MANUAL -
2076533 STRAP, BRACKET SCREW
MANUALSTRAP, BRACKET SCREW
MANUAL -
2112-52865 WASHER, SWIVEL PINWASHER, SWIVEL PIN
-
2210-68298 BOLT, CLAMP BRACKET TO BOAT TRANSOM
(LOWER)BOLT, CLAMP BRACKET TO BOAT TRANSOM
(LOWER) -
2210-68299 BOLT, CLAMP BRACKET TO BOAT TRANSOM
(UPPER)BOLT, CLAMP BRACKET TO BOAT TRANSOM
(UPPER) -
2312-46765 WASHER, CLAMP BRACKE BOLT
(LOWER)WASHER, CLAMP BRACKE BOLT
(LOWER) -
2312-68300 WASHER, CLAMP BRACKET BOLT
(UPPER)WASHER, CLAMP BRACKET BOLT
(UPPER) -
2411-82670912 NUT, CLAMP BRACKET BOLTNUT, CLAMP BRACKET BOLT
-
2553078 CAP, PLASTIC - TILT TUBECAP, PLASTIC - TILT TUBE
-
2656349 SHAFT, REVERSE LOCK TO SWIVEL BRACKETSHAFT, REVERSE LOCK TO SWIVEL BRACKET
-
2717-25598 ROLL PIN, REVERSE LOCK SPRING ATTACHINGROLL PIN, REVERSE LOCK SPRING ATTACHING
-
2887430 REVERSE LOCK ASSEMBLYREVERSE LOCK ASSEMBLY
-
2924-29821 SPRING, REVERSE LOCK TENSIONSPRING, REVERSE LOCK TENSION
-
3018-45882 COTTER PIN, REVERSE LOCK TO SHAFTCOTTER PIN, REVERSE LOCK TO SHAFT
-
3147912A2 LEVER ASSEMBLY, TILT STOP - STARBOARD SIDELEVER ASSEMBLY, TILT STOP - STARBOARD SIDE
-
321481-7656A1 SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)SWIVEL BRACKET ASSEMBLY (SHORT SHAFT)
-
321480-7655A1 SWIVEL BRACKET ASSEMBLY (LONG SHAFT)SWIVEL BRACKET ASSEMBLY (LONG SHAFT)
-
3326-32911 OIL SEAL, SWIVEL BRACKETOIL SEAL, SWIVEL BRACKET
-
3422-74036 FITTING, GREASE - SWIVEL BRACKETFITTING, GREASE - SWIVEL BRACKET
-
3519-77633Q LUBRICAP, SWIVEL BRACKET GREASE FITTINGLUBRICAP, SWIVEL BRACKET GREASE FITTING
-
3612-25176 WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)WASHER, SWIVEL PIN TO BOTTOM YOKE (.060)
-
3612-26837 WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)WASHER, SWIVEL PIN TO BOTTOM YOKE (.065)
-
3777416T1 YOKE, BOTTOMYOKE, BOTTOM
-
3853-77415 RETIANING RING, BOTTOM YOKERETIANING RING, BOTTOM YOKE
-
3947913A2 LEVER ASSEMBLY, TILT LOCK - PORT SIDELEVER ASSEMBLY, TILT LOCK - PORT SIDE
-
4010-69087 SCREW, TILT LOCK AND STOP LEVER TO SWIVEL BRACKETSCREW, TILT LOCK AND STOP LEVER TO SWIVEL BRACKET
-
4111-29250 NUT, TILT LOCK AND STOP LEVER SCREWNUT, TILT LOCK AND STOP LEVER SCREW
-
4223-47911 BUSHING, TILT LOCK AND STOP LEVERBUSHING, TILT LOCK AND STOP LEVER
-
4313-34632 WASHER, WAVE - TILT LOCK AND STOP LEVERWASHER, WAVE - TILT LOCK AND STOP LEVER
-
4412-56720 WASHER, TILT LOCK AND STOP LEVERWASHER, TILT LOCK AND STOP LEVER
-
4511-29250 NUT, TILT LOCK AND STOP LEVER TO CLAMP BRACKETNUT, TILT LOCK AND STOP LEVER TO CLAMP BRACKET
