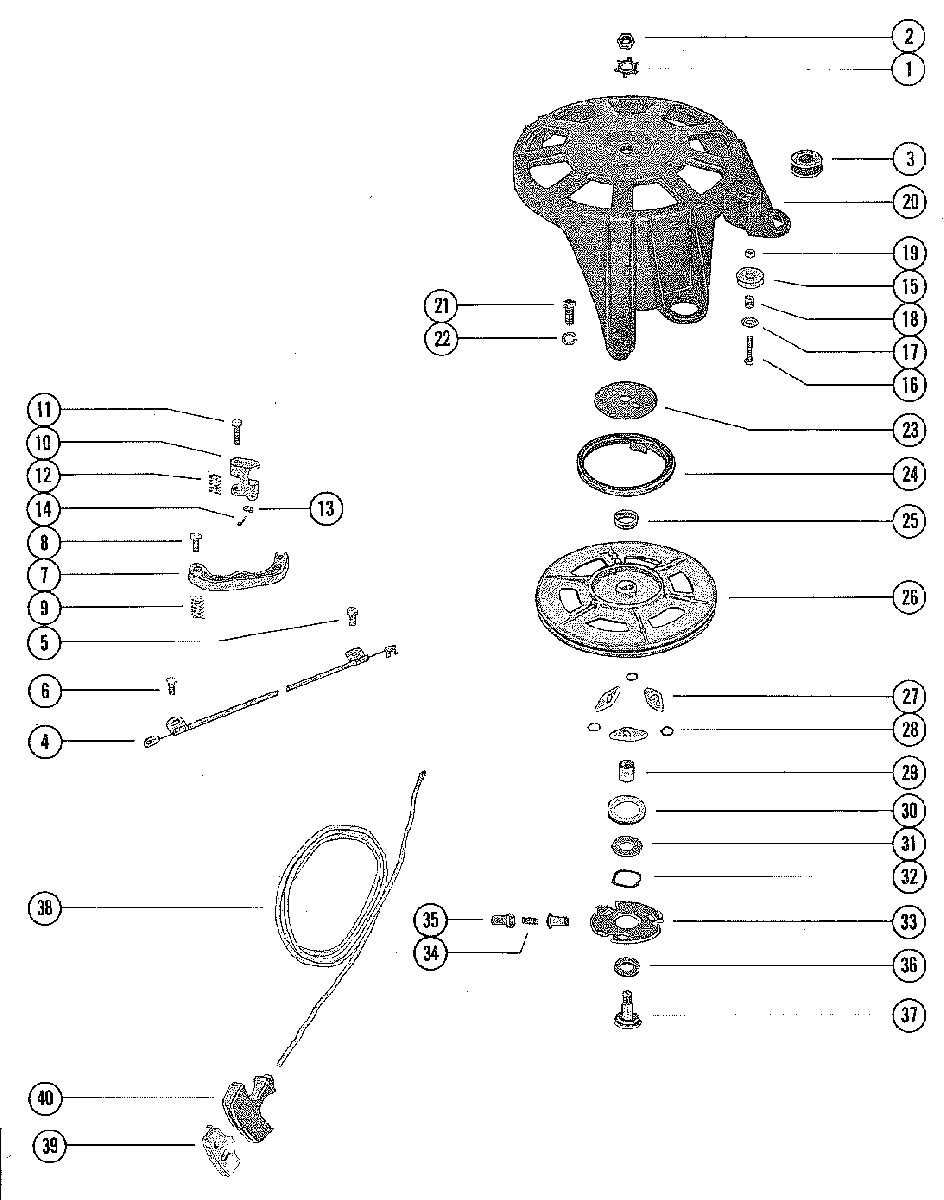

STARTER HOUSING для Mercury - 402, 40 (2 CYL.) 4860103 THRU 5556229
-
№АртикулНазвание
-
114-61004 TAB, WASHER, SHEAVE SHAFT NUTTAB, WASHER, SHEAVE SHAFT NUT
-
211-20166 NUT, SHEAVE SHAFT (LEFT HAND THREAD)NUT, SHEAVE SHAFT (LEFT HAND THREAD)
-
325-39597 GROMMET, STARTER HOUSINGGROMMET, STARTER HOUSING
-
476141 CALBE ASSEMBLY, INTERLOCK
MANUALCALBE ASSEMBLY, INTERLOCK
MANUAL -
510-32228 SCREW, CABLE TO EXHAUST PLATE (5/8")
MANUALSCREW, CABLE TO EXHAUST PLATE (5/8")
MANUAL -
610-69022 SCREW, CABLE TO STARTER HOUSING (1/2")
MANUALSCREW, CABLE TO STARTER HOUSING (1/2")
MANUAL -
7428201 CAM, INTERLOCK
MANUALCAM, INTERLOCK
MANUAL -
810-76138 SCREW, INTERLOCK CAM ATTACHING (1 1/8")
MANUALSCREW, INTERLOCK CAM ATTACHING (1 1/8")
MANUAL -
924-761401 SPRING, INTERLOCK CAM SCREW
MANUALSPRING, INTERLOCK CAM SCREW
MANUAL -
1079371 ACTUATOR, INTERLOCK
MANUALACTUATOR, INTERLOCK
MANUAL -
1110-76137 SCREW, INTERLOCK ACTUATOR ATTACHING (1 5/8")
MANUALSCREW, INTERLOCK ACTUATOR ATTACHING (1 5/8")
MANUAL -
1224-76139 SPRING, INTERLOCK ACTUATOR SCREW
MANUALSPRING, INTERLOCK ACTUATOR SCREW
MANUAL -
1312-30191 WSHER, INTERLOCK CABLE
MANUALWSHER, INTERLOCK CABLE
MANUAL -
1418-26811 COTTER PIN, INTERLOCK CABLE TO ACTUATOR
MANUALCOTTER PIN, INTERLOCK CABLE TO ACTUATOR
MANUAL -
1555860 PULLEY, STARTER SCREWPULLEY, STARTER SCREW
-
1610-45210 SCREW, PULLEY TO STARTER HOUSING (1 1/4")SCREW, PULLEY TO STARTER HOUSING (1 1/4")
-
1712-22887 WASHER, PULLEY SCREWWASHER, PULLEY SCREW
-
1823-309772 SPACER, PULLEY SCREWSPACER, PULLEY SCREW
-
1911-24656 NUT, PULLEY SCREWNUT, PULLEY SCREW
-
2076079A8 HOUSING, STARTERHOUSING, STARTER
-
2110-37562 SCREW, STARTER HOUSING TO CRANKCASE (1")SCREW, STARTER HOUSING TO CRANKCASE (1")
-
2210-37562 LOCKWASHER, STARTER HOUSING SCREWLOCKWASHER, STARTER HOUSING SCREW
-
2361002 RETAINER, STARTER REWINDRETAINER, STARTER REWIND
-
2424-39502T02 SPRING, STARTER REWINDSPRING, STARTER REWIND
-
2523-63100 BUSHING, SPRING GUIDEBUSHING, SPRING GUIDE
-
2676053A1 STARTER SHEAVE ASSEMBLYSTARTER SHEAVE ASSEMBLY
-
2730596 PAWL, STARTERPAWL, STARTER
-
2813-36206 WASHER, WAVE - STARTER PAWLWASHER, WAVE - STARTER PAWL
-
2923-63061 SPACER, SHEAVE SHAFTSPACER, SHEAVE SHAFT
-
3039840 RETAINER, WAVE WASHERRETAINER, WAVE WASHER
-
3112-57837 WASHER, WAVE WASHER RETAINERWASHER, WAVE WASHER RETAINER
-
3212-57837 WASHER, WAVE - RETAINER TENSIONWASHER, WAVE - RETAINER TENSION
-
3366845 PLATE, RETAINER - STARTER PAWLPLATE, RETAINER - STARTER PAWL
-
3424-66853 SPRING, RETAINER TO STARTER SHEAVESPRING, RETAINER TO STARTER SHEAVE
-
3566848 RETAINER, SPRINGRETAINER, SPRING
-
3612-57860 WASHER, SHEAVE SHAFTWASHER, SHEAVE SHAFT
-
3761003 SHAFT, SHEAVESHAFT, SHEAVE
-
3850-12066Q10 STARTER ROPE ASSEMBLYSTARTER ROPE ASSEMBLY
-
3847341A11 STARTER ROPE ASSEMBLY
FOR MANUAL STARTINGSTARTER ROPE ASSEMBLY
FOR MANUAL STARTING -
3979470A1 RETAINER, STARTER ROPE
SERIAL GROUP #1RETAINER, STARTER ROPE
SERIAL GROUP #1 -
4079470A1 HANDLE, STARTER ROPE
SERIAL GROUP #1HANDLE, STARTER ROPE
SERIAL GROUP #1 -
39&4079470A1 RETAINER ASSEMBLY, STARTER ROPE
SERIAL GROUP #2RETAINER ASSEMBLY, STARTER ROPE
SERIAL GROUP #2
