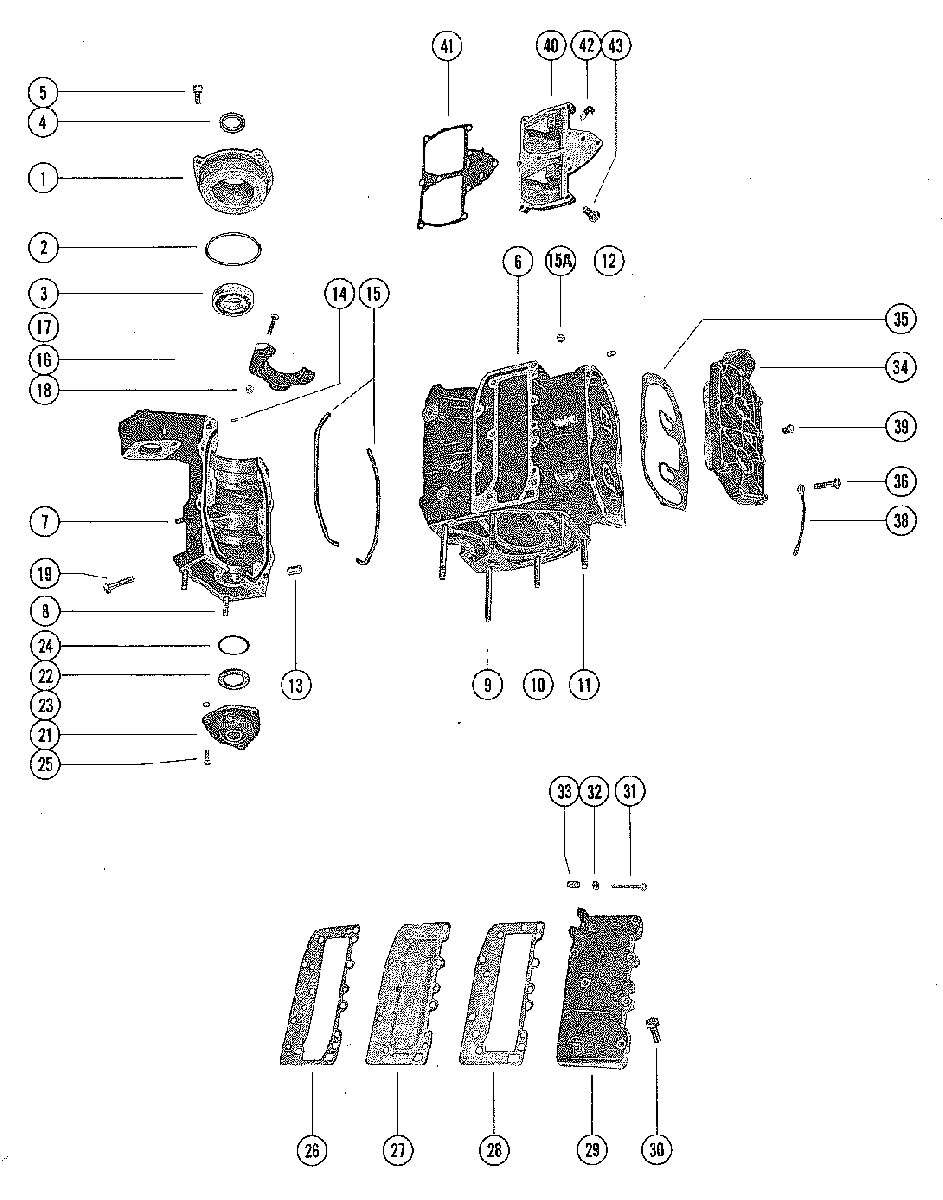

CYLINDER BLOCK AND CRANKCASE ASSEMBLY для Mercury - 402, 40 (2 CYL.) 4860103 THRU 5556229
-
№АртикулНазвание
-
11151-4732A1 END CAP ASSEMBLY, UPPEREND CAP ASSEMBLY, UPPER
-
225-47254 "O" RING, UPPER END CAP"O" RING, UPPER END CAP
-
331-62066T ROLLER BEARING, UPPER END CAPROLLER BEARING, UPPER END CAP
-
426-41953 OIL SEAL, UPPER END CAPOIL SEAL, UPPER END CAP
-
510-30225 SCREW, UPPER END CAP MOUNTING (1")SCREW, UPPER END CAP MOUNTING (1")
-
6851-7940A6 CYLINDER BLOCK AND CRANKCASE ASSEMBLYCYLINDER BLOCK AND CRANKCASE ASSEMBLY
-
716-64936 STUD, CARBURETOR MOUNTING (1 1/4")
(1 1/4")STUD, CARBURETOR MOUNTING (1 1/4")
(1 1/4") -
816-68165 STUD, CRANKCASE TO DRIVE SHAFT HOUSING
(1 5/8")STUD, CRANKCASE TO DRIVE SHAFT HOUSING
(1 5/8") -
916-68168 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING
(3 11/16")STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING
(3 11/16") -
1016-68166 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING
(2 7/64")STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING
(2 7/64") -
1116-68167 STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING
(2 9/16")STUD, CYLINDER BLOCK TO DRIVE SHAFT HOUSING
(2 9/16") -
1266517 RESTRICTOR, CYLINDER BLOCK (BLEED)RESTRICTOR, CYLINDER BLOCK (BLEED)
-
1317-23784 DOWEL PIN, CRANKCASE TO CYLINDER BLOCKDOWEL PIN, CRANKCASE TO CYLINDER BLOCK
-
1417-20323 DOWEL PIN, CYLINDER BLOCK TO MAIN BEARINGDOWEL PIN, CYLINDER BLOCK TO MAIN BEARING
-
1527-55158 GASKET, SEALING - CYLINDER BLOCKGASKET, SEALING - CYLINDER BLOCK
-
15A22-328022 PIPE PLUG, CYLINDER BLOCKPIPE PLUG, CYLINDER BLOCK
-
1662064 BRACKET, STARTER MOTORBRACKET, STARTER MOTOR
-
1710-21339 SCREW, STARTER MOTOR BRACKET TO BLOCK
(1 3/8")SCREW, STARTER MOTOR BRACKET TO BLOCK
(1 3/8") -
1811-29250 NUT, STARTER MOTOR BRACKET SCREWNUT, STARTER MOTOR BRACKET SCREW
-
1910-73657 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/2")
-
1910-63328 SCREW, CRANKCASE TO CYLINDER BLOCK (3")SCREW, CRANKCASE TO CYLINDER BLOCK (3")
-
1910-74824 SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/4")SCREW, CRANKCASE TO CYLINDER BLOCK (1 1/4")
-
211152-7267A1 END CAP ASSEMBLY, LOWEREND CAP ASSEMBLY, LOWER
-
2226-41953 OIL SEAL, LOWER END CAPOIL SEAL, LOWER END CAP
-
2325-64068 "O" RING, LOWER END CAP SCREW"O" RING, LOWER END CAP SCREW
-
2425-823683 "O" RING, LOWER END CAP"O" RING, LOWER END CAP
-
2510-63365 SCREW
LOWER END CAP TO CYLINDER BLOCK AND CRANKCASE (1 1/2")SCREW
LOWER END CAP TO CYLINDER BLOCK AND CRANKCASE (1 1/2") -
2627-854891 GASKET, CYLINDER BLOCK TO BAFFLE PLATEGASKET, CYLINDER BLOCK TO BAFFLE PLATE
-
2755190 PLATE, DIVIDER - EXHAUST MANIFOLDPLATE, DIVIDER - EXHAUST MANIFOLD
-
2827-854882 GASKET, BAFFLE PLATE TO EXHAUST COVERGASKET, BAFFLE PLATE TO EXHAUST COVER
-
29551572 COVER, EXHAUST MANIFOLDCOVER, EXHAUST MANIFOLD
-
3010-60411 SCREW, MANIFOLD COVER TO CYLINDER BLOCK
(1 1/4")SCREW, MANIFOLD COVER TO CYLINDER BLOCK
(1 1/4") -
3010-31984 SCREW, MANIFOLD COVER TO CYLINDER BLOCK
(1 3/8")SCREW, MANIFOLD COVER TO CYLINDER BLOCK
(1 3/8") -
3110-64021 SCREW, ADJUSTING - EXHAUST COVER (1 7/8")SCREW, ADJUSTING - EXHAUST COVER (1 7/8")
-
3211-64015 NUT, ADJUSTING SCREWNUT, ADJUSTING SCREW
-
3326852 CAP, NYLON - ADJUSTING SCREWCAP, NYLON - ADJUSTING SCREW
-
341024-91101 COVER, CYLINDER BLOCKCOVER, CYLINDER BLOCK
-
3527-85490 GASKET, CYLINDER BLOCK COVERGASKET, CYLINDER BLOCK COVER
-
3610-76213 SCREW, CYLINDER BLOCK COVER MOUNTING
(1 1/8")SCREW, CYLINDER BLOCK COVER MOUNTING
(1 1/8") -
3846933A3 GROUND STRAP, POWERHEAD TO
BOTTOM COWLGROUND STRAP, POWERHEAD TO
BOTTOM COWL -
3922-328022 PLUG, PIPE - CYLINDER BLOCK COVERPLUG, PIPE - CYLINDER BLOCK COVER
-
4063970 COVER, TRANSFER PORTCOVER, TRANSFER PORT
-
4127-552791 GASKET, TRANSFER PORT COVERGASKET, TRANSFER PORT COVER
-
4254-54457 "J" CLIP, COIL HARNESS"J" CLIP, COIL HARNESS
-
4310-76630 SCREW, TRANSFER PORT COVER MOUNTING (1")SCREW, TRANSFER PORT COVER MOUNTING (1")
