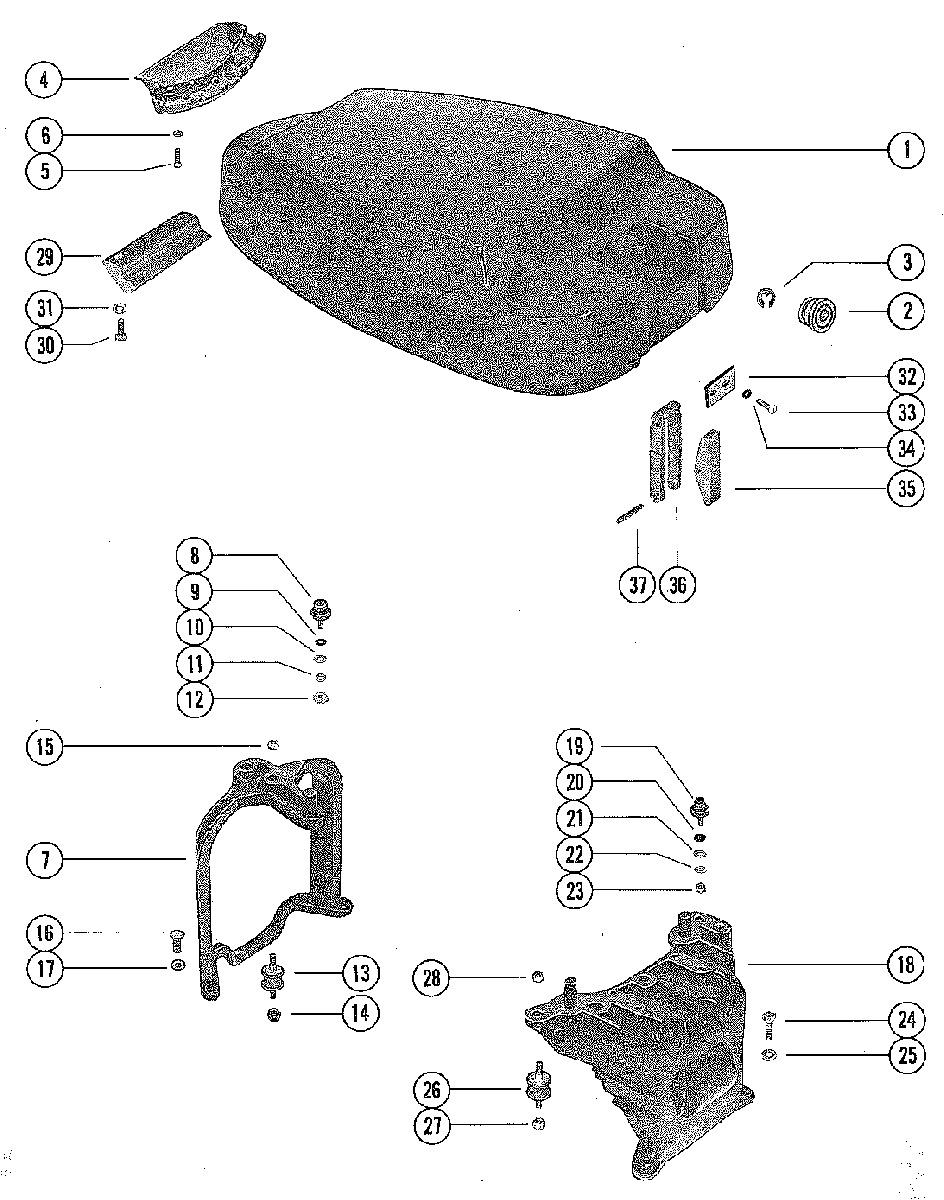

TOP COWL ASSEMBLY для Mercury - 402, 40 (2 CYL.) 4860103 THRU 5556229
-
№АртикулНазвание
-
12138-6341 TOP COWL ASSEMBLY (ELECTRIC)TOP COWL ASSEMBLY (ELECTRIC)
-
12138-6340A2 TOP COWL ASSEMBLY (MANUAL)TOP COWL ASSEMBLY (MANUAL)
-
277859A1 INSERT, ROPE GUIDE
SERIAL GROUP #1INSERT, ROPE GUIDE
SERIAL GROUP #1 -
353-72168 RING, RETAINING - INSERT
SERIAL GROUP #1RING, RETAINING - INSERT
SERIAL GROUP #1 -
277859 GUIDE, STARTER ROPE
SERIAL GROUP #2GUIDE, STARTER ROPE
SERIAL GROUP #2 -
377860 RING, RETAINING - GUIDE
SERAIL GROUP #2RING, RETAINING - GUIDE
SERAIL GROUP #2 -
462236 SHEILD, REAR - TOP COWLSHEILD, REAR - TOP COWL
-
510-38055 SCREW, REAR SHIEL TO TOP COWL (5/8")SCREW, REAR SHIEL TO TOP COWL (5/8")
-
612-26014 WASHER, REAR SHIELD SCREWWASHER, REAR SHIELD SCREW
-
776132 BRACKET, SUPPORT - TOP COWL (REAR)BRACKET, SUPPORT - TOP COWL (REAR)
-
860577 MOUNT, RUBBER - REAR SUPPORT BRACKETMOUNT, RUBBER - REAR SUPPORT BRACKET
-
912-26014 WASHER, RUBBER MOUNTWASHER, RUBBER MOUNT
-
1012-69056 WASHER, RUBBER MOUNTWASHER, RUBBER MOUNT
-
1113-26992 LOCKWASHER, RUBBER MOUNTLOCKWASHER, RUBBER MOUNT
-
1211-36069 NUT, RUBBER MOUNTNUT, RUBBER MOUNT
-
1390435 MOUNT, RUBBER - REAR SUPPORT BRACKETMOUNT, RUBBER - REAR SUPPORT BRACKET
-
1411-36069 NUT, RUBBER MOUNT TO CYLINDER BLOCK COVER
LOWERNUT, RUBBER MOUNT TO CYLINDER BLOCK COVER
LOWER -
1511-36069 NUT, RUBBER MOUNT TO REAR SUPPORT BRACKET
UPPERNUT, RUBBER MOUNT TO REAR SUPPORT BRACKET
UPPER -
1610-37562 SCREW,REAR SUPPORT BRACKET TO BOTTOM COWL
(1")SCREW,REAR SUPPORT BRACKET TO BOTTOM COWL
(1") -
1713-26993 LOCKWASHER, REAR SUPPORT BRACKET SCREWLOCKWASHER, REAR SUPPORT BRACKET SCREW
-
1895967T BRACKET, SUPPORT - TOP COWL (FRONT)BRACKET, SUPPORT - TOP COWL (FRONT)
-
1931014 MOUNT, RUBBER - FRONT SUPPORT BRACKETMOUNT, RUBBER - FRONT SUPPORT BRACKET
-
2012-26014 WASHER, RUBBER MOUNTWASHER, RUBBER MOUNT
-
2112-69056 WASHER, RUBBER MOUNTWASHER, RUBBER MOUNT
-
2213-26992 LOCKWASHER, RUBBER MOUNTLOCKWASHER, RUBBER MOUNT
-
2311-36069 NUT, RUBBER MOUNTNUT, RUBBER MOUNT
-
2410-37562 SCREW
FRONT SUPPORT BRACKET TO BOTTOM COWL (1")SCREW
FRONT SUPPORT BRACKET TO BOTTOM COWL (1") -
2513-26993 LOCKWASHER, FRONT SUPPORT BRACKET SCREWLOCKWASHER, FRONT SUPPORT BRACKET SCREW
-
2690435 MOUNT, RUBBER - FRONT SUPPORT BRACKETMOUNT, RUBBER - FRONT SUPPORT BRACKET
-
2711-36069 NUT, RUBBER MOUNT TO CRANKCASE (LOWER)NUT, RUBBER MOUNT TO CRANKCASE (LOWER)
-
2811-36069 NUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET
UPPERNUT, RUBBER MOUNT TO FRONT SUPPORT BRACKET
UPPER -
2955455 HOOK, TOP COWL LATCH - REARHOOK, TOP COWL LATCH - REAR
-
3010-22956 SCREW, REAR HOOK TO TOP COWL (7/8")SCREW, REAR HOOK TO TOP COWL (7/8")
-
3113-26992 LOCKWASHER, REAR HOOK SCREWLOCKWASHER, REAR HOOK SCREW
-
3275973 PLATE, HINGEPLATE, HINGE
-
3310-32228 SCREW, HINGE PLATE (5/8")SCREW, HINGE PLATE (5/8")
-
3413-26996 LOCKWASHER, HINGE PLATE SCREWLOCKWASHER, HINGE PLATE SCREW
-
3594918F1 LEVER, COWL LATCHLEVER, COWL LATCH
-
3652739 HINGE, COWL LATCH LEVERHINGE, COWL LATCH LEVER
-
3717-58998 ROLL PIN, HINGE TO LEVERROLL PIN, HINGE TO LEVER
