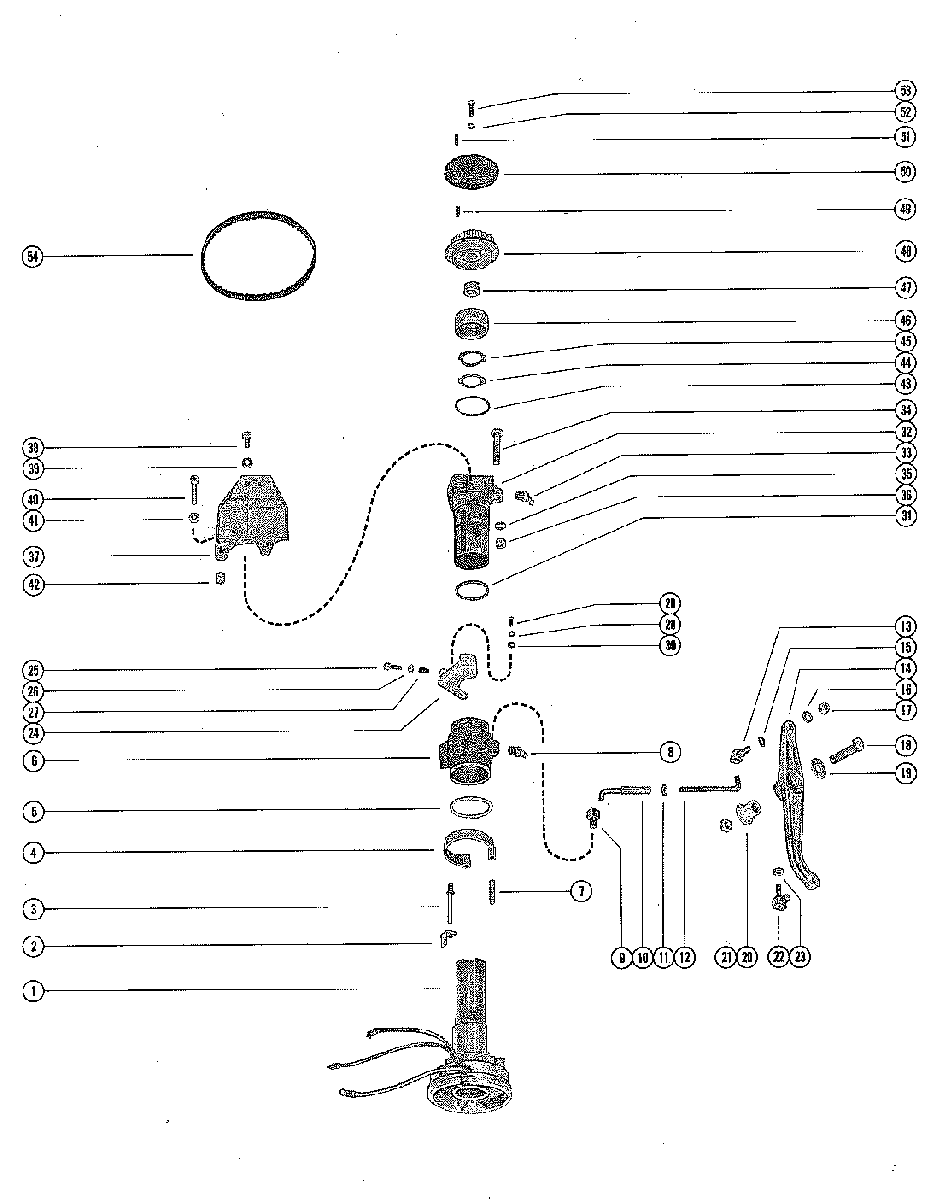

DISTRIBUTOR ADAPTOR AND VERTICAL LINKAGE для Mercury - 650 (4 CYL.) 2803562 THRU 3293183
-
№АртикулНазвание
-
1393-3736A79 HOUSING ASSEMBLY, DISTRIBUTORHOUSING ASSEMBLY, DISTRIBUTOR
-
232197 STOP, SPARK ADVANCE - DISTRIBUTOR HOUSINGSTOP, SPARK ADVANCE - DISTRIBUTOR HOUSING
-
317-27962 PIN, ANCHOR SPRING - DISTRIBUTOR HOUSINGPIN, ANCHOR SPRING - DISTRIBUTOR HOUSING
-
424-27944 SPRING, HORSESHOE - DISTRIBUTOR HOUSINGSPRING, HORSESHOE - DISTRIBUTOR HOUSING
-
512-53540 WASHER, ECONOMIZER COLLAR - DISTRIBUTOR HOUSINGWASHER, ECONOMIZER COLLAR - DISTRIBUTOR HOUSING
-
655804A1 ECONOMIZER COLLAR ASSEMBLYECONOMIZER COLLAR ASSEMBLY
-
717-27961 PIN, ECONOMIZER COLLAR - SPRING RETAINERPIN, ECONOMIZER COLLAR - SPRING RETAINER
-
822-25094 FITTING, GREASE - ECONOMIZER COLLARFITTING, GREASE - ECONOMIZER COLLAR
-
927947 SWIVEL, LINKAGE - ECONOMIZER COLLARSWIVEL, LINKAGE - ECONOMIZER COLLAR
-
1025996A1 SWIVEL AND LINK ROD ASSEMBLYSWIVEL AND LINK ROD ASSEMBLY
-
1111-25168 NUT, UPPER LINK ROD ADJUSTINGNUT, UPPER LINK ROD ADJUSTING
-
1237588 ROD, LINK - UPPERROD, LINK - UPPER
-
1327948 SWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVERSWIVEL, UPPER LINK ROD TO THROTTLE CONTROL LEVER
-
1448562 LEVER, THROTTLE CONTROLLEVER, THROTTLE CONTROL
-
1513-25806 WASHER, WAVE - THROTTLE CONTROL LEVERWASHER, WAVE - THROTTLE CONTROL LEVER
-
1612-29245 WASHER, THROTTLE CONTROL LEVER SWIVELWASHER, THROTTLE CONTROL LEVER SWIVEL
-
1711-8267089 NUT, UPPER LINK ROD TO THROTTLE CONTROL LEVERNUT, UPPER LINK ROD TO THROTTLE CONTROL LEVER
-
1810-31830 SCREW, THROTTLE LEVER TO EXHAUST COVER (1 3/4")SCREW, THROTTLE LEVER TO EXHAUST COVER (1 3/4")
-
1912-8M0042641 WASHER, THROTTLE CONTROL LEVER SCREWWASHER, THROTTLE CONTROL LEVER SCREW
-
2023-45818 BUSHING, THROTTLE CONTROL LEVER SCREWBUSHING, THROTTLE CONTROL LEVER SCREW
-
2237587 SWIVEL, LOWER - THROTTLE CONTROL LEVER TO THROTTLE CABLESWIVEL, LOWER - THROTTLE CONTROL LEVER TO THROTTLE CABLE
-
2311-8267089 NUT, THROTTLE CABLE TO LOWER SWIVELNUT, THROTTLE CABLE TO LOWER SWIVEL
-
2448306 PLATE, THROTTLE ACTUATORPLATE, THROTTLE ACTUATOR
-
2510-23702 SCREW, ADJUSTING - THROTTLE ACTUATORSCREW, ADJUSTING - THROTTLE ACTUATOR
-
2611-68219 NUT, THROTTLE ACTUATOR ADJUSTING SCREWNUT, THROTTLE ACTUATOR ADJUSTING SCREW
-
2748039 CAP, NYLON - THROTTLE ACTUATOR ADJUSTING SCREWCAP, NYLON - THROTTLE ACTUATOR ADJUSTING SCREW
-
2810-32228 SCREW, THROTTLE ACTUATOR PLATE TO ECONOMIZER COLLAR (5/8")SCREW, THROTTLE ACTUATOR PLATE TO ECONOMIZER COLLAR (5/8")
-
2912-847883 WASHER, THROTTLE ACTUATOR PLATE FASTENING SCREWWASHER, THROTTLE ACTUATOR PLATE FASTENING SCREW
-
3013-26996 LOCKWASHER, THROTTLE ACTUATOR PLATE FASTENING SCREWLOCKWASHER, THROTTLE ACTUATOR PLATE FASTENING SCREW
-
3112-46246 WASHER, ADAPTOR - DISTRIBUTOR HOUSINGWASHER, ADAPTOR - DISTRIBUTOR HOUSING
-
3266165A2 ADAPTOR ASSEMBLY, DISTRIBUTORADAPTOR ASSEMBLY, DISTRIBUTOR
-
3322-25094 FITTING, GREASE - DISTRIBUTOR ADAPTORFITTING, GREASE - DISTRIBUTOR ADAPTOR
-
3410-78841 SCREW, DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2")SCREW, DISTRIBUTOR HOUSING TO CRANKCASE (1 1/2")
-
3512-20084 WASHER, DISTRIBUTOR HOUSING SCREWWASHER, DISTRIBUTOR HOUSING SCREW
-
3611-22053 NUT, DISTRIBUTOR HOUSING SCREWNUT, DISTRIBUTOR HOUSING SCREW
-
3755805 BRACKET, STOPBRACKET, STOP
-
3810-28636 SCREW, STOP BRACKET TO DISTRIBUTOR ADAPTOR (3/4")SCREW, STOP BRACKET TO DISTRIBUTOR ADAPTOR (3/4")
-
3912-20533 WASHER, STOP BRACKET FASTENING SCREWWASHER, STOP BRACKET FASTENING SCREW
-
4010-24228 SCREW, STOP BRACKET ADJUSTING (1 7/8")SCREW, STOP BRACKET ADJUSTING (1 7/8")
-
4111-20890 NUT, STOP BRACKET ADJUSTING SCREWSNUT, STOP BRACKET ADJUSTING SCREWS
-
4252023 CAP, NYLON - STOP BRACKET ADJUSTING SCREWSCAP, NYLON - STOP BRACKET ADJUSTING SCREWS
-
4312-27939 WASHER, DISTRIBUTOR HOUSINGWASHER, DISTRIBUTOR HOUSING
-
4414-27960 TAB WASHER, ADAPTOR CAP FASTENINGTAB WASHER, ADAPTOR CAP FASTENING
-
4513-27959 WASHER, WAVE - DISTRIBUTOR BALL BEARING TENSIONWASHER, WAVE - DISTRIBUTOR BALL BEARING TENSION
-
4654567 CAP, DISTRIBUTOR HOUSINGCAP, DISTRIBUTOR HOUSING
-
4723-57185 SPACER, DRIVE PULLEYSPACER, DRIVE PULLEY
-
4829906A1 DRIVEN PULLEY ASSEMBLYDRIVEN PULLEY ASSEMBLY
-
4917-29908 PIN, ROLL - FLANGE LOCATINGPIN, ROLL - FLANGE LOCATING
-
5029907 FLANGE, DRIVEN PULLEYFLANGE, DRIVEN PULLEY
-
5128-29910 KEY, DISTRIBUTOR DRIVERKEY, DISTRIBUTOR DRIVER
-
5212-38832 WASHER, PULLY CLAMPING SCREW
SERIAL #2803562-#2874263WASHER, PULLY CLAMPING SCREW
SERIAL #2803562-#2874263 -
5310-64652 SCREW, PULLEY CLAMPING
SERIAL #2803562-#2874263SCREW, PULLEY CLAMPING
SERIAL #2803562-#2874263 -
5310-68554 SCREW, PULLING CLAMPING
SERIAL #2997339-09999999SCREW, PULLING CLAMPING
SERIAL #2997339-09999999 -
5420140 BELT, TIMINGBELT, TIMING
