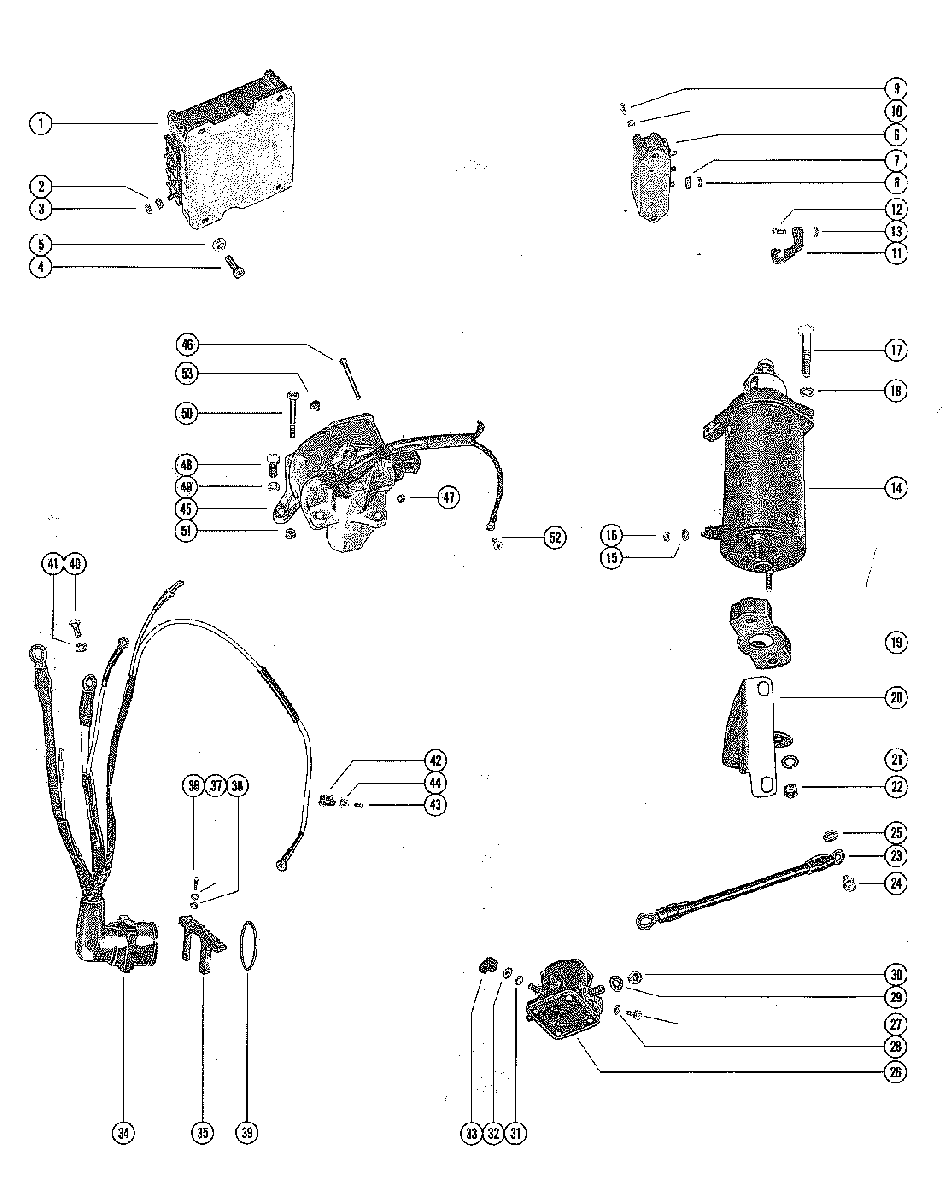

STARTER MOTOR, STARTER SOLENOID, RECTIFIER AND WIRING HARNES для Mercury - 650 (4 CYL.) 2803562 THRU 3293183
-
№АртикулНазвание
-
1332-2986A27 SWITCH BOX ASSEMBLY, COMPLETESWITCH BOX ASSEMBLY, COMPLETE
-
212-45075 WASHER, SWITCH BOX TERMINALWASHER, SWITCH BOX TERMINAL
-
311-45076 NUT, SWITCH BOX TERMINALNUT, SWITCH BOX TERMINAL
-
410-69028 SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (3/4")SCREW, SWITCH BOX TO FRONT SUPPORT BRACKET (3/4")
-
511-20184 NUT, SWITCH BOX TO FRONT SUPPORT BRACKET SCREWNUT, SWITCH BOX TO FRONT SUPPORT BRACKET SCREW
-
678614A1 RECTIFIER ASSEMBLY, COMPLETERECTIFIER ASSEMBLY, COMPLETE
-
712-45075 WASHER, RECTIFIER TERMINALWASHER, RECTIFIER TERMINAL
-
811-45076 NUT, RECTIFIER TERMINALNUT, RECTIFIER TERMINAL
-
910-76621 SCREW, RECTIFIER TO BOTTOM COWL (7/8")SCREW, RECTIFIER TO BOTTOM COWL (7/8")
-
1013-22773 LOCKWASHER, RECTIFIER MOUNTING SCREWLOCKWASHER, RECTIFIER MOUNTING SCREW
-
1159757 BRACKET, RETAINER - HIGH TENSION LEADBRACKET, RETAINER - HIGH TENSION LEAD
-
1210-22956 SCREW, RETAINER BRACKET TO FRONT SUPPORT BRACKET (7/8")SCREW, RETAINER BRACKET TO FRONT SUPPORT BRACKET (7/8")
-
1311-20184 NUT, RETAINER BRACKET SCREWNUT, RETAINER BRACKET SCREW
-
1450-45822A1 STARTER MOTOR ASSEMBLY
SERIAL #2803562-#2803821STARTER MOTOR ASSEMBLY
SERIAL #2803562-#2803821 -
1450-58788A3 STARTER MOTOR ASSEMBLY
SERIAL #2803822-#2997338STARTER MOTOR ASSEMBLY
SERIAL #2803822-#2997338 -
1450-58788A3 STARTER MOTOR ASSEMBLY
SERIAL #2997339-09999999STARTER MOTOR ASSEMBLY
SERIAL #2997339-09999999 -
1513-26992 LOCKWASHER, STARTER MOTOR TERMINALLOCKWASHER, STARTER MOTOR TERMINAL
-
1611-20890 NUT, STARTER MOTOR TERMINALNUT, STARTER MOTOR TERMINAL
-
1710-22698 SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1 3/4")SCREW, STARTER MOTOR TO CRANKCASE FLANGE (1 3/4")
-
1813-26993 LOCKWASHER, STARTER MOTOR SCREWLOCKWASHER, STARTER MOTOR SCREW
-
1937331 PLATE, SPACER - STARTER MOTOR TO BRACKETPLATE, SPACER - STARTER MOTOR TO BRACKET
-
2038747 BRACKET, SUPPORT - STARTER MOTORBRACKET, SUPPORT - STARTER MOTOR
-
2113-24669 LOCKWASHER, THRU BOLT - BRACKET TO STARTER MOTORLOCKWASHER, THRU BOLT - BRACKET TO STARTER MOTOR
-
2211-20088 NUT, THRU BOLT - BRACKET TO STARTER MOTORNUT, THRU BOLT - BRACKET TO STARTER MOTOR
-
2349731 WIRE, STARTER MOTOR TO STARTER SOLENOIDWIRE, STARTER MOTOR TO STARTER SOLENOID
-
2326511 WIRE, STARTER MOTOR TO TOP MOUNTWIRE, STARTER MOTOR TO TOP MOUNT
-
2410-69035 SCREW, GROUND WIRE TO STARTER MOTORSCREW, GROUND WIRE TO STARTER MOTOR
-
2513-26992 LOCKWASHER, GROUND WIRE FASTENING SCREWLOCKWASHER, GROUND WIRE FASTENING SCREW
-
2625661T1 STARTER SOLENOIDSTARTER SOLENOID
-
2710-69028 SCREW, STARTER SOLENOID TO COIL BRACKETSCREW, STARTER SOLENOID TO COIL BRACKET
-
2813-26992 LOCKWASHER, STARTER SOLENOID MOUNTING SCREWLOCKWASHER, STARTER SOLENOID MOUNTING SCREW
-
2913-26993 LOCKWASHER, SOLENOID TERMINAL (5/16")LOCKWASHER, SOLENOID TERMINAL (5/16")
-
3011-22053 NUT, SOLENOID TERMINAL - INSIDE (5/16")NUT, SOLENOID TERMINAL - INSIDE (5/16")
-
3113-26996 LOCKWASHER, SOLENOID TERMINAL (#10)LOCKWASHER, SOLENOID TERMINAL (#10)
-
3211-68219 NUT, SOLENOID TERMINAL (#10)NUT, SOLENOID TERMINAL (#10)
-
3346265 BOOT, STARTER SOLENOID TERMINALBOOT, STARTER SOLENOID TERMINAL
-
3452771A2 WIRINIG HARNESS (INTERNAL)WIRINIG HARNESS (INTERNAL)
-
3554-76368 CLAMP, WIRING HARNESS TO BOTTOM COWLCLAMP, WIRING HARNESS TO BOTTOM COWL
-
3610-45862 SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")SCREW, WIRING HARNESS CLAMP TO BOTTOM COWL (7/8")
-
3713-26996 LOCKWASHER, WIRING HARNESS CLAMP SCREWLOCKWASHER, WIRING HARNESS CLAMP SCREW
-
3812-847883 WASHER, WIRING HARNESS CLAMP SCREWWASHER, WIRING HARNESS CLAMP SCREW
-
3924-28975 SPRING, GARTER - INTERNAL WIRING HARNESSSPRING, GARTER - INTERNAL WIRING HARNESS
-
4010-98256 SCREW, WIRING HARNESS LEAD TO BOTTOM COWL (1/2")SCREW, WIRING HARNESS LEAD TO BOTTOM COWL (1/2")
-
4113-24669 LOCKWASHER, WIRING HARNESS LEAD SCREWLOCKWASHER, WIRING HARNESS LEAD SCREW
-
4254-26550 CLIP, WIRING HARNESS LEADCLIP, WIRING HARNESS LEAD
-
4310-69079 SCREW, WIRING HARNESS LEAD CLIP ATTACHING (7/16")SCREW, WIRING HARNESS LEAD CLIP ATTACHING (7/16")
-
448M0084613 "D" WASHER, WIRING HARNESS LEAD CLIP ATTACHING SCREW"D" WASHER, WIRING HARNESS LEAD CLIP ATTACHING SCREW
-
45332-4895A5 IGNITION COIL ASSEMBLY, COMPLETEIGNITION COIL ASSEMBLY, COMPLETE
-
4610-46368 SCREW, IGNITION COIL CLAMPING (2 1/4")SCREW, IGNITION COIL CLAMPING (2 1/4")
-
4711-8267086 NUT, IGNITION COIL CLAMPING SCREWNUT, IGNITION COIL CLAMPING SCREW
-
4810-69026 SCREW, IGNITION COIL TO BOTTOM COWL (7/8")SCREW, IGNITION COIL TO BOTTOM COWL (7/8")
-
4913-26992 LOCKWASHER, IGNITION COIL SCREWLOCKWASHER, IGNITION COIL SCREW
-
5010-37561 SCREW, IGNITION COIL TO BOTTOM COWL (2 1/2")SCREW, IGNITION COIL TO BOTTOM COWL (2 1/2")
-
5111-20184 NUT, IGNITION COIL SCREWNUT, IGNITION COIL SCREW
-
5210-45218 SCREW, IGNITION COIL WIRE TO SWITCH BOX (3/8")SCREW, IGNITION COIL WIRE TO SWITCH BOX (3/8")
-
53269011 BUMPER, IGNITION COILBUMPER, IGNITION COIL
