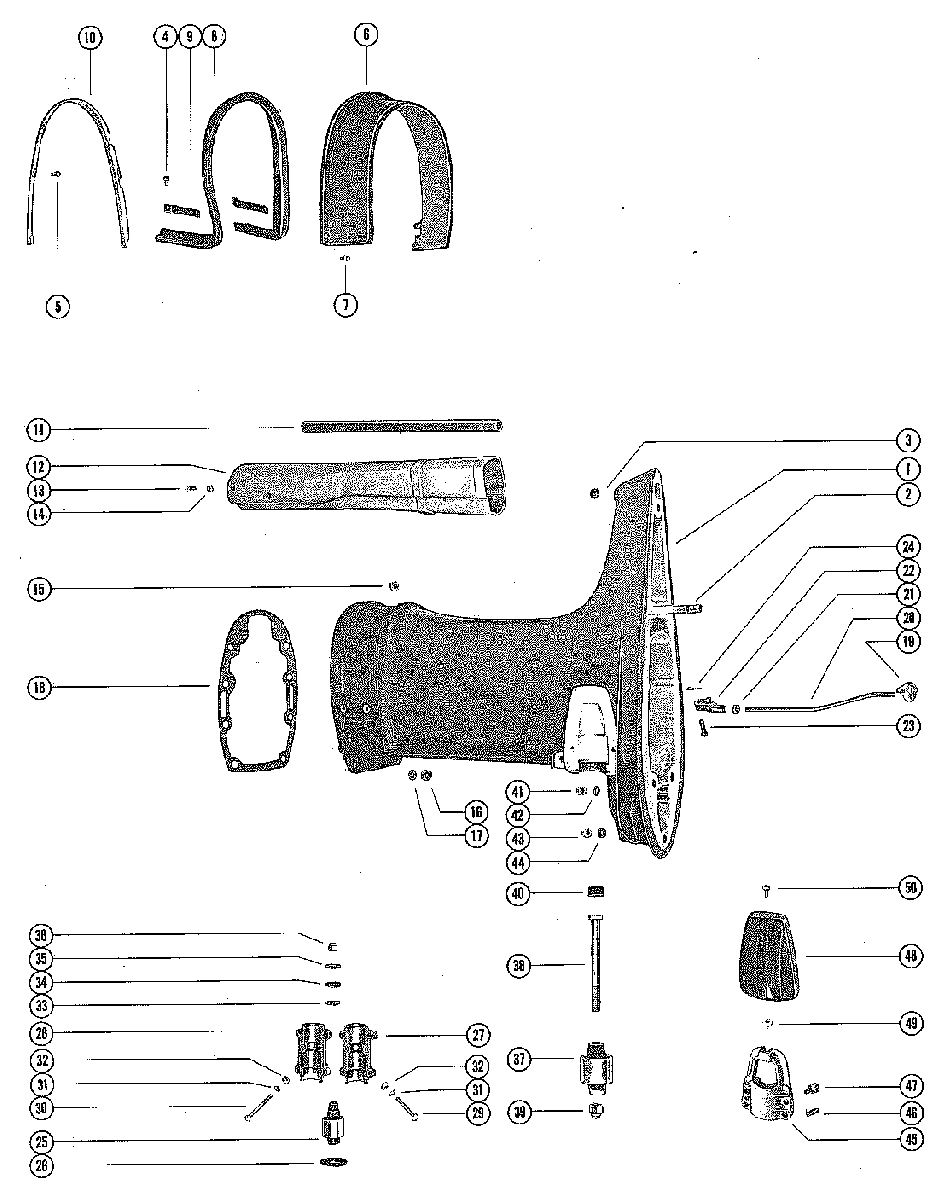

DRIVE SHAFT HOUSING ASSEMBLY для Mercury - 650 (4 CYL.) 2803562 THRU 3293183
-
№АртикулНазвание
-
11552-3911A3 DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (SHORT SHAFT)
-
11551-3918A3 DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)DRIVE SHAFT HOUSING ASSEMBLY (LONG SHAFT)
-
216-56295 STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2 11/16")STUD, DRIVE SHAFT HOUSING TO GEAR HOUSING (2 11/16")
-
319-824928001 PLUG, PLASTIC - TRIM TAB SCREW HOLEPLUG, PLASTIC - TRIM TAB SCREW HOLE
-
410-48409 SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (5/8")SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (5/8")
-
510-48408 SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (1/2")SCREW, RETAINING STRIP TO DRIVE SHAFT HOUSING (1/2")
-
637417 COVER, TRIM - DRIVE SHAFT HOUSINGCOVER, TRIM - DRIVE SHAFT HOUSING
-
710-37571 SCREW, TRIM COVER TO BOTTOM COWL (1/2")
SERIAL #2803562-02869698SCREW, TRIM COVER TO BOTTOM COWL (1/2")
SERIAL #2803562-02869698 -
710-57807 SCREW, TRIM COVER TO BOTTOM COWL (3/4")
SERIAL #2869699-09999999SCREW, TRIM COVER TO BOTTOM COWL (3/4")
SERIAL #2869699-09999999 -
-25-8M0079730 GROMMET, PLASTIC - TRIM COVER SCREW
SERIAL #2869699-09999999GROMMET, PLASTIC - TRIM COVER SCREW
SERIAL #2869699-09999999 -
837919 SEAL, TRIM COVER TO DRIVE SHAFT HOUSINGSEAL, TRIM COVER TO DRIVE SHAFT HOUSING
-
937665 STRIP, RETAINING - TRIM COVER SEAL (SIDE)STRIP, RETAINING - TRIM COVER SEAL (SIDE)
-
1038052 STRIP, RETAINING - TRIM COVER SEAL (REAR)STRIP, RETAINING - TRIM COVER SEAL (REAR)
-
1132-37446 TUBE, WATER INLET (SHORT SHAFT)TUBE, WATER INLET (SHORT SHAFT)
-
1132-37438 TUBE, WATER INLET (LONG SHAFT)TUBE, WATER INLET (LONG SHAFT)
-
1238469 TUBE, EXHAUST (SHORT SHAFT)TUBE, EXHAUST (SHORT SHAFT)
-
1238470 TUBE, EXHAUST (LONG SHAFT)TUBE, EXHAUST (LONG SHAFT)
-
1310-38601 SCREW, EXHAUST TUBE TO EXHAUST EXTENSION PLATE (5/8")SCREW, EXHAUST TUBE TO EXHAUST EXTENSION PLATE (5/8")
-
1411-35888 NUT, EXHAUST TUBE SCREWNUT, EXHAUST TUBE SCREW
-
1511-23161 NUT, POWERHEAD STUDSNUT, POWERHEAD STUDS
-
1611-8M0042636 NUT, POWERHEAD STUDSNUT, POWERHEAD STUDS
-
1712-20086 WASHER, POWERHEAD STUDSWASHER, POWERHEAD STUDS
-
1827-48801 GASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSINGGASKET, EXHAUST EXTENSION PLATE TO DRIVE SHAFT HOUSING
-
1952887 GUIDE, PUSH ROD - REVERSE LOCKINGGUIDE, PUSH ROD - REVERSE LOCKING
-
2047591 ROD, PUSH - REVERSE LOCK (SHORT SHAFT)ROD, PUSH - REVERSE LOCK (SHORT SHAFT)
-
2047558 ROD, PUSH - REVERSE LOCK (LONG SHAFT)ROD, PUSH - REVERSE LOCK (LONG SHAFT)
-
2111-69254 NUT, JAM - PUSH RODNUT, JAM - PUSH ROD
-
2247559 YOKE, PUSH RODYOKE, PUSH ROD
-
2324-78203A2 PIN, PUSH ROD TO REVERSE LOCKPIN, PUSH ROD TO REVERSE LOCK
-
2418-25191 COTTER PIM, PUSH ROD PINCOTTER PIM, PUSH ROD PIN
-
2537396 MOUNT, RUBBER - UPPERMOUNT, RUBBER - UPPER
-
2626218 COVER, UPPER MOUNT - OUTSIDE HALFCOVER, UPPER MOUNT - OUTSIDE HALF
-
2726217 COVER, UPPER MOUNT - INSIDE HALF
SERIAL #2803562-02869698COVER, UPPER MOUNT - INSIDE HALF
SERIAL #2803562-02869698 -
2757931 COVER, UPPER MOUNT - INSIDE HALF
SERIAL #2869699-09999999COVER, UPPER MOUNT - INSIDE HALF
SERIAL #2869699-09999999 -
2824929 PACKING, "U" CUPPACKING, "U" CUP
-
2910-20012 SCREW, UPPER MOUNT COVER (1 5/8")SCREW, UPPER MOUNT COVER (1 5/8")
-
3010-28775 SCREW, UPPER MOUNT COVER (2 1/8")SCREW, UPPER MOUNT COVER (2 1/8")
-
3112-29245 WASHER, UPPER MOUNT COVER SCREWWASHER, UPPER MOUNT COVER SCREW
-
3211-35888 NUT, UPPER MOUNT COVER SCREWNUT, UPPER MOUNT COVER SCREW
-
3312-30515 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
3412-47894 WASHER, RUBBER - UPPER MOUNT BOLTWASHER, RUBBER - UPPER MOUNT BOLT
-
3512-30514 WASHER, UPPER MOUNT BOLTWASHER, UPPER MOUNT BOLT
-
3611-34933 NUT, UPPER MOUNT BOLTNUT, UPPER MOUNT BOLT
-
3737397 MOUNT, RUBBER - LOWERMOUNT, RUBBER - LOWER
-
3810-75284 SCREW, UPPER MOUNT (5 1/2")SCREW, UPPER MOUNT (5 1/2")
-
3911-25096 NUT, MOUNT SCREWNUT, MOUNT SCREW
-
4025067 BUMPER, RUBBER - MOUNTING SCREWBUMPER, RUBBER - MOUNTING SCREW
-
4111-34933 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
-
4212-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
4311-29489 NUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING AND DRIVE SHAFT HOUSING STUDS
-
4412-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
4535608 CLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSINGCLAMP, LOWER MOUNT TO DRIVE SHAFT HOUSING
-
4624-35522 SPRING, TENSION - LOWER MOUNT CLAMPSPRING, TENSION - LOWER MOUNT CLAMP
-
4710-29256 SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING (7/8")SCREW, LOWER MOUNT CLAMP TO DRIVE SHAFT HOUSING (7/8")
-
4835474T COVER, LOWER MOUNT CLAMPCOVER, LOWER MOUNT CLAMP
-
4911-35521 NUT, LOWER MOUTN CLAMP COVERNUT, LOWER MOUTN CLAMP COVER
-
5010-29722 SCREW COVER TO LOWER CLAMP MOUNTSCREW COVER TO LOWER CLAMP MOUNT
