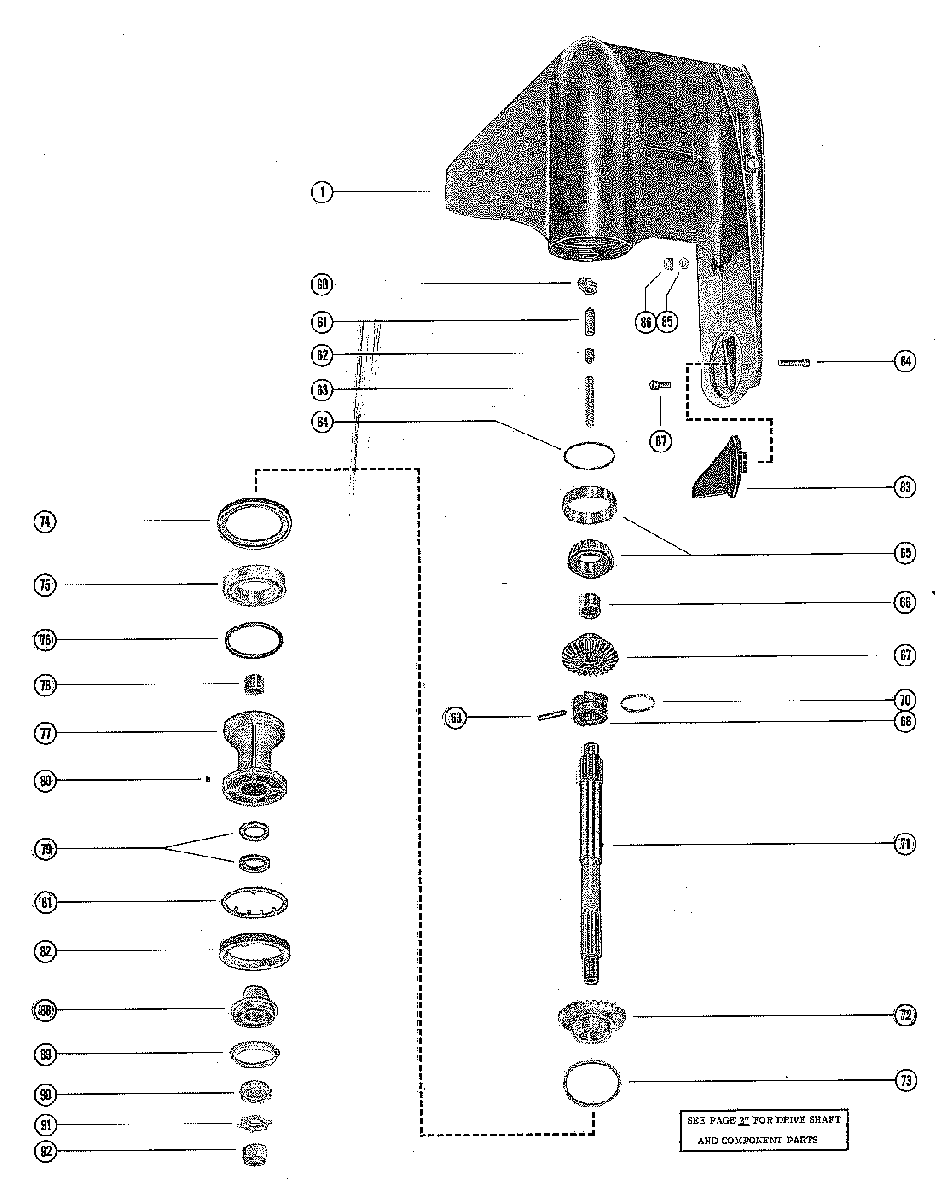

GEAR HOUSING ASSEMBLY, COMPLETE (PAGE 2) для Mercury - 650 (4 CYL.) 2803562 THRU 3293183
-
№АртикулНазвание
-
-1623-7339A2 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SEE NOTE BELOW SERIAL #2803562-#2874263GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SEE NOTE BELOW SERIAL #2803562-#2874263 -
-1655-7333A25 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SEE NOTE BELOW SERIAL #2803562-#2874263GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SEE NOTE BELOW SERIAL #2803562-#2874263 -
-1623-7339A2 GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SEE NOTE BELOW SERIAL #2997339-09999999GEAR HOUSING ASSEMBLY, COMPLETE (SHORT SHAFT)
SEE NOTE BELOW SERIAL #2997339-09999999 -
-1655-7333A25 GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SEE NOTE BELOW SERIAL #2997339-09999999GEAR HOUSING ASSEMBLY, COMPLETE (LONG SHAFT)
SEE NOTE BELOW SERIAL #2997339-09999999 -
11623-5244A14 GEAR HOUSING ASSEMBLY
SEE PAGE 27 FOR BREAKDOWN SERIAL #2803562-#2874263GEAR HOUSING ASSEMBLY
SEE PAGE 27 FOR BREAKDOWN SERIAL #2803562-#2874263 -
11623-6052A4 GEAR HOUSING ASSEMBLY
SEE PAGE 27 FOR BREAKDOWN. SERIAL #2997339-09999999GEAR HOUSING ASSEMBLY
SEE PAGE 27 FOR BREAKDOWN. SERIAL #2997339-09999999 -
60760394 CAM, SHIFTCAM, SHIFT
-
6130625 FOLLOWER, CAMFOLLOWER, CAM
-
6230624 SLIDE, CROSS PINSLIDE, CROSS PIN
-
6324-30622 SPRING, COMPRESSION - CAM FOLLOWERSPRING, COMPRESSION - CAM FOLLOWER
-
6415-30923A1 SHIM, BEARING OUTER RACE TO GEAR HOUSING (. 002-3-5-10)SHIM, BEARING OUTER RACE TO GEAR HOUSING (. 002-3-5-10)
-
6531-30894A1 TAPERED ROLLER BEARING ASSEMBLYTAPERED ROLLER BEARING ASSEMBLY
-
6631-30895T BEARING, ROLLER - FORWARD GEARBEARING, ROLLER - FORWARD GEAR
-
6743-53982A2 FORWARD GEAR ASSEMBLY
SERIAL #2803562-#2874263FORWARD GEAR ASSEMBLY
SERIAL #2803562-#2874263 -
6743-56517T3 FORWARD GEAR ASSEMBLY
SERIAL #2997339-09999999FORWARD GEAR ASSEMBLY
SERIAL #2997339-09999999 -
6852-822539T RATCHET, SLIDING CLUTCHRATCHET, SLIDING CLUTCH
-
6917-8M0100263 PIN, CROSS - RATCHET TO PROPELLER SHAFTPIN, CROSS - RATCHET TO PROPELLER SHAFT
-
7024-30893 SPRING, RETAINING - CROSS PINSPRING, RETAINING - CROSS PIN
-
7144-93003 SHAFT, PROPELLERSHAFT, PROPELLER
-
7243-53983 REVERSE GEAR ASSEMBLY (SERIAL THRU )
SERIAL #2803562-#2874263REVERSE GEAR ASSEMBLY (SERIAL THRU )
SERIAL #2803562-#2874263 -
7243-56516T REVERSE GEAR ASSEMBLY (SERIAL AND UP)
SERIAL #2997339-09999999REVERSE GEAR ASSEMBLY (SERIAL AND UP)
SERIAL #2997339-09999999 -
7315-29955A1 SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)SHIM, THRUST WASHER TO GEAR HOUSING (.002-3-5-10)
-
7412-71143A1 WASHER, THRUST - BEARING CARRIER TO GEAR HOUSINGWASHER, THRUST - BEARING CARRIER TO GEAR HOUSING
-
7530-31265 BEARING, BALL - REVERSE GEARBEARING, BALL - REVERSE GEAR
-
7625-29976 "O" RING, BEARING CARRIER"O" RING, BEARING CARRIER
-
7752132T1 BEARING CARRIER ASSEMBLYBEARING CARRIER ASSEMBLY
-
7831-30956T BEARING, ROLLER - BEARING CARRIERBEARING, ROLLER - BEARING CARRIER
-
7926-76868 OIL SEAL, BEARING CARRIEROIL SEAL, BEARING CARRIER
-
8028-30281 KEY, LOCATING - BEARING CARRIERKEY, LOCATING - BEARING CARRIER
-
8114-52700 TAB WASHER, GEAR HOUSING COVERTAB WASHER, GEAR HOUSING COVER
-
8252699 COVER, GEAR HOUSINGCOVER, GEAR HOUSING
-
8397-31640Q4 TRIM TAB ASSEMBLY, GEAR HOUSINGTRIM TAB ASSEMBLY, GEAR HOUSING
-
8410-66024 SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")SCREW, TRIM TAB TO GEAR HOUSING (1 3/4")
-
8512-45176 WASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSWASHER, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
8611-34933 NUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDSNUT, GEAR HOUSING TO DRIVE SHAFT HOUSING STUDS
-
8710-34353 SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")SCREW, GEAR HOUSING TO DRIVE SHAFT HOUSING (1")
-
8865091Q01 THRUST HUB AND WASHER ASSEMBLYTHRUST HUB AND WASHER ASSEMBLY
-
8912-29590 WASHER, CUPPED - THRUST HUBWASHER, CUPPED - THRUST HUB
-
9012-31211Q03 WASHER, SPLINED - PROPELLER NUTWASHER, SPLINED - PROPELLER NUT
-
9114-816629Q TAB WASHER, PROPELLER NUTTAB WASHER, PROPELLER NUT
-
9211-52707Q1 NUT, PROPELLERNUT, PROPELLER
